Linear Shaft Support Rails and End Stops

PBC Linear offers inch aluminum support rails to provide full-length shaft support of linear shafting. These shaft support rails are undrilled for use with linear shafting.

• Undrilled aluminum support rail in inch sizes from ½” to 3”
• Offered in continuous lengths up to 4 ft

PBC Linear provides aluminum support rails for comprehensive shaft support for linear shafting. The durable aluminum alloy linear shaft support rails are predrilled for use with predrilled linear shafting.

• Predrilled aluminum support rail from ½” to 3”
• Offered in continuous lengths up to 4 ft

The Steel Shaft Aluminum Rail Assembly is a two-piece shaft and support rail assembly consisting of a steel shaft, hardened to a minimum of RC60, attached to a predrilled aluminum support rail for instant bolt-down installation. The shaft rail assembly is ideal for use in applications where high load carrying capacity is essential, and is designed to be used with Simplicity FrelonGOLD® linear plain bearing and ball bearing products.

• Available in inch sizes from ½” thru 3”
• Assemblies offered in continuous shaft lengths up to 180" with segmented support rails

The Ceramic Coated Shaft, Aluminum Rail Assembly is a two-piece shaft and support rail assembly consisting of a hardened steel predrilled shaft attached to a predrilled aluminum support rail. A ceramic-like coating provides hardness up to RC70 and increased corrosion resistance making it optimized for use with Simplicity FrelonGOLD® lined products.

• Available in inch sizes from ½” thru 3”
• Assemblies offered in continuous shaft lengths up to 180" with segmented support rails
• NOT to be used with linear ball bearings

The 440 Stainless Steel Shaft Aluminum Rail Assembly is a two-piece shaft and support rail assembly consisting of a hardened stainless steel predrilled shaft attached to a predrilled aluminum support rail.

• Available in inch sizes from ½” to 3”
• Assemblies offered in continuous shaft lengths up to 180" with segmented support rails

The Ceramic Coated Aluminum Rail Assembly is a one-piece integrated shaft and support rail. Its one-piece integrated design reduces assembly time, complexity, and weight in a single package. Ideal for use in contaminated applications, the ceramic coated aluminum rail assembly offers excellent corrosion resistance and is designed to be used with Simplicity FrelonGOLD® linear plain bearings and pillow blocks.

• Available in inch sizes from ½” to 2”
• Offered in continuous lengths up to 120"
• NOT to be used with linear ball bearings

PBC Linear offers steel low support rail to provide full-length support of linear shafting. The AISI C-1018 steel shaft low support rails are undrilled for use with linear shafting. With a 40% lower profile than other support rails, this is an excellent choice for applications requiring compact, low shaft support.

• Available in inch sizes from ½” to 3”
• Offered in continuous lengths up to 144"

PBC Linear offers low support rails made of steel to fully support linear shafting along its length. These low support rails, constructed from AISI C-1018 steel, come predrilled and are designed for use with pre-drilled linear shafting. With a profile 40% lower than alternative support rails, this option is ideal for applications demanding compact, low shaft support.

• Available in inch sizes from ½” to 3”
• Offered in continuous lengths up to 144"

PBC Linear offers precision case hardened and ground shafting with steel low support rail to provide full-length support of linear shafting. The AISI C-1018 steel shaft low support rails are predrilled for use with predrilled linear shafting.

• Available in sizes from ½” to 3”
• Assemblies offered in continuous shaft lengths up to 180" with segmented support rails

Precision case hardened and ground shaft, plus a steel low support rail, effectively doubles the life of the shaft by allowing it to be turned over for a fresh surface when wear becomes evident. Both sides of the shaft are counterbored so the shaft may be rotated 180°, and rebolted for use on the new side. This guide is sold as a two-piece set; the shaft and support are not assembled. The guide is then bolted down through the top of the shaft to reduce installation time.

• Available in sizes from 5/8” to 2”
• Assemblies offered in continuous shaft lengths up to 180" with segmented support rails

A precision case-hardened and ground shaft, combined with a steel low support rail, effectively extends the shaft's lifespan by enabling it to be flipped over for a new surface when wear occurs. The shaft features counterbores on both sides, allowing it to be rotated 180° and reattached for use on the fresh side. This guide is sold as a two-piece set, with the shaft and support unassembled. Installation time is minimized by bolting the guide down through the top of the shaft.

• Available in sizes from 16 mm to 50 mm
• Assemblies offered in continuous shaft lengths up to 4,673 mm with segmented support rails

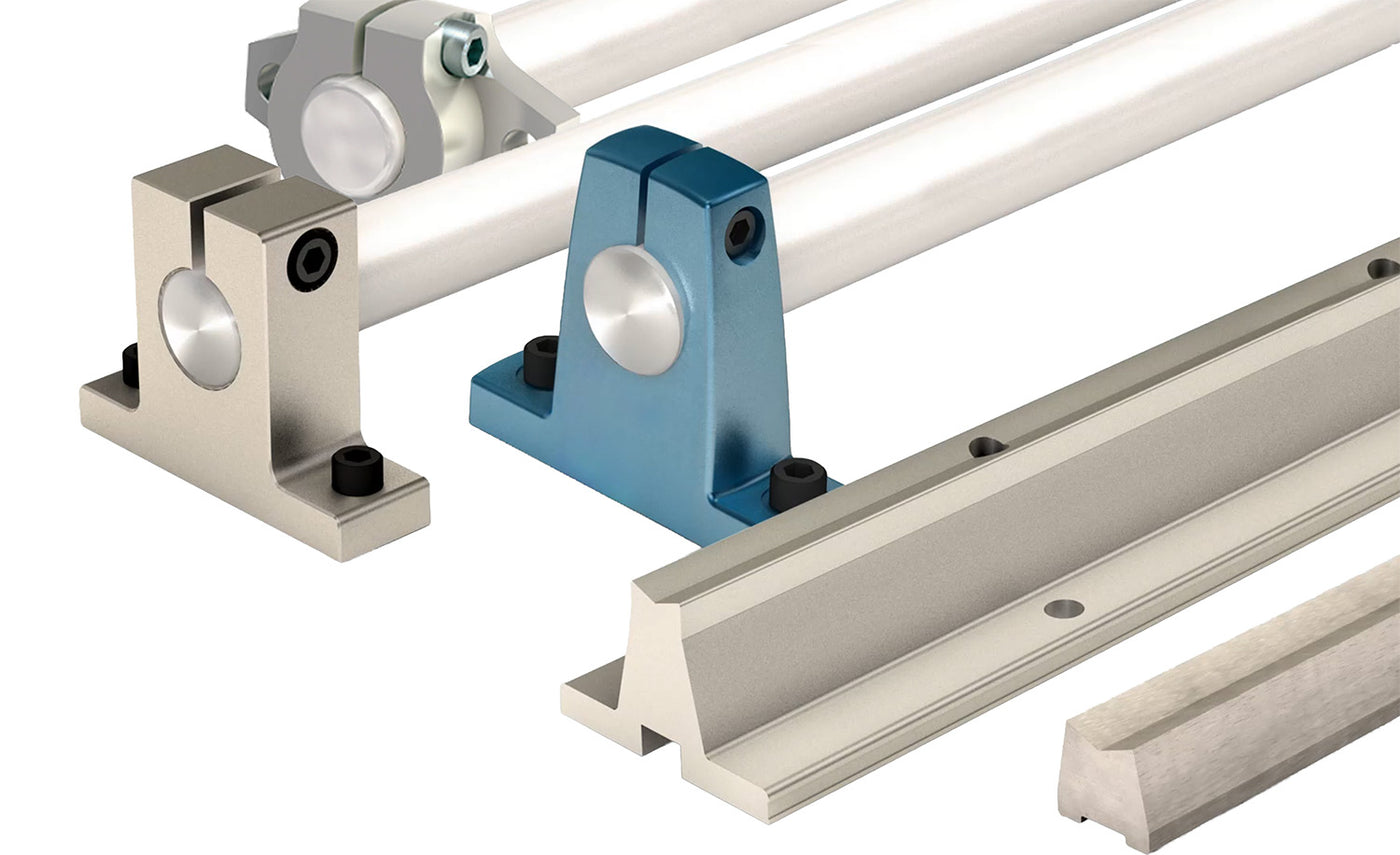

The PBC Linear Aluminum End Support Block (NSB) can be used for end or intermittent shaft support. The aluminum end support block is lightweight and strong, and can be used with all shaft types. Ideally, they should be used where deflection between supports is not a problem.

• Available in inch sizes from 1/4” to 2”
• Instant bolt-down installation

End support blocks provide stable support at the ends or at intermediate points along a shaft. Made from lightweight yet durable aluminum, they are compatible with all shaft types. These end blocks are best suited for applications where shaft deflection between supports is not a concern.
• Available in metric sizes ranging from 8 to 50 mm
• Instant bolt-down installation

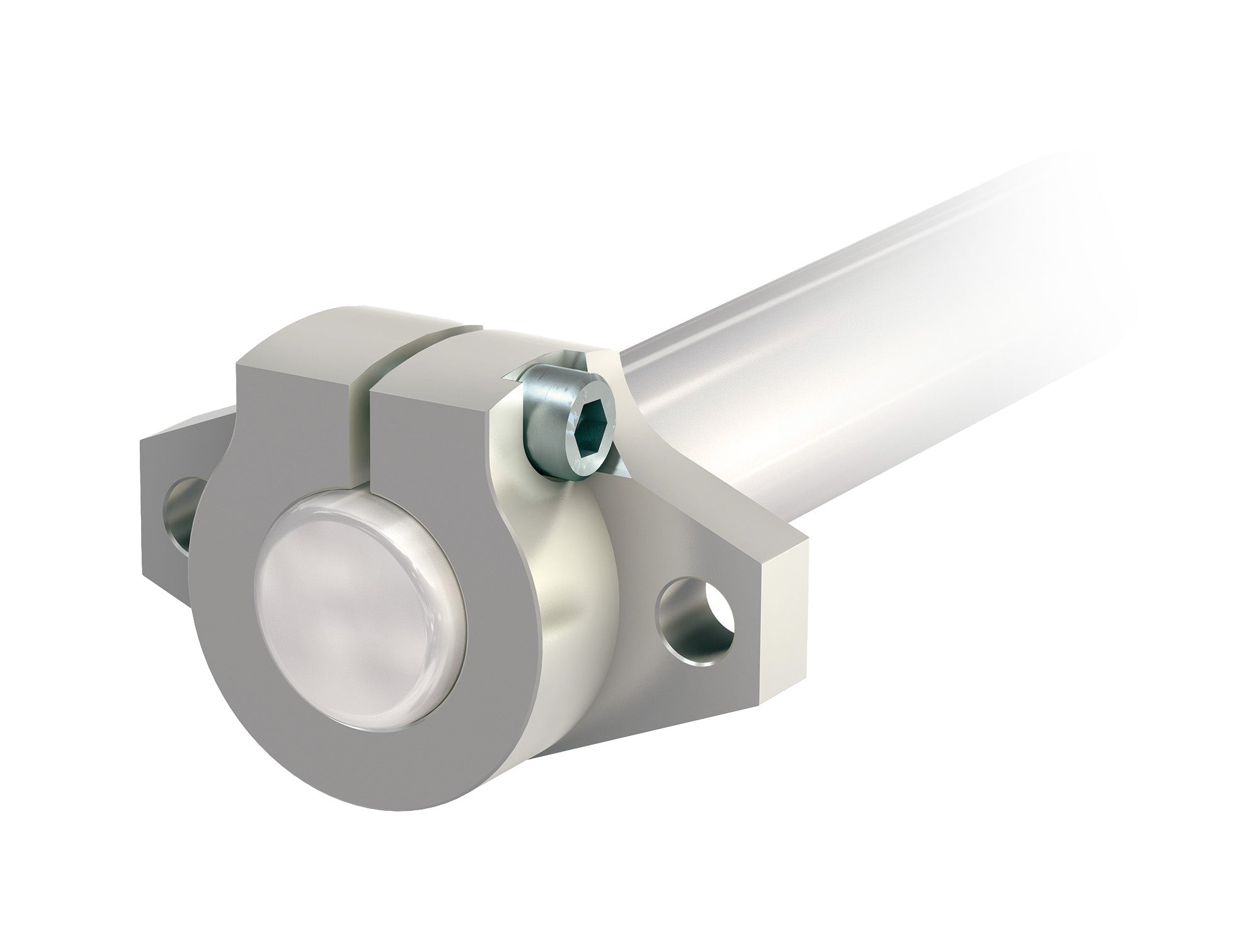

Flanged mount shaft supports help position and secure a linear shaft while preventing both rotational and axial movement. Constructed from lightweight, durable aluminum, they are compatible with all shaft types. These support blocks can also provide overhead clearance when end mounted.
• Available in metric sizes ranging from 8 to 50 mm
• Instant bolt-down installation

The PBC Linear Steel End Support Block (LSB) is versatile, suitable for both end and intermittent shaft support. The steel end support block is rigid, strong, and can be used with all shaft types. It is particularly recommended for applications where deflection between supports is minimal.

• Available in inch sizes from 1/2” to 2”
• Instant bolt-down installation

PBC Linear provides low support rails made of steel to fully support linear shafting along its length. These low support rails, crafted from AISI C-1018 steel, come undrilled and are suitable for use with linear shafting. Featuring a profile 40% lower than alternative support rails, this option is ideal for applications that require compact, low shaft support.

• Available in sizes from 12 mm to 50 mm
• Offered in continuous lengths up to 3,658 mm

PBC Linear provides aluminum support rails for comprehensive support of linear shafting throughout its length. This shaft support rail comes with predrilled holes, facilitating compatibility with predrilled linear shafting.

• Available in sizes from 12 mm to 50 mm
• Offered in continuous lengths up to 1,200 mm

The Steel Shaft Aluminum Rail Assembly comprises a two-piece assembly, featuring a predrilled hardened steel shaft connected to a predrilled aluminum support rail. This assembly is intended for use with Simplicity FrelonGOLD® linear plain bearing products and ball bearing products. The pre-drilled mounting holes provide a convenient solution for easy bolt-down installation.

• Available in sizes from 12 mm to 50 mm
• Assemblies offered in continuous shaft lengths up to 4,572 mm with segmented support rails

The Ceramic Coated Aluminum Rail Assembly is a two-piece assembly comprising a predrilled hardened steel shaft affixed to a predrilled aluminum support rail, facilitating easy mounting. With a ceramic-like coating offering hardness up to RC70 and enhanced corrosion resistance, it is tailored for optimal performance with Simplicity FrelonGOLD® liners.

• Available in sizes from 12 mm to 30 mm
• Assemblies offered in continuous lengths up to 3,505 mm with segmented support rails
• NOT to be used with linear ball bearings

The 440 Stainless Steel Shaft Aluminum Rail Assembly is a two-part assembly including a hardened steel predrilled shaft connected to a predrilled aluminum support rail. Instant bolt-down installation is facilitated by the predrilled mounting holes.

• Available in sizes from 12 mm to 50 mm
• Assemblies offered in continuous shaft lengths up to 3,911 mm with segmented support rails

PBC Linear provides low support rails made of steel to fully support linear shafting along its length. These low support rails, crafted from AISI C-1018 steel, come undrilled and are suitable for use with linear shafting. Featuring a profile 40% lower than alternative support rails, this option is ideal for applications that require compact, low shaft support.

• Available in sizes from 12 mm to 50 mm
• Offered in continuous lengths up to 3,658 mm

PBC Linear provides steel low support rails designed to fully support linear shafting throughout its length. Crafted from AISI C-1018 steel, these low support rails come predrilled and are intended for use with pre-drilled linear shafting. With a profile 40% lower than other support rails, this choice is perfect for applications requiring compact, low shaft support.

• Available in sizes from 12 mm to 50 mm
• Offered in continuous lengths up to 3,658 mm
