Support Rail for 1.5" Linear Shafts - Aluminum SR24-024.000-SL Length: 24"

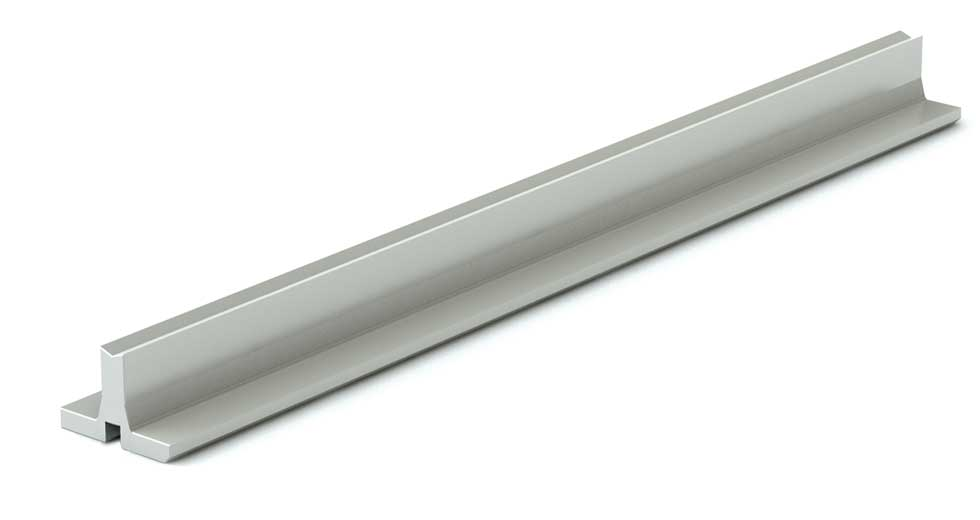

Linear support rail, undrilled, 24" in length and made for a 1.5" diameter linear shaft, sold separately. A support rail is a linear rail on top of which shafts can handle heavy loads without sagging or binding. This solid aluminum rail, made in the USA with advanced cold stamp manufacturing, pairs with shafts on which run open-shelled linear bearings or roller bearing pillow blocks.

  • Linear Support Rail Only - Shafts sold separately
  • Solid - Undrilled; Use PD product number variants for pre-drilled support rails
  • PBC Linear® Quality: Made of cold stamped aluminum in the USA

3D Models

TypeFileFormatLink
3dSR24-024.htmlhtmlView
cadSR24-024.x_tSolidWorks >=2006Download
$154.09
Configure Custom Features
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
5.08 lbs0 in24 in0 in
