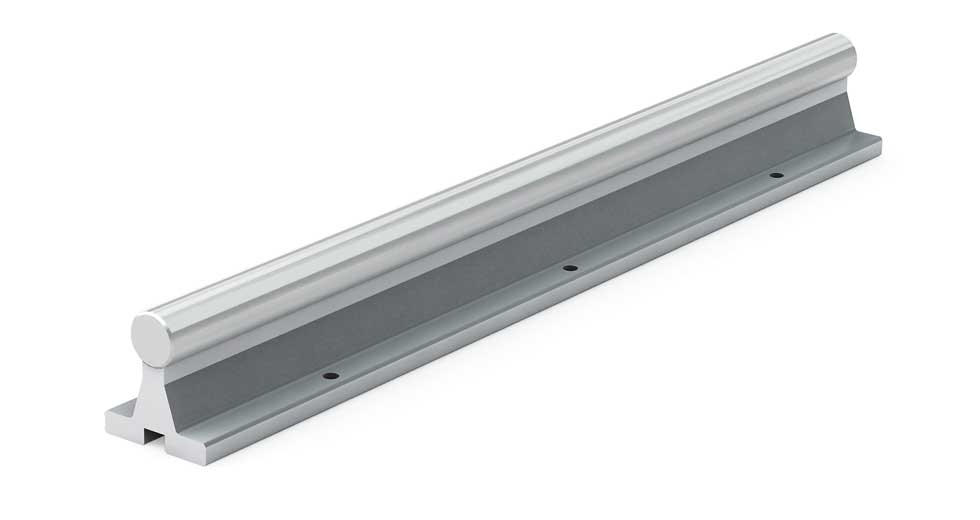

Linear Shaft on Rail - Stainless Steel SRAM16SS-0600-SL Diameter: 16mm Length: 600mm
Linear Shaft made of 440 Stainless Steel and of 16mm diameter, 600mm length with RC 50 Hardness™, fused onto an aluminum alloy linear rail, designed for open bearing variants of Simplicity® self-lubricating plain linear bearings or ball bearings. The linear rail segment is pre-drilled for mounting, while the shaft is undrilled and untapped.
- 440 Stainless Steel shaft with RC 50 Hardness™
- Supports open versions of plain bearings and ball bearings
- Click on "Configure CAD and Quote" below to order custom lengths, non-standard hole spacing, or end-tapping
