Linear Shaft on Rail - Stainless Steel SRA10SS-024.000-SL...

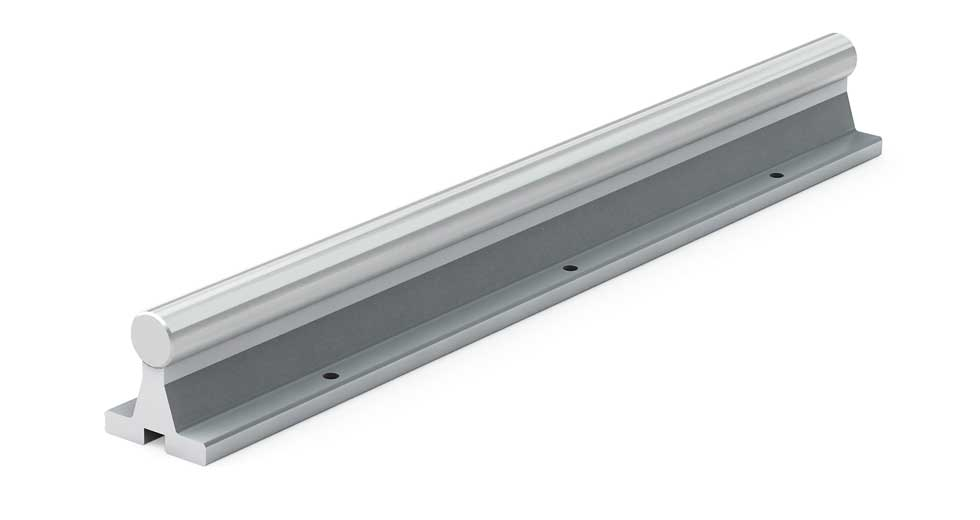

Linear Shaft on Rail - Stainless Steel SRA10SS-024.000-SL Diameter: 5/8" Length: 24"

Linear Shaft made of 440 Stainless Steel and of 5/8" diameter, 24" length with RC 50 Hardness™, fused onto an aluminum alloy linear rail, designed for open bearing variants of Simplicity® self-lubricating plain linear bearings and ball bearings. The linear rail segment is pre-drilled for mounting, while the shaft is undrilled and untapped.

  • 440 Stainless Steel shaft with RC 50 Hardness™
  • Supports open versions of plain bearings and ball bearings
  • Click on "Configure CAD and Quote" below to order custom lengths, non-standard hole spacing, or end-tapping

3D Models

TypeFileFormatLink
3dSRA10SS-024.htmlhtmlView
cadSRA10SS-024.dxfDXFDownload
cadSRA10SS-024.x_tSolidWorks >=2006Download
$315.17
Ask about this product
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
3.55 lbs1.63 in24 in1.44 in
Motion Control in Washdown Applications
Motion Control in Washdown Applications

3D Models

html
3dView
DXF
cadDownload
SolidWorks >=2006
cadDownload
