Linear Support Rail for 3" Shafts - Aluminum SR48-0...

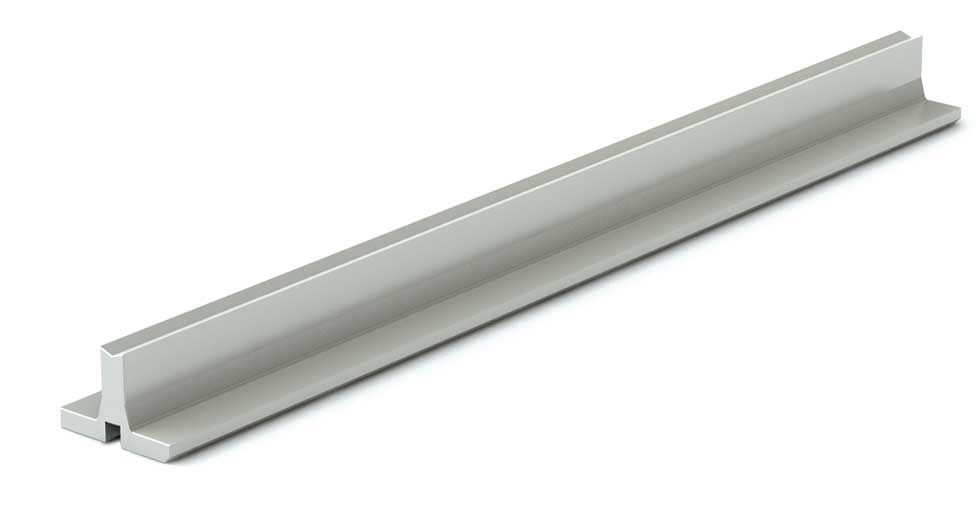

Linear Support Rail for 3" Shafts - Aluminum SR48-048.000-SL Length: 48"

Linear support rail, undrilled, 48" in length and made for a 3" diameter linear shaft, sold separately. A support rail is a linear rail on top of which shafts can handle heavy loads without sagging or binding. This solid aluminum rail, made in the USA with advanced cold stamp manufacturing, pairs with shafts on which run open-shelled linear bearings or roller bearing pillow blocks.

  • Support Rail Only - Linear shafts sold separately
  • Solid - Undrilled; Use PD product number variants for pre-drilled support rails
  • PBC Linear® Quality: Made of cold stamped aluminum in the USA

3D Models

TypeFileFormatLink
3dSR48-048.htmlhtmlView
cadSR48-048.x_tSolidWorks >=2006Download
$836.09
Ask about this product
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
31.29 lbs6 in48 in5.5 in
