Low Profile Support Rail for 1/2" Shafts - LSR08-024...

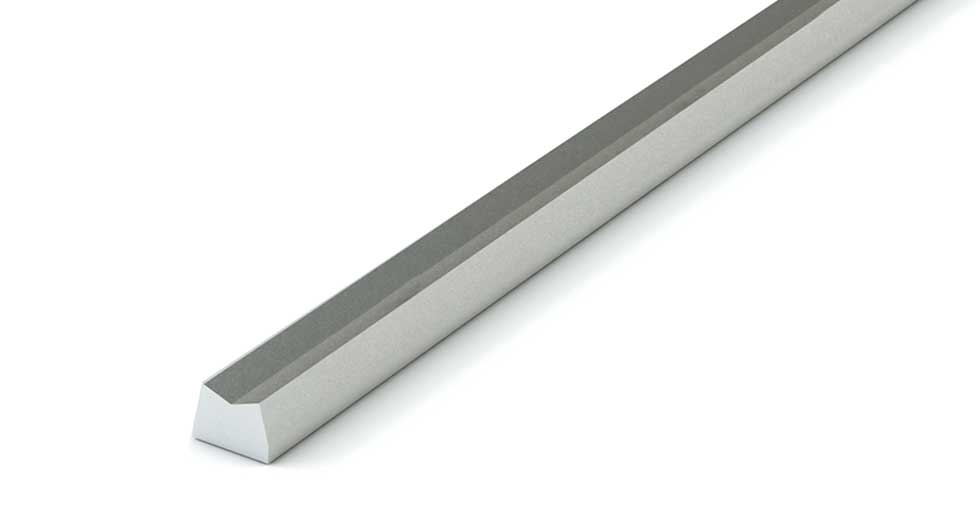

Low Profile Support Rail for 1/2" Shafts - LSR08-024.000-SL Carbon Steel Length: 24"

Low Profile Steel Support Rail of 24" length, made for 1/2" diameter linear shafts sold separately, undrilled and crafted from AISI C-1018 carbon steel with high strength and ductility. Features a 40% lower profile than standard rails. The pre-drilled variant has a PD in the part number. Consult Configuration CAD & Quote for custom lengths.
  • Solid - the pre-drilled version has a PD in the part number
  • AISI C-1018 Carbon Steel (0.18% carbon w/ high strength and ductility)
  • Consult Configuration CAD & Quote below for custom lengths

3D Models

TypeFileFormatLink
3dLSR08-024.htmlhtmlView
cadLSR08-024.stepSTEP AP214Download
$19.04
Ask about this product
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
0.25 lbs0 in24 in0 in
