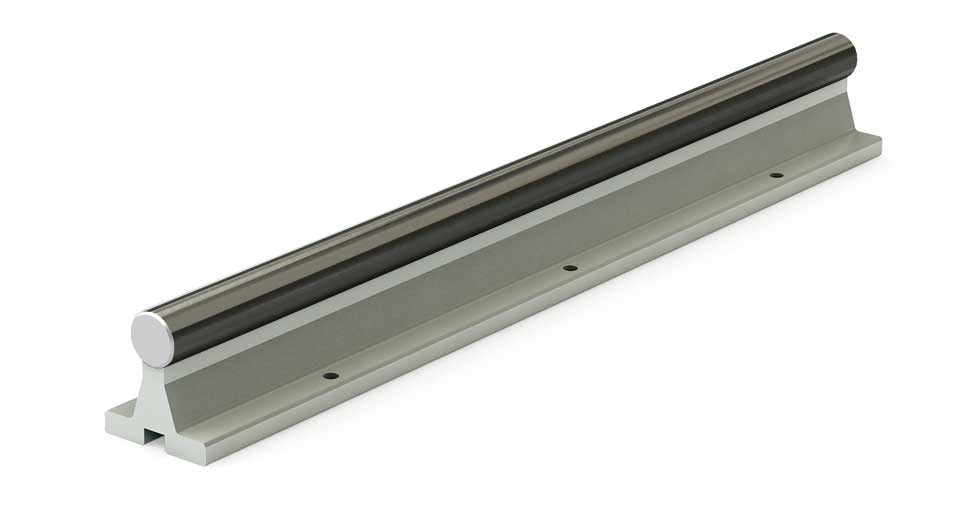

Linear Shaft on Rail - Ceramic-Coated Aluminum SRA08CC-012.000-SL Diameter: 1/2″ Length: 12″
Ceramic Coated Aluminum Linear Shaft with a 1/2″ diameter and 12″ length, fused onto an Aluminum Alloy Linear Rail. The shaft is feather-weight yet strong, boasting RC70 hardness, superior corrosion resistance, non-magnetic properties, vibration resistance, and immunity to splatter, paints, and contaminants. Use open bearing variants of Simplicity® self-lubricating plain slide linear bearings and other plain bearings. The linear rail segment is pre-drilled for mounting, while the shaft remains undrilled and untapped.
- Click ″Configure CAD and Quote″ below for custom lengths, non-standard drilled hole spacing & end-tapping (optional threaded hole bored at one or both ends)
- Ceramic-coated featherweight aluminum alloy shaft with hardness up to RC70
- Optimized for plain slide linear bearings with self-lubricating FrelonGOLD® liners
- Non-magnetic and vibration resistant
- Weld splatter, paints, and contaminants will not stick
- ONLY use with open (not closed) plain linear slide bearings, not ball bearings nor roller bearings
