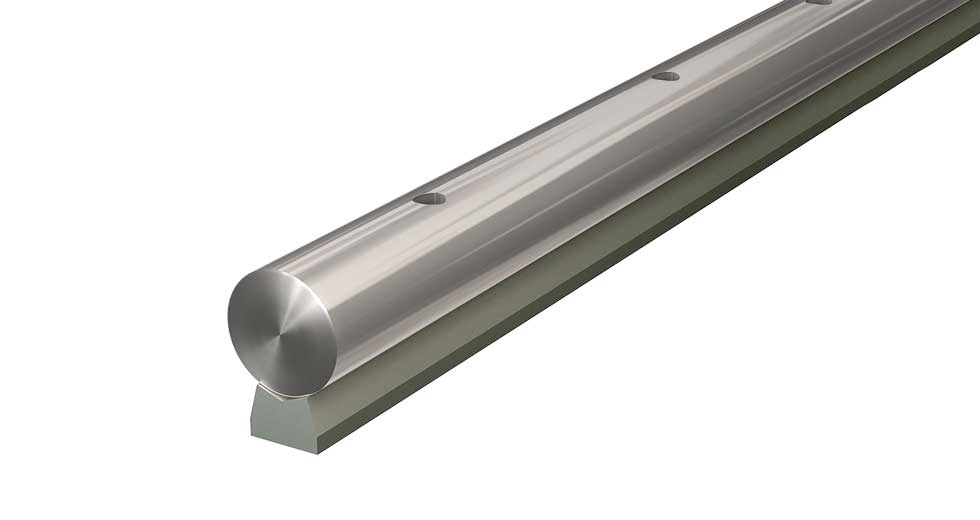

Linear Shaft and Low Support Rail - Carbon Steel LSG16-012.000-SL Diameter: 1" Length: 12"

Carbon Steel Shaft, 1" diameter, 12" length, precision case hardened and ground, paired with a matching low-profile LSR steel support rail, both bored for mounting. This two-piece assembly includes a separate shaft and rail, designed for quick installation by bolting together. Extend the shaft’s lifespan by rotating it 180° when wear appears, utilizing the counterbored sides for rebolting to a fresh surface.

Part Number LSG16-012-000-SL
Diameter 1"
Material 1060 CS
Length 12"
Pre-Drilled Yes, with 6" hole spacing, beginning 3" from shaft end

3D Models

TypeFileFormatLink
3dLSG16-012.htmlhtmlView
cadLSG16-012.x_tSolidWorks >=2006Download
$0.00
Configure Custom Features
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
3.11 lbs1 in12 in1.5 in
