Linear Ball Bearings & Bushings

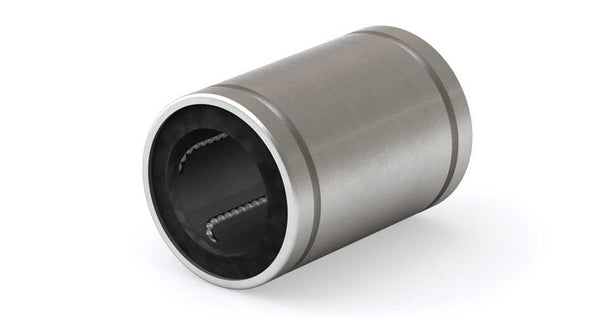

This is the closed, imperial (inch) version of our steel Linear Ball Bearing.

• ID sizes range from 1/4" to 2”
• Static Load Capacities up to 1,784 lb (7,900 N)
• Dynamic Load Capacities up to 858 lb (3,800 N)

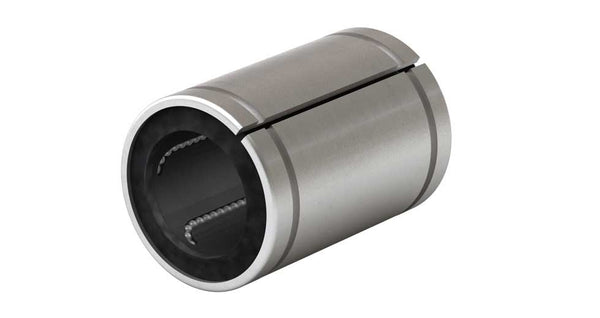

This is the closed and adjustable, imperial (inch) version of our steel linear ball bearing.

• ID sizes range from 1/2" to 2”
• Static Load Capacities up to 1,700 lb (7,900 N)
• Dynamic Load Capacities up to 850 lb (3,800 N)

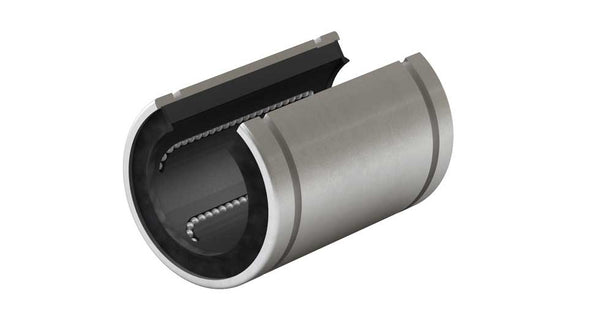

This is the standard, open version of our linear ball bearing line.

• ID sizes range from 1/2" to 2”
• Static Load Capacities up to 1784 lb (7,900 N)
• Dynamic Load Capacities up to 858 lb (3,800 N)

This is the closed, ISO Metric version of our steel linear ball bearing.

• ID sizes range from 5 mm to 50 mm
• Static Load Capacities up to 7930 N (1,700 lb)
• Dynamic Load Capacities up to 3820 N (850 lb)

This is the ISO Metric version of our adjustable linear ball bearing.

• ID sizes range from 12 mm to 50 mm
• Static Load Capacities up to 7,930 N (1700 lb)
• Dynamic Load Capacities up to 3,820 N (850 lb)

This round shaft linear ball bearing is the open, ISO Metric version.

• ID sizes range from 12 mm to 50 mm
• Static Load Capacities up to 7,930 N (1,700 lb)
• Dynamic Load Capacities up to 3,820 N (850 lb)

This round shaft linear ball bearing is the closed, ISO Metric version.

• ID sizes range from 16 mm to 50 mm
• Static Load Capacities up to 6762 N
• Dynamic Load Capacities up to 13720 N

This round shaft linear ball bearing is the open, ISO Metric version. This bearing has unique floating steel plates in it which allow it to rock inside the housing, compensating for any misalignment within the application.

• ID sizes range from 16 mm to 50 mm
• Static Load Capacities up to 6,860 N
• Dynamic Load Capacities up to 13,857 N

This linear ball bearing is the closed, JIS Metric version.

• ID sizes range from 8 mm to 50 mm
• Static Load Capacities up to 7,930 N (1,700 lb)
• Dynamic Load Capacities up to 3,820 N (850 lb)

This steel linear ball bearing is the JIS Metric version of the adjustable linear bearing.

• ID sizes range from 12 mm to 50 mm
• Static Load Capacities up to 7930 N (1700 lb)
• Dynamic Load Capacities up to 3820 N (850 lb)

This is the JIS Metric open version of the linear ball bearing product line.

• ID sizes range from 12 mm to 50 mm
• Static Load Capacities up to 7,900 N (1,700 lb)
• Dynamic Load Capacities up to 3,800 N (850 lb)

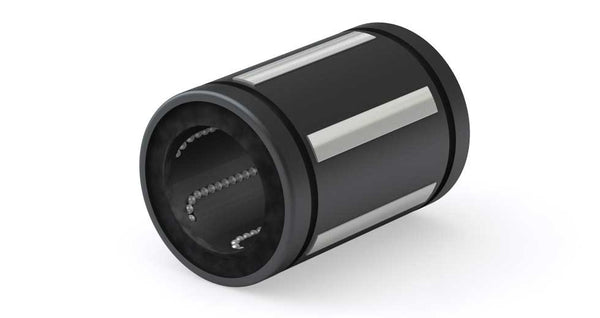

This is the closed, self-aligning imperial (inch) version of our linear ball bearing collection. It has unique floating steel plates in it which allow it to rock inside the housing, compensating for any misalignment within the application.

• ID sizes range from 1/4" to 2”
• Static Load Capacities up to 2165 lb (13,300 N)
• Dynamic Load Capacities up to 2430 lb (10,600 N)

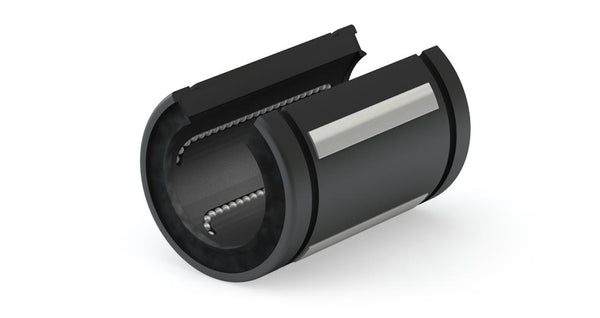

This is the open, self-aligning imperial (inch) version of our linear ball bearing collection. This linear ball bearing has unique floating steel plates in it which allow it to rock inside the housing, compensating for any misalignment within the application.

• ID sizes range from 1/2" to 2”
• Static Load Capacities up to 2,165 lb (11,000 N)
• Dynamic Load Capacities up to 2,430 lb (9,700 N)

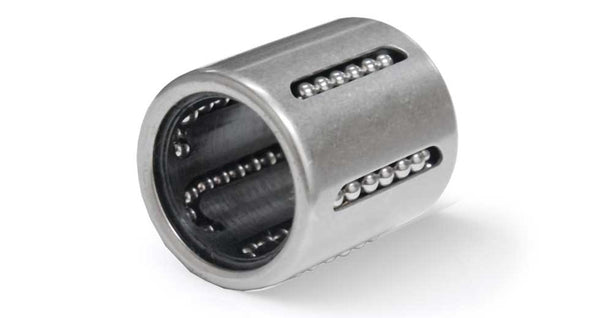

This is the closed, compact thin wall ISO Metric version of our linear ball bearings.

• ID sizes range from 6 mm to 50 mm
• Static Load Capacities up to 6,300 N (1,400 lb)
• Dynamic Load Capacities up to 5,500 N (1,200 lb)

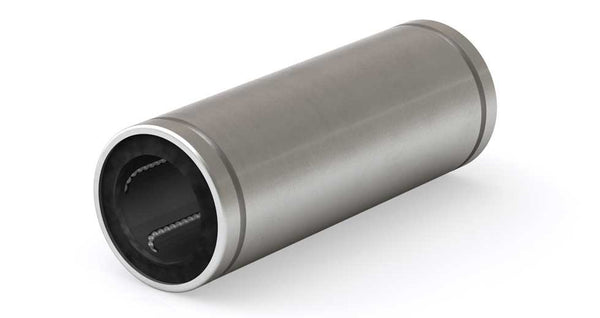

This is the closed, double length imperial (inch) linear ball bearing.

• ID sizes range from 1/4" to 2”
• Static Load Capacities up to 3,500 lb (15,900 N)
• Dynamic Load Capacities up to 1,366 lb (6,000 N)
• Static Moment Capacities up to 290 ft-lb (399 Nm)

This is the closed, double length ISO Metric version of our steel linear ball bearing.

• ID sizes range from 8 mm to 50 mm
• Static Load Capacities up to 15,900 N (3,500 lb)
• Dynamic Load Capacities up to 6,080 N (1,300 lb)
• Static Moment Capacities up to 399 Nm (290 ft-lb)

This is the closed, double length JIS Metric version of our steel linear ball bearings.

• ID sizes range from 8 mm to 50 mm
• Static Load Capacities up to 15,900 N (3,500 lb)
• Dynamic Load Capacities up to 6,080 N (1,300 lb)
• Static Moment Capacities up to 399 Nm (290 ft-lb)
