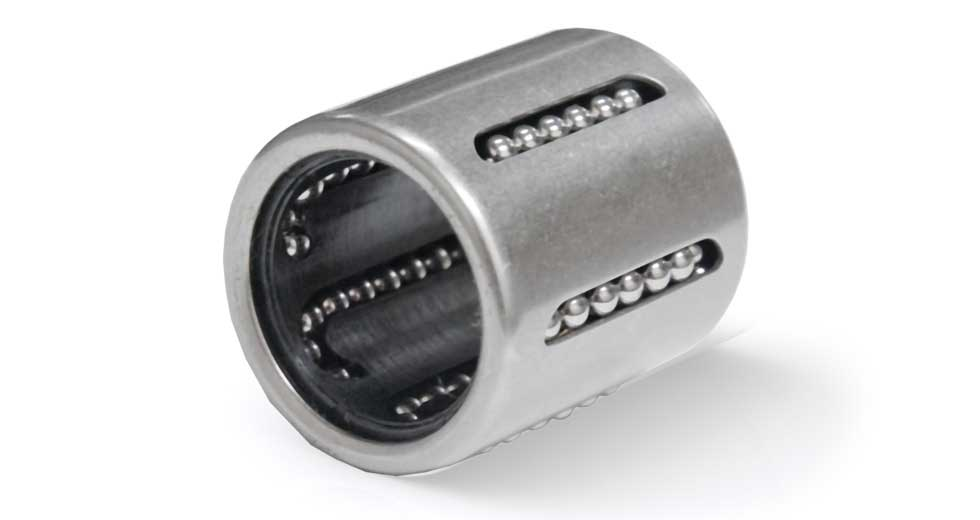

Thin Wall Linear Ball Bearing KHP12 12mm ISO Metric
Thin-walled linear ball bearing, 12mm ID, 19mm OD and 28mm length, with a closed design for compact linear motion systems where radial space is limited. Recirculating balls run within a slim heat-treated alloy steel shell, while a polymer resin retainer guides the balls and helps reduce operating noise and friction. The ISO metric bearing has a dynamic load capacity of 620 N. Use with Simplicity 60 Plus™ carbon steel or compatible hardened 440 stainless steel round shafting. It is not available in open or adjustable configurations and is not intended for 316 stainless steel or ceramic-coated aluminum shafts.
- Closed thin-wall linear ball bushing
- 12mm ID × 19mm OD × 28mm length
- Dynamic load capacity: 620 N
- Heat-treated alloy steel shell with polymer resin retainer
- Recirculating ball design for low-friction linear travel
- Slim profile conserves radial space in compact housings
- Use with Simplicity 60 Plus™ or compatible hardened 440 stainless steel shafting
- Closed configuration only — not available open or adjustable
- Not intended for 316 stainless steel or ceramic-coated aluminum shafting
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | KHP12.x_t | SolidWorks >=2006 | Download |
