Linear Bearings
Linear Ball Bearings

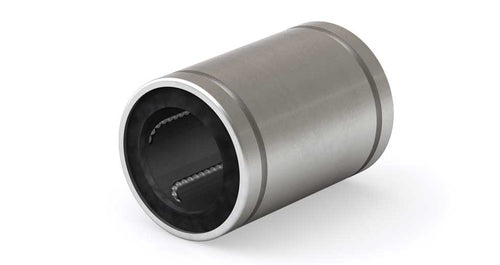

Linear Ball Bearing

Linear Ball Bearings

Linear ball bearings are rolling-element bearings that use recirculating hardened steel balls to move and accurately position loads along round shafts with low friction at high speeds. Unlike plain linear bearings that rely on sliding contact, linear ball bearings support longer strokes and cantilevered loads without the 2:1 binding ratio limitation of plain bearings.

PBC Linear ball bearings feature heat-treated alloy steel outer shells for durability, precision steel balls for low-friction travel, and molded polymer resin retainers that guide ball recirculation while reducing operating noise. Standard double seals help retain lubrication and protect the internal rolling elements from contaminants. The bearings provide straight-line motion along round shafts with one translational degree of freedom when properly constrained against rotation.

Compared with self-lubricating plain bearings, linear ball bearings require periodic lubrication and greater protection from dust, debris, shock, and vibration. Their rolling-element construction makes them particularly suitable for automation, packaging, material handling, and positioning systems requiring high speeds, repeatable movement, and support for cantilevered loads.

Available in closed, open, adjustable, self-aligning, flanged, pillow block, and double-wide configurations, PBC Linear ball bearings are dimensionally interchangeable with industry standards and cover inch sizes from 1/4 in. to 2 in. ID and metric sizes from 8 mm to 50 mm ID. Static load capacities reach up to 3,500 lb. (15,900 N) and dynamic load capacities up to 1,300 lb. (6,000 N), with operating temperatures from -4°F to 176°F (-20°C to 80°C).

More About Linear Ball Bearings

Ways to Order

Configure Get A Quote
Catalog Preview
Web Catalog Web Catalog Download PDF Download PDF Video Video Features Features

Browse Categories

Linear Ball Bearing - Bushing

Linear Ball Bushings

137 Products
Flanged Linear Ball Bearing

Flanged Linear Ball Bearings

114 Products
Linear Ball Bearing Pillow Block

Linear Ball Bearing Pillow Blocks

75 Products
326 products
IP04G 1/4" Linear Ball Bearing

Linear Ball Bearing IP04G 1/4" Closed

$12.78

Linear Ball Bearing IP04G 1/4" Closed

$12.78
Linear ball bearing, closed, with a 1/4" inner diameter (ID). Its ball bearing design provides high speed linear motion with a low coefficient of friction and offers an advantage in cantilevered applications where plain bearings may be limited by the 2:1 binding rule. The heat-treated alloy steel shell provides durability,..
$12.78
IP12G 3/4" Linear Ball Bearing Inch Series Closed , Polymer Cage Standard Width

Linear Ball Bearing IP12G 3/4" Closed

$17.37

Linear Ball Bearing IP12G 3/4" Closed

$17.37
Linear ball bearing, closed, with a 3/4" inner diameter (ID). Its ball bearing design provides high speed linear motion with a low coefficient of friction and offers an advantage in cantilevered applications where plain bearings may be limited by the 2:1 binding rule. The heat-treated alloy steel shell provides durability,..
$17.37
JP20G 20mm JIS Metric Linear Ball Bearing - Polymer Cage

Linear Ball Bearing JP20G 20mm JIS Metric Closed

$21.30

Linear Ball Bearing JP20G 20mm JIS Metric Closed

$21.30
Linear ball bearing, closed shell, with a 20mm ID JIS Metric, featuring a standard-sized heat-treated alloy steel shell that enhances durability and load capacity. Recommended over plain bearings in cantilevered applications as the 2:1 binding rule does not apply. Double seals add protection, a low coefficient of friction enables higher..
$21.30
EP20G-OP 20mm Ball Bearing ISO Metric Open , Polymer Cage Standard Width

Linear Ball Bearing - EP20G-OP 20mm Open

$28.59

Linear Ball Bearing - EP20G-OP 20mm Open

$28.59
Linear ball bearing, open, with a 20mm ID (inner diameter). Featuring a heat-treated alloy steel shell for durability, a resin retainer polymer cage for reduced noise and a low coefficient of friction for speed. Handles cantilevered loads better than plain bearings, overcoming the 2:1 binding ratio limitation of plain bearings...
$28.59
IP16G 1.00" Linear Ball Bearing Inch Series Closed , Polymer Cage Standard Width

Linear Ball Bearing IP16G 1.00" Closed

$31.78

Linear Ball Bearing IP16G 1.00" Closed

$31.78
Linear ball bearing, closed, with a 1" inner diameter (ID). Its ball bearing design provides high speed linear motion with a low coefficient of friction and offers an advantage in cantilevered applications where plain bearings may be limited by the 2:1 binding rule. The heat-treated alloy steel shell provides durability,..
$31.78
IP08G 1/2" Linear Ball Bearing Inch Series Closed , Polymer Cage Standard Width

Linear Ball Bearing IP08G 1/2" Closed

$14.42

Linear Ball Bearing IP08G 1/2" Closed

$14.42
Linear ball bearing, closed, with a 1/2" inner diameter (ID). Its ball bearing design provides high speed linear motion with a low coefficient of friction and offers an advantage in cantilevered applications where plain bearings may be limited by the 2:1 binding rule. The heat-treated alloy steel shell provides durability,..
$14.42
IPS08 1/2" Self Aligning Inch Ball Bearing Closed , Standard Width

Linear Ball Bearing IPS08 1/2" Self Aligning Closed

$24.80

Linear Ball Bearing IPS08 1/2" Self Aligning Closed

$24.80
Closed linear ball bearing with a 1/2" ID, self-aligning, featuring a heat-treated alloy steel shell and resin retainer for reduced noise. It offers a low coefficient of friction, includes double seals at no extra cost, and operates from -4°F to 176°F (-20°C to 80°C). Variants available in sizes from 1/4"..
$24.80
IPS06 3/8" Self Aligning Inch Ball Bearing Closed , Standard Width

Linear Ball Bearing IPS06 3/8" Self Aligning Closed

$23.09

Linear Ball Bearing IPS06 3/8" Self Aligning Closed

$23.09
Closed linear ball bearing with a 3/8" ID, self-aligning, featuring a heat-treated alloy steel shell and resin retainer for reduced noise. It offers a low coefficient of friction, includes double seals at no extra cost, and operates from -4°F to 176°F (-20°C to 80°C). Variants available in sizes from 1/4"..
$23.09
Linear Ball Bearing EP25G 25mm Ball Bearing ISO Metric Closed , Polymer Cage

Linear Ball Bearing - EP25G 25mm Closed

$31.12

Linear Ball Bearing - EP25G 25mm Closed

$31.12
Closed Linear Ball Bearing with a 25mm ID (inner diameter). Heat treated allow steel shell for durability, low coefficient of friction for speed and resin retainer for quiet motion. ISO Metric Series - Closed shell for end-supported shafts Handles cantilevered loads better than plain bearings Temperature Range: -4/+176°F (-20/+80°C) Variant..
$31.12
JPK12GW 12mm JIS Metric Ball Bearing Closed Square Flange, Polymer Cage Double Wide

Double Linear Ball Bearing - Square Flanged JPK12GW 12mm JIS Metric, End Mount

$31.25

Double Linear Ball Bearing - Square Flanged JPK12GW 12mm JIS Metric, End Mount

$31.25
Twin linear ball bearing with JIS 12mm ID, square flanged end-mount housing, heat-treated alloy steel shell, quiet resin retainer polymer cage, and double seals included as standard. Built to Japanese Industrial Standards, the recirculating ball design provides low-friction, high-speed linear motion and can outperform plain bearings in cantilevered applications where..
$31.25
Pillow Block Bearing - Ball Bearing Open Inch - IPPN16G 1.00"

Linear Ball Bearing Pillow Block IPPN16G 1.0" Open

$129.84

Linear Ball Bearing Pillow Block IPPN16G 1.0" Open

$129.84
Linear ball bearing pillow block, open-shelled, with a 1" ID standard-size linear ball bearing mounted inside an aluminum alloy housing. The open design allows use with fully supported round shafts and support rails, providing greater system rigidity than an end-supported shaft arrangement. A heat-treated alloy steel bearing shell, recirculating precision..
$129.84
EPK16G 16mm Ball Bearing ISO Metric Closed Square Flange, Polymer Cage Standard Width

Linear Ball Bearing - Square Flange EPK16G 16mm

$25.87

Linear Ball Bearing - Square Flange EPK16G 16mm

$25.87
Square-flanged linear ball bearing, 16mm ID ISO metric, standard-sized, end mount, with a closed heat-treated alloy steel shell for durability on end-supported shafts. The square flange provides secure four-bolt mounting, while recirculating hardened steel balls and a low coefficient of friction support smooth, high-speed travel. A resin retainer polymer cage..
$25.87
IP08GW 1/2" Linear Ball Bearing Inch Series Closed , Polymer Cage Double Wide

Linear Ball Bearing IP08GW 1/2" Closed Double Wide

$32.67

Linear Ball Bearing IP08GW 1/2" Closed Double Wide

$32.67
Double linear ball bearing, closed, with a 1/2" inner diameter (ID). The twin-size format equals two standard linear ball bearings mounted back-to-back for added stability. Its ball bearing design provides a low coefficient of friction and offers an advantage in cantilevered applications where plain bearings may be limited by the..
$32.67
IP06G 3/8" Linear Ball Bearing Inch Series Closed , Polymer Cage Standard Width

Linear Ball Bearing IP06G 3/8" Closed

$13.84

Linear Ball Bearing IP06G 3/8" Closed

$13.84
Linear ball bearing, closed, with a 3/8" inner diameter (ID). Its ball bearing design provides high speed linear motion with a low coefficient of friction and offers an advantage in cantilevered applications where plain bearings may be limited by the 2:1 binding rule. The heat-treated alloy steel shell provides durability,..
$13.84
Pillow Block Bearing - Ball Bearing Closed Inch - IPP24G 1.50"

Linear Ball Bearing Pillow Block IPP24G 1.50" Closed

$193.28

Linear Ball Bearing Pillow Block IPP24G 1.50" Closed

$193.28
Linear ball bearing pillow block, closed-shelled, with a 1.5" ID standard-size linear ball bearing mounted inside an aluminum alloy housing. The closed design is intended for end-supported round shafts. A heat-treated alloy steel bearing shell, recirculating hardened steel balls, and a resin retainer provide durable, low-friction motion with reduced operating..
$193.28
Pillow Block Bearing - Ball Bearing Closed ISO Metric - EPPM25G 25mm

Linear Ball Bearing Pillow Block EPPM25G 25mm Closed

$98.48

Linear Ball Bearing Pillow Block EPPM25G 25mm Closed

$98.48
Linear ball bearing pillow block with a 25mm standard-size, closed-shelled bearing mounted inside an aluminum alloy housing. Designed for end-supported round shafts, the bearing uses a heat-treated alloy steel shell, recirculating hardened steel balls, and a resin retainer for durable, low-friction motion with reduced operating noise. Linear ball bearings are..
$98.48
IPS04 1/4" Self Aligning Inch Ball Bearing Closed , Standard Width

Linear Ball Bearing IPS04 1/4" Self Aligning Closed

$22.57

Linear Ball Bearing IPS04 1/4" Self Aligning Closed

$22.57
Closed linear ball bearing with a 1/4" ID, self-aligning, featuring a heat-treated alloy steel shell and resin retainer for reduced noise. It offers a low coefficient of friction, includes double seals at no extra cost, and operates from -4°F to 176°F (-20°C to 80°C). Variants available in sizes from 1/4"..
$22.57
IP20G 1.25" Linear Ball Bearing Inch Series Closed , Polymer Cage Standard Width

Linear Ball Bearing IP20G 1.25" Closed

$53.10

Linear Ball Bearing IP20G 1.25" Closed

$53.10
Linear ball bearing, closed, with a 1.25" inner diameter (ID). Its ball bearing design provides high speed linear motion with a low coefficient of friction and offers an advantage in cantilevered applications where plain bearings may be limited by the 2:1 binding rule. The heat-treated alloy steel shell provides durability,..
$53.10
KHP20 20mm Thin Wall Ball Bearing

Thin Wall Linear Ball Bearing KHP20 20mm ISO Metric

$20.77

Thin Wall Linear Ball Bearing KHP20 20mm ISO Metric

$20.77
Thin-walled linear ball bearing, 20 mm ID, 28 mm OD and 30 mm length, with a closed design for compact linear motion systems where radial space is limited. Recirculating balls run within a slim heat-treated alloy steel shell, while a polymer resin retainer guides the balls and helps reduce operating..
$20.77
Pillow Block Bearing - Ball Bearing Twin Open Inch - IPPWN16G 1.00"

Twin Linear Ball Bearing Pillow Block IPPWN16G 1.0" Open

$202.29

Twin Linear Ball Bearing Pillow Block IPPWN16G 1.0" Open

$202.29
Linear ball bearing pillow block with two inserted 1" ID open-shelled standard-size bearings mounted back to back inside an aluminum alloy housing. The twin configuration increases the bearing span for greater load support and stability, while the open design allows use with rail-supported round shafts and profiled linear rails. Heat-treated..
$202.29
326 products

Linear Ball Bearings

326 products

Linear ball bearings are rolling-element bearings that use recirculating hardened steel balls to move and accurately position loads along round shafts with low friction at high speeds. Unlike plain linear bearings that rely on sliding contact, linear ball bearings support longer strokes and cantilevered loads without the 2:1 binding ratio limitation of plain bearings.

PBC Linear's linear ball bearings feature heat-treated alloy steel outer shells for durability, precision steel balls for low-friction travel, and molded polymer resin retainers that guide ball recirculation while reducing operating noise. Standard double seals help retain lubrication and protect the internal rolling elements from contaminants. The bearings provide straight-line motion along round shafts with one translational degree of freedom when properly constrained against rotation.

Compared with self-lubricating plain bearings, linear ball bearings require periodic lubrication and greater protection from dust, debris, shock, and vibration. Their rolling-element construction makes them particularly suitable for automation, packaging, material handling, and positioning systems requiring high speeds, repeatable movement, and support for cantilevered loads.

Available in closed, open, adjustable, self-aligning, flanged, pillow block, and double-wide configurations, PBC Linear ball bearings are dimensionally interchangeable with industry standards and cover inch sizes from 1/4 in. to 2 in. ID and metric sizes from 8 mm to 50 mm ID. Static load capacities reach up to 3,500 lb. (15,900 N) and dynamic load capacities up to 1,300 lb. (6,000 N), with operating temperatures from -4°F to 176°F (-20°C to 80°C).

Standard Linear Ball Bearings

Linear Ball Bearings from PBC Linear provide unmatched performance in linear motion with compatibility for industry standards. These bearings feature durable, heat-treated alloy steel shells and resin retainers for quieter operation and reduced friction.

Feature Specification
Temperature Range -4°F to +176°F (-20°C to +80°C)
Material Heat-treated alloy steel shells
Designs Wide range including double wide and thin wall
Styles Closed Open Double Wide Thin Wall


Linear Ball Bearing Flange Mounts

Designed for compact and efficient installation, Linear Ball Bearing Flange Mounts excel in high-speed applications. These mounts offer outstanding load capacities and low friction for enhanced performance.

Feature Specification
Inner Diameter Range 8 mm to 50 mm
Static Load Capacity Up to 15,900 N
Dynamic Load Capacity Up to 6,080 N
Designs Double wide options available
Styles Round Square Round Center Mount Square Center Mount Double Wide


Linear Ball Bearing Pillow Blocks

Linear Ball Bearing Pillow Blocks are designed for versatile mechanical applications, featuring aluminum alloy housings and ball bearing inserts for stability and efficiency. These blocks accommodate high loads while minimizing friction.

Feature Specification
Static Load Capacity Up to 7,900 N (1,700 lb)
Dynamic Load Capacity Up to 3,800 N (850 lb)
Designs Open and closed configurations
Styles Closed Single Closed Twin Open Single Open Twin

Frequently Asked Questions

When should I use linear ball bearings?
Use linear ball bearings when you need smooth, high-speed linear motion with minimal friction and good performance under overhung or cantilevered loads.
What are the main practical use differences between plain linear bearings and linear ball bearings?
Linear ball bearings differ from plain linear bearings in three key ways: (1) they resist rotation and provide more controlled, single-axis motion; (2) they handle cantilevered loads better, avoiding the ~2:1 binding limitation common in plain bearings; and (3) they support higher speeds due to rolling contact instead of sliding friction.
