Linear Ball Bearing Pillow Blocks - Open Single
Ways to Order

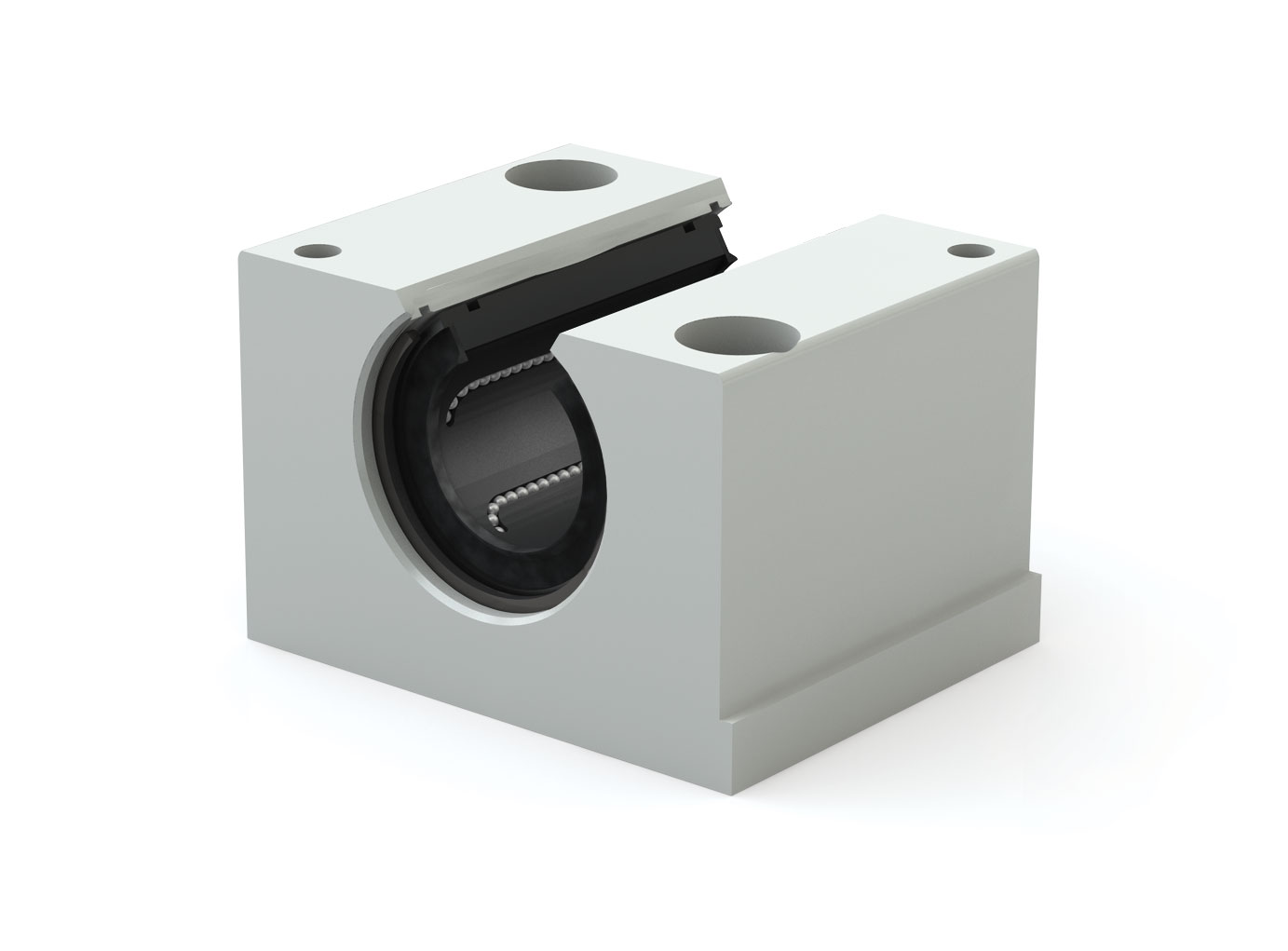

Linear ball bearing pillow block, open-shelled, with a 12mm ID standard-size bearing mounted inside an aluminum alloy housing. The open design allows use with rail-supported round shafts and profiled linear rails. A heat-treated alloy steel bearing shell, recirculating hardened steel balls, and a resin retainer provide durable, low-friction motion with..
$68.46
Linear ball bearing pillow block, open-shelled, with a 16mm ID standard-size bearing mounted inside an aluminum alloy housing. The open design allows use with rail-supported round shafts and profiled linear rails. A heat-treated alloy steel bearing shell, recirculating hardened steel balls, and a resin retainer provide durable, low-friction motion with..
$78.24
Linear ball bearing pillow block, open-shelled, with a 20mm ID standard-size bearing mounted inside an aluminum alloy housing. The open design allows use with rail-supported round shafts and profiled linear rails. A heat-treated alloy steel bearing shell, recirculating hardened steel balls, and a resin retainer provide durable, low-friction motion with..
$85.67
Linear ball bearing pillow block, open-shelled, with a 25mm ID standard-size bearing mounted inside an aluminum alloy housing. The open design allows use with rail-supported round shafts and profiled linear rails. A heat-treated alloy steel bearing shell, recirculating hardened steel balls, and a resin retainer provide durable, low-friction motion with..
$123.58
Linear ball bearing pillow block, open-shelled, with a 30mm ID standard-size bearing mounted inside an aluminum alloy housing. The open design allows use with rail-supported round shafts and profiled linear rails. A heat-treated alloy steel bearing shell, recirculating hardened steel balls, and a resin retainer provide durable, low-friction motion with..
$184.67
Linear ball bearing pillow block, open-shelled, with a 40mm ID standard-size bearing mounted inside an aluminum alloy housing. The open design allows use with rail-supported round shafts and profiled linear rails. A heat-treated alloy steel bearing shell, recirculating hardened steel balls, and a resin retainer provide durable, low-friction motion with..
$229.06
Linear ball bearing pillow block, open-shelled, with a 50mm ID standard-size bearing mounted inside an aluminum alloy housing. The open design allows use with rail-supported round shafts and profiled linear rails. A heat-treated alloy steel bearing shell, recirculating hardened steel balls, and a resin retainer provide durable, low-friction motion with..
$353.72

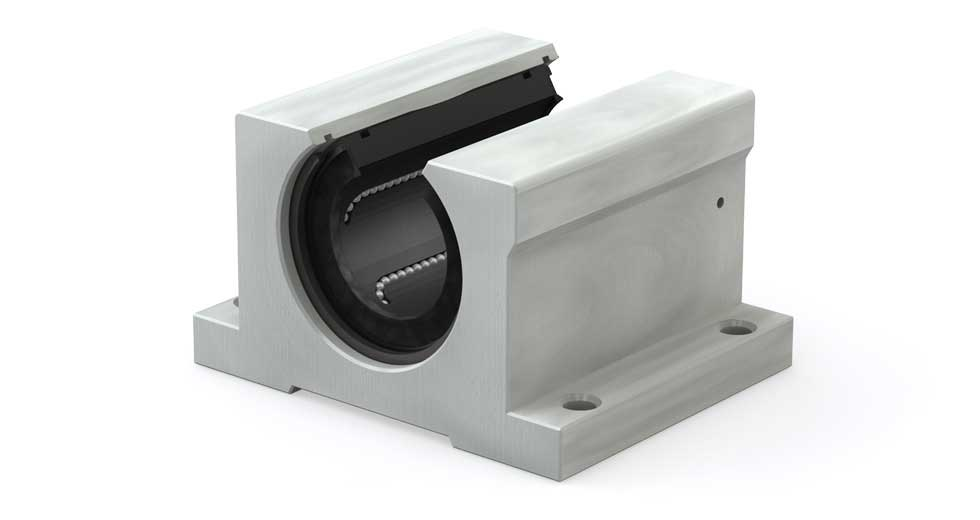

Linear ball bearing pillow block, open-shelled, with a 1/2" ID standard-size linear ball bearing mounted inside an aluminum alloy housing. The open design allows use with fully supported round shafts and support rails, providing greater system rigidity than an end-supported shaft arrangement. A heat-treated alloy steel bearing shell, recirculating precision..
$71.00
Linear ball bearing pillow block, open-shelled, with a 5/8" ID standard-size linear ball bearing mounted inside an aluminum alloy housing. The open design allows use with fully supported round shafts and support rails, providing greater system rigidity than an end-supported shaft arrangement. A heat-treated alloy steel bearing shell, recirculating precision..
$82.26
Linear ball bearing pillow block, open-shelled, with a 3/4" ID standard-size linear ball bearing mounted inside an aluminum alloy housing. The open design allows use with fully supported round shafts and support rails, providing greater system rigidity than an end-supported shaft arrangement. A heat-treated alloy steel bearing shell, recirculating precision..
$89.20
Linear ball bearing pillow block, open-shelled, with a 1" ID standard-size linear ball bearing mounted inside an aluminum alloy housing. The open design allows use with fully supported round shafts and support rails, providing greater system rigidity than an end-supported shaft arrangement. A heat-treated alloy steel bearing shell, recirculating precision..
$129.84
Linear ball bearing pillow block, open-shelled, with a 1.25" ID standard-size linear ball bearing mounted inside an aluminum alloy housing. The open design allows use with fully supported round shafts and support rails, providing greater system rigidity than an end-supported shaft arrangement. A heat-treated alloy steel bearing shell, recirculating precision..
$194.51
Linear ball bearing pillow block, open-shelled, with a 1.5" ID standard-size linear ball bearing mounted inside an aluminum alloy housing. The open design allows use with fully supported round shafts and support rails, providing greater system rigidity than an end-supported shaft arrangement. A heat-treated alloy steel bearing shell, recirculating precision..
$241.38
Linear ball bearing pillow block, open-shelled, with a 2" ID standard-size linear ball bearing mounted inside an aluminum alloy housing. The open design allows use with fully supported round shafts and support rails, providing greater system rigidity than an end-supported shaft arrangement. A heat-treated alloy steel bearing shell, recirculating precision..
$363.00

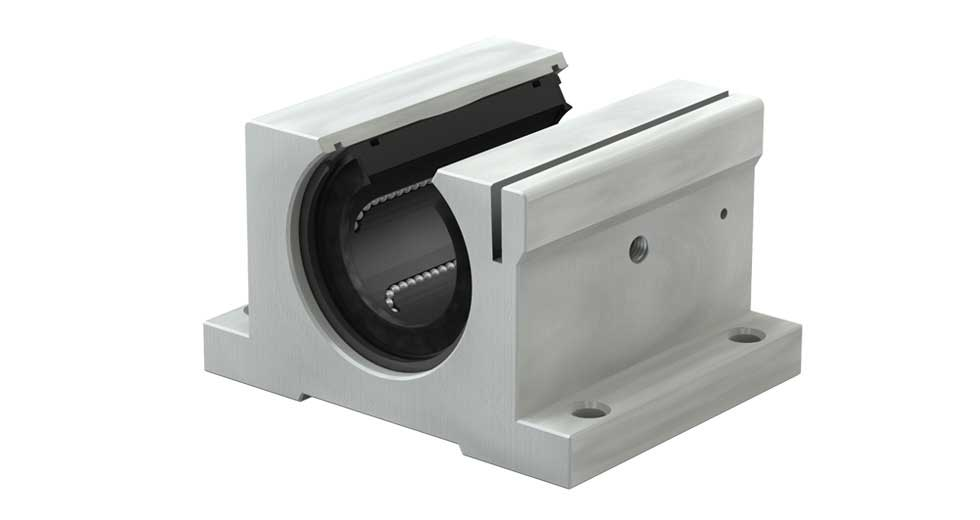

Linear ball bearing pillow block with a 1/2" standard-size, open-shelled Precision Plus® self-aligning bearing mounted inside an aluminum alloy housing. The self-aligning design uses floating internal raceway elements that can shift slightly to accommodate minor shaft and housing misalignment while maintaining smooth rolling contact. The open-shell design allows use with..
$98.83
Linear ball bearing pillow block, open-shelled, with a 5/8" Precision Plus® self-aligning bearing mounted inside an aluminum alloy housing. The self-aligning design uses floating internal raceway elements that can shift slightly to accommodate minor shaft and housing misalignment while maintaining smooth rolling contact. The open-shell design allows use with rail-supported..
$112.61
Linear ball bearing pillow block with a 3/4" standard-size, open-shelled Precision Plus® self-aligning bearing mounted inside an aluminum alloy housing. The self-aligning design uses floating internal raceway elements that can shift slightly to accommodate minor shaft and housing misalignment while maintaining smooth rolling contact. The open-shell design allows use with..
$122.47
Linear ball bearing pillow block with a 1" standard-size, open-shelled Precision Plus® self-aligning bearing mounted inside an aluminum alloy housing. The self-aligning design uses floating internal raceway elements that can shift slightly to accommodate minor shaft and housing misalignment while maintaining smooth rolling contact. The open-shell design allows use with..
$166.56
Linear ball bearing pillow block, open-shelled, with two 1.25" Precision Plus® self-aligning bearings mounted back to back inside an aluminum alloy housing. The twin bearing arrangement provides a longer bearing span for improved load support and stability. Precision Plus® bearings use floating internal raceway elements that shift slightly to accommodate..
$247.98
Linear ball bearing pillow block with 1.5" bore, open-shelled with a self-aligning bearing inside an aluminum alloy housing. The Precision Plus bearing uses floating hardened-steel raceway inserts that shift slightly inside the bearing to accommodate minor shaft and housing misalignment. The open shell allows use on supported round shafts or..
$305.95
Single open linear ball bearing pillow blocks are standard-width bearing assemblies designed for supported round shafts and profiled linear rail systems. The open bearing and housing provide clearance for the shaft-support structure, allowing the pillow block to travel along continuously supported shafts where a closed bearing cannot pass over the supports. Standard variants use recirculating hardened steel balls running in a heat-treated alloy steel bearing shell, with a resin retainer to reduce noise and a low coefficient of friction for smooth linear motion. The aluminum alloy pillow block housing provides a rigid mounting platform, while industry-standard dimensions allow interchangeability with comparable linear bearing pillow blocks and corresponding Simplicity® series sizes. Self-aligning Precision Plus® variants are also available within the single open pillow block range. These versions use floating internal raceway elements that can shift slightly relative to the bearing shell, helping the rolling elements remain aligned with the shaft when minor shaft or mounting misalignment is present.
- Single open, standard-width linear ball bearing pillow blocks
- Inch and metric sizing options
- ID sizes: 0.25" to 2" and 8mm to 50mm
- Size interchangeable with industry-standard dimensions and corresponding Simplicity® series
- Static load capacities up to 1,700lb (7,900N)
- Dynamic load capacities up to 850lb (3,800N)
- Low coefficient of friction for smooth linear motion
- Heat-treated alloy steel bearing shell
- Resin retainer helps reduce operating noise
- Super Ball Bearing versions also available
- Precision Plus® self-aligning versions also available
