Linear Ball Bearing Pillow Blocks

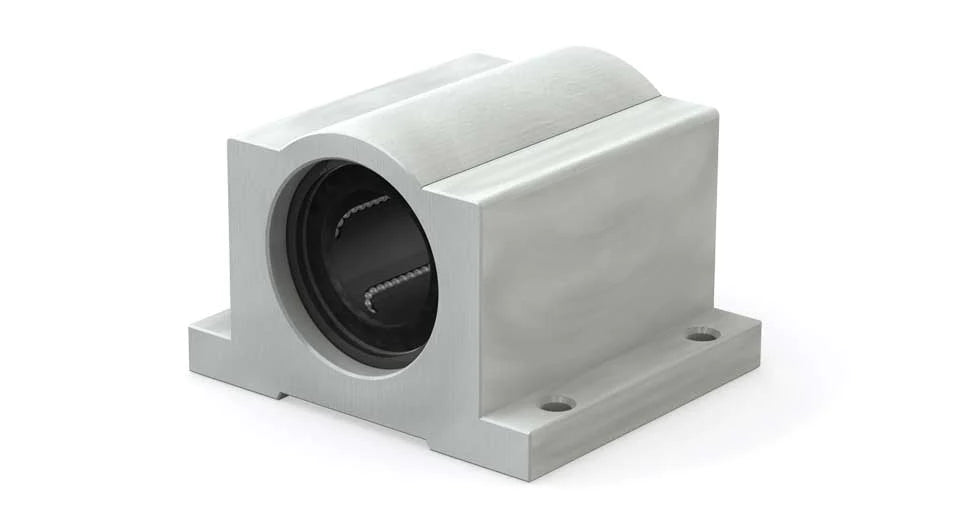

This is the closed, single length, imperial (inch) Linear Ball Bearing Pillow Block. The closed linear bearing design allows for a lower cost installation by using end supported shafts.

• ID sizes range from 1/4" to 2”
• Static Load Capacities up to 1,785 lb (7,940 N)
• Dynamic Load Capacities up to 858 lb (3,800 N)

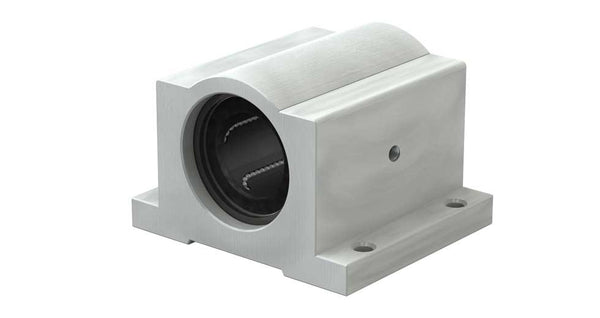

This precision plus linear ball bearing is the closed, single length, imperial (inch) version of our pillow block series. The closed linear bearing configuration enables cost-effective installation through the utilization of end-supported shafts. This version also has built in grease zerk fittings for easy relubrication.

• ID sizes range from 1/2" to 2”
• Static Load Capacities up to 2,165 lb (6,585 N)
• Dynamic Load Capacities up to 2,430 lb (10,809 N)

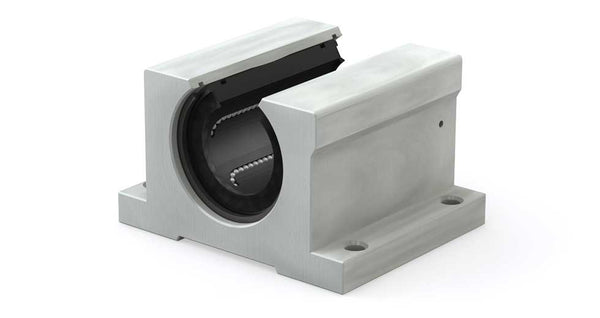

This Linear Ball Bearing Pillow Block is the open, single length, imperial (inch) version. The openness of the design permits the utilization of fully supported shafts and support rails, enhancing overall rigidity.

• ID sizes range from 1/2" to 2”
• Static Load Capacities up to 1,784 lb (7,936 N)
• Dynamic Load Capacities up to 858 lb (3,820 N)

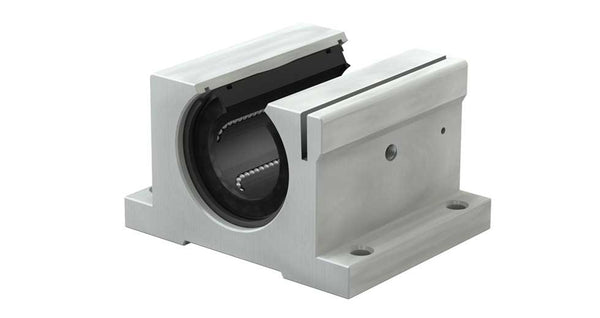

This is the open, self-aligning, single length, imperial (inch) version of our Precision Plus Linear Ball Bearing Pillow Blocks. Its open design enables the utilization of fully supported shafts and support rails, ensuring enhanced rigidity.

• ID sizes range from 1/2" to 2”
• Static Load Capacities up to 2,165 lb (9,630 N)
• Dynamic Load Capacities up to 2,430 lb (10,809 N)

This is the closed, double length, imperial (inch) Linear Ball Bearing Pillow Block. The closed linear bearing design allows for a lower cost installation by using end supported shafts.

• ID sizes range from 1/4" to 2”
• Static Load Capacities up to 3,568 lb (15,871 N)
• Dynamic Load Capacities up to 1,716 lb (7600 N)

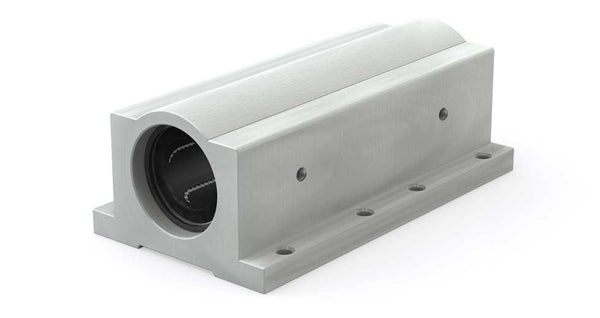

This is the closed, double length, imperial (inch) Linear Ball Bearing Pillow Block. The closed linear bearing design enables a more economical installation through the utilization of shafts supported at the ends.

• ID sizes range from 1/2" to 2”
• Static Load Capacities up to 4,330 lb (19,261 N)
• Dynamic Load Capacities up to 4,860 lb (21,618 N)

This linear ball bearing pillow block is the open, double length, imperial (inch) version. The open linear bearing design allows for the use of fully supported shafts and support rails, ensuring enhanced rigidity.

• ID sizes range from 1/2" to 2”
• Static Load Capacities up to 3,568 lb (15,871 N)
• Dynamic Load Capacities up to 1,716 lb (7,600 N)

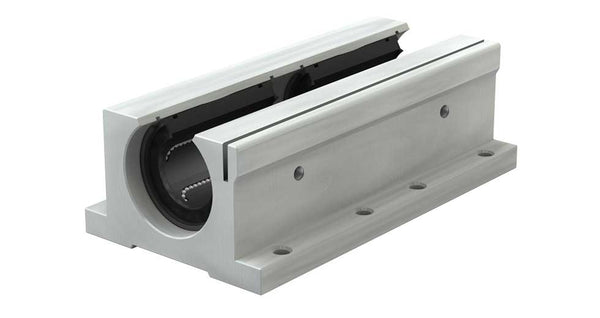

This version of our linear ball bearing pillow block series is the double length, open, imperial (inch). The open linear bearing design enables use of fully supported shafts for enhanced rigidity.

• ID sizes range from 1/2" to 2”
• Static Load Capacities up to 4,330 lb (15,871 N)
• Dynamic Load Capacities up to 4,860 lb (21,618 N)

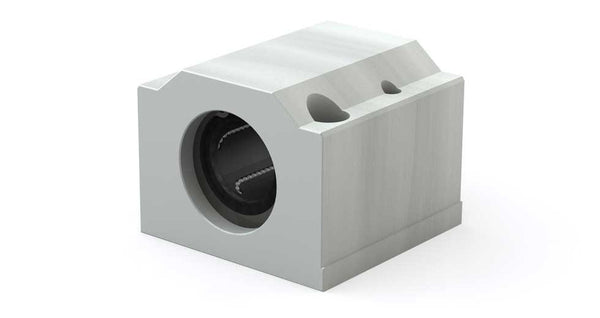

This is the closed, single length, ISO linear ball bearing pillow block. The closed linear bearing configuration enables a more cost-effective installation through the utilization of end-supported shafts.

• ID sizes range from 8 mm to 50 mm
• Static Load Capacities up to 7,930 N (1,783 lb)
• Dynamic Load Capacities up to 3,820 N (850 lb)

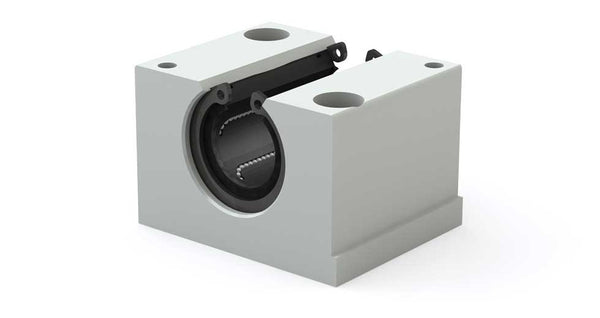

This is the open, single length, ISO Metric version of our linear ball bearing pillow blocks. The open design allows for fully supported shafts and support rail to be used for greater rigidity.

• ID sizes range from 12 mm to 50 mm
• Static Load Capacities up to 7,930 N (1,783 lb)
• Dynamic Load Capacities up to 3,820 N (850 lb)
