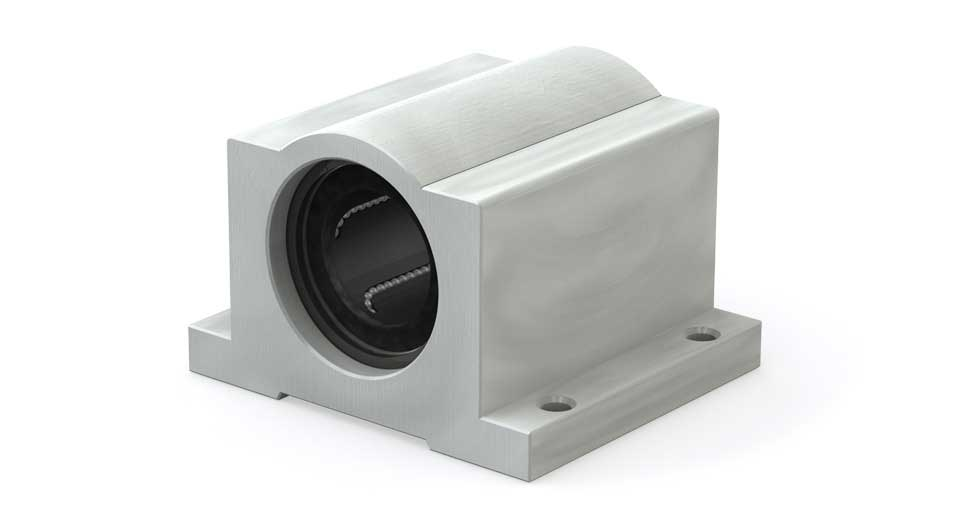

Linear Ball Bearing Pillow Block IPP04G 1/4″ Closed
Linear ball bearing pillow block, closed-shelled, with a 1/4" ID standard-size linear ball bearing mounted inside an aluminum alloy housing. The closed design is intended for end-supported round shafts. A heat-treated alloy steel bearing shell, recirculating hardened steel balls, and a resin retainer provide durable, low-friction motion with reduced operating noise. Linear ball bearings are well suited to cantilevered and overhung-load applications because they can tolerate offset drive forces without the same 2:1 binding limitation that applies to plain linear bearings. Double seals are delivered at no extra cost.
- Linear ball bearing pillow block with an inserted 1/4" ID standard-size bearing
- Closed-shelled design for end-supported round shafts
- Well suited to cantilevered and overhung-load applications
- Handles offset drive forces without the same 2:1 binding limit as plain bearings
- Low coefficient of friction for smooth, high-speed linear motion
- Heat-treated alloy steel bearing shell for durability
- Resin retainer helps reduce operating noise
- Double seals included as standard for contaminant protection
- Temperature range: -4°F to 176°F (-20°C to 80°C)
- Interchangeable with industry-standard sizes and Simplicity® plain bearings
