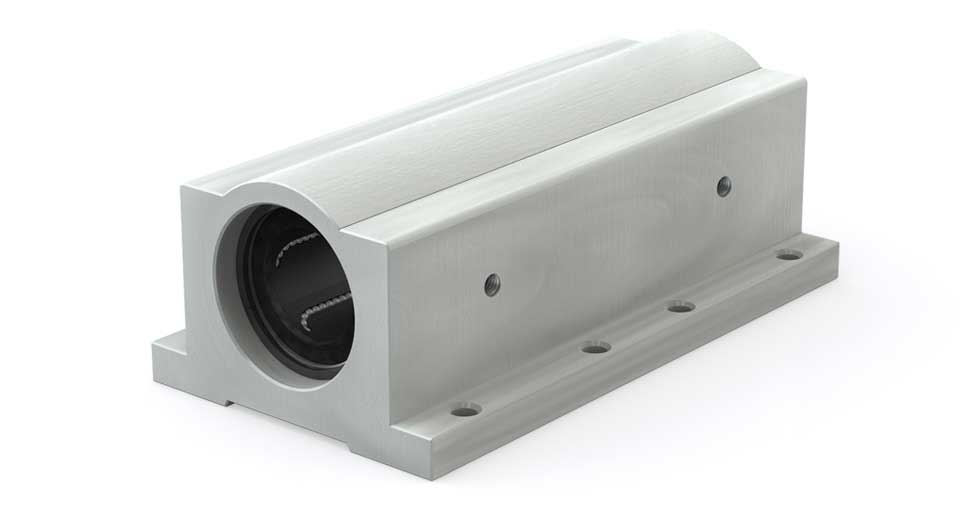

Twin Linear Ball Bearing Pillow Block IPPSW24G 1.50″ Closed - Self Aligning Precision Plus
Twin linear ball bearing pillow block with a 1.5" bore, closed shelled, using two Precision Plus® self-aligning bearings inside an aluminum alloy housing. The closed-shell design is intended for end-supported round shafts, while the twin bearing arrangement provides a longer bearing span for increased load support and stability. Precision Plus® bearings use floating internal raceway elements to accommodate minor shaft and housing misalignment. Two grease zerk fittings provide convenient lubrication access. Heat-treated alloy steel bearing shells, recirculating hardened steel balls, and resin retainers support smooth, low-friction motion with reduced operating noise. Double seals are delivered at no extra cost.
- Twin closed linear ball bearing pillow block with a 1.5" bore
- Two Precision Plus® self-aligning linear ball bearings
- Twin/double configuration equal to two standard bearings mounted back-to-back
- Closed-shell design for end-supported round shafts
- Floating internal raceway elements accommodate minor misalignment
- Two grease zerk fittings for lubrication
- Double seals included as standard for contaminant protection
- Heat-treated alloy steel bearing shells for durability
- Recirculating hardened steel balls for low-friction linear motion
- Resin retainers help reduce operating noise
- Temperature range: -4°F to 176°F (-20°C to 80°C)
- Series sizes available from 1/4" to 2" and 8mm to 50mm
- Size interchangeable with industry-standard dimensions and corresponding Simplicity® series
