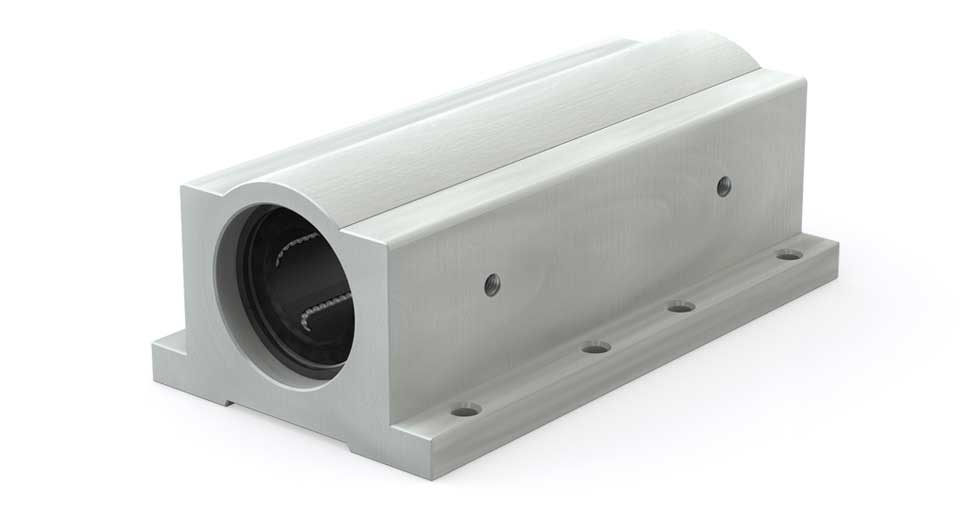

Twin Linear Ball Bearing Pillow Block IPPSW16G 1.00″ Closed - Self Aligning Precision Plus
Twin linear ball bearing pillow block, closed shelled, with two 1" Precision Plus® self-aligning bearings mounted back to back inside an aluminum alloy housing. The self-aligning design uses floating internal raceway elements that can shift slightly to accommodate minor shaft and housing misalignment while maintaining smooth rolling contact. The twin bearing arrangement provides a longer bearing span for improved load support and stability. Linear ball bearings are well suited to cantilevered and overhung-load applications because they can tolerate offset drive forces without the same 2:1 binding limitation that applies to plain linear bearings. Two grease zerk fittings provide convenient lubrication access. Heat-treated alloy steel bearing components, recirculating hardened steel balls, and resin retainer polymer cages support smooth, low-friction motion with reduced operating noise. Double seals are delivered at no extra cost.
- Twin linear ball bearing pillow block with a 1" bore, closed shell
- Two Precision Plus® self-aligning bearings mounted back to back
- Floating ball raceway accommodates minor shaft/housing misalignment
- Twin bearing arrangement provides increased bearing span and load support
- Well suited to cantilevered and overhung-load applications
- Handles offset drive forces without the same 2:1 binding limit as plain bearings
- Two grease zerk fittings for lubrication
- Double seals included as standard for contaminant protection
- Heat-treated alloy steel bearing components for durability
- Recirculating hardened steel balls for low-friction linear motion
- Resin retainer polymer cages help reduce operating noise
- Temperature range: -4°F to 176°F (-20°C to 80°C)
- Series sizes available from 1/4" to 2" and 8mm to 50mm
- Interchangeable with industry-standard and corresponding Simplicity® sizes
