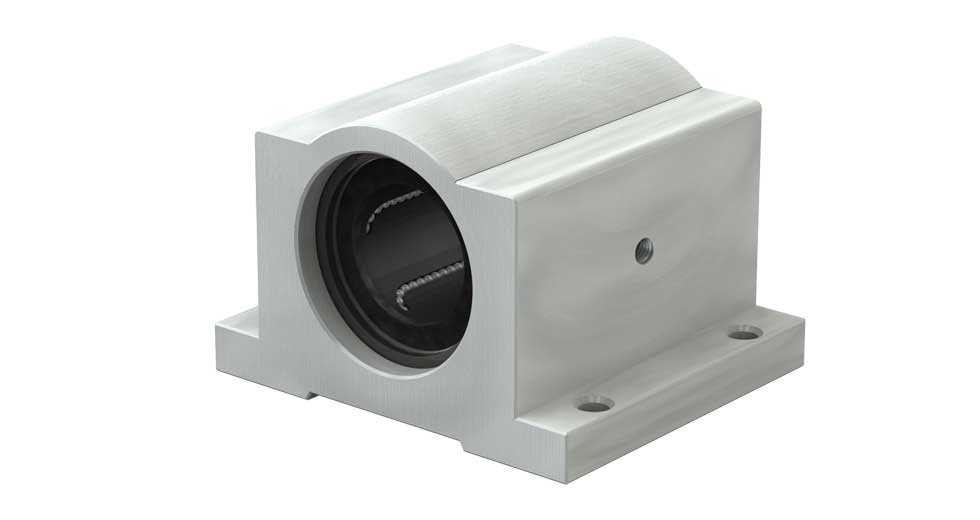

Linear Ball Bearing Pillow Block IPPS16G 1.00″ Closed - Self Aligning Precision Plus
Linear ball bearing pillow block with a 1" standard-size, closed-shelled Precision Plus® self-aligning bearing mounted inside an aluminum alloy housing. The self-aligning design uses floating internal raceway elements that can shift slightly to accommodate minor shaft and housing misalignment while maintaining smooth rolling contact. The closed-shell design is intended for end-supported round shafts. Linear ball bearings are well suited to cantilevered and overhung-load applications because they can tolerate offset drive forces without the same 2:1 binding limitation that applies to plain linear bearings. A grease zerk fitting provides convenient lubrication access. Heat-treated alloy steel bearing components, recirculating hardened steel balls, and a resin retainer support smooth, low-friction motion with reduced operating noise. Double seals are delivered at no extra cost.
- Linear ball bearing pillow block with 1" standard-size, closed-shelled bearing
- Precision Plus® self-aligning linear ball bearing
- Floating ball raceway accommodates minor shaft/housing misalignment
- Closed-shell design for end-supported round shafts
- Well suited to cantilevered and overhung-load applications
- Handles offset drive forces without the same 2:1 binding limit as plain bearings
- Grease zerk fitting for lubrication
- Double seals included as standard for contaminant protection
- Heat-treated alloy steel bearing components for durability
- Recirculating hardened steel balls for low-friction linear motion
- Resin retainer helps reduce operating noise
- Temperature range: -4°F to 176°F (-20°C to 80°C)
- Series sizes available from 1/4" to 2" and 8mm to 50mm
- Interchangeable with industry-standard and corresponding Simplicity® sizes
