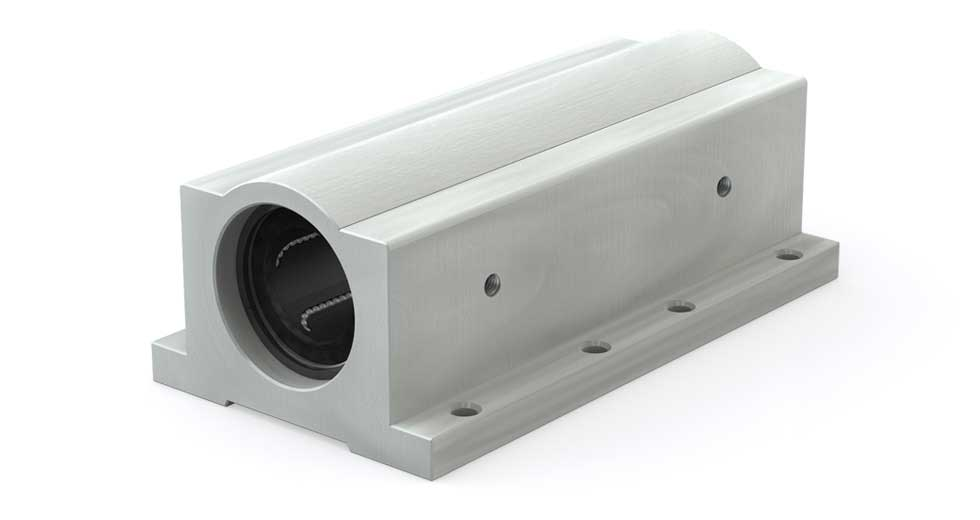

Twin Linear Ball Bearing Pillow Block IPPSW08G 1/2″ Closed - Self Aligning Precision Plus
Double-size ball bearing pillow block, closed shell, with 1/2" bore, using a self-aligning bearing inside an aluminum alloy housing. The double-length bearing is roughly equal to two standard bearings mounted end to end. Self-aligning ball tracks accommodate minor misalignment, and two side-mounted grease zerk fittings provide lubrication access. Heat-treated alloy steel, recirculating hardened steel balls, and a resin retainer cage support smooth, low-friction, low-noise motion. Double seals are standard, and the bearing is well suited to cantilevered loads because it is not subject to the same 2:1 binding limitation as plain bearings.
- Twin sized closed shell linear ball bearing pillow block
- Equivalent in length to two standard bearings mounted end to end
- Self-aligning open bearing for supported shafts or profiled rails
- Two side-mounted grease zerk fittings
- Heat-treated alloy steel shell with hardened recirculating balls
- Resin retainer cage helps reduce noise
- Double seals included standard
- Suitable for cantilevered and overhung loads
- Temperature range: -4°F to 176°F (-20°C to 80°C)
- Inch sizes available from 1/4" to 2"
- Tolerance: ±0.001"
