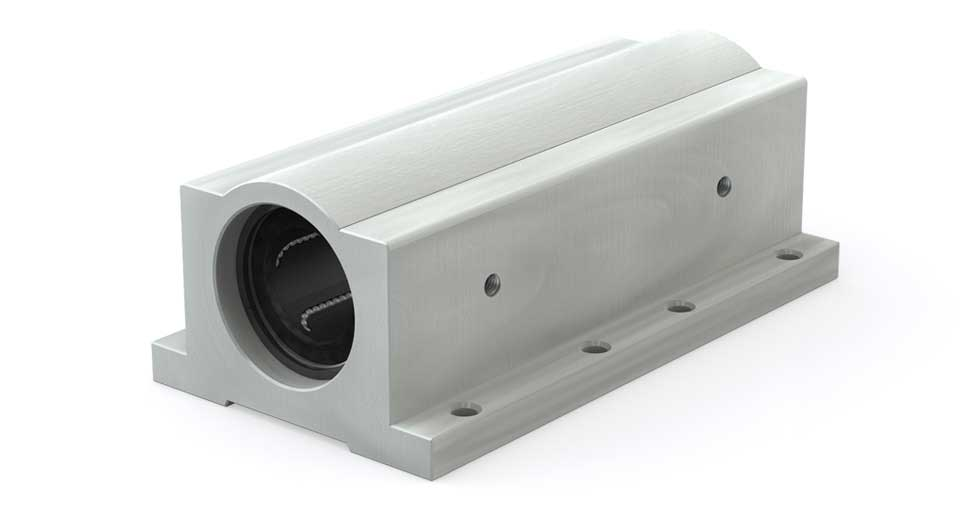

Twin Linear Ball Bearing Pillow Block IPPSW20G 1.25″ Closed - Self Aligning Precision Plus
Linear ball bearing pillow block, closed shelled, with 1.25" bore and two Precision Plus® self-aligning bearings mounted back to back inside an aluminum alloy housing. The twin bearing arrangement provides a longer bearing span for improved load support and stability. Precision Plus® bearings use floating internal raceway elements that can shift slightly to accommodate minor shaft and housing misalignment while maintaining smooth rolling contact. Two grease zerk fittings provide convenient lubrication access. Double seals are delivered at no extra cost.
- Twin linear ball bearing pillow block with a 1.25" bore
- Two Precision Plus® self-aligning linear ball bearings
- Floating internal raceway elements shift slightly to accommodate minor shaft and housing misalignment
- Twin bearing arrangement provides increased bearing span and load support
- Two grease zerk fittings for lubrication
- Double seals included as standard for contaminant protection
- Heat-treated alloy steel bearing shells for durability
- Recirculating hardened steel balls for low-friction linear motion
- Resin retainers help reduce operating noise
- Temperature range: -4°F to 176°F (-20°C to 80°C)
- Series sizes available from 1/4" to 2" and 8mm to 50mm
- Interchangeable with industry-standard and corresponding Simplicity® sizes
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | IPPSW20G.x_t | SolidWorks >=2006 | Download |
