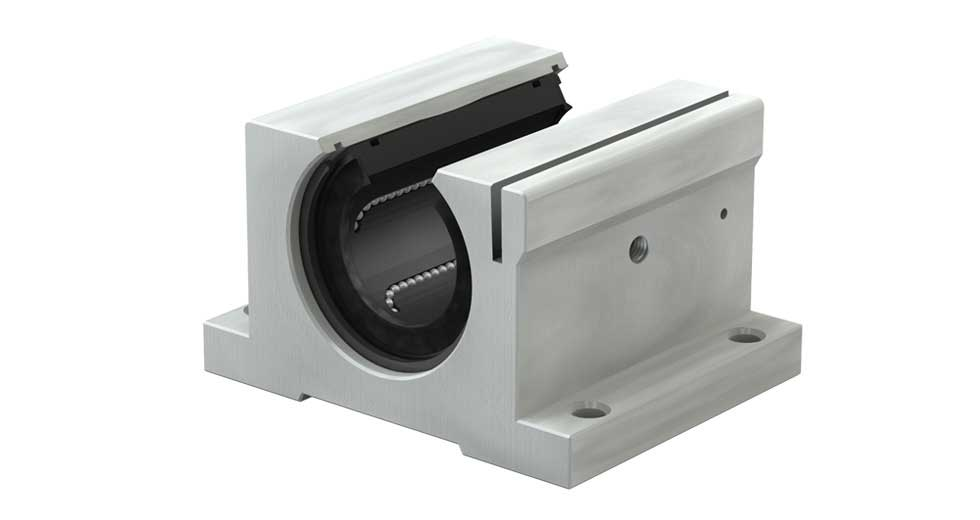

Linear Ball Bearing Pillow Block IPPSN10G 5/8″ Open - Self Aligning Precision Plus

Linear ball bearing pillow block, open-shelled, with a 5/8" Precision Plus® self-aligning bearing mounted inside an aluminum alloy housing. The self-aligning design uses floating internal raceway elements that can shift slightly to accommodate minor shaft and housing misalignment while maintaining smooth rolling contact. The open-shell design allows use with rail-supported round linear shafts and profiled linear rails, while a grease zerk fitting provides convenient lubrication access. Heat-treated alloy steel bearing components, recirculating hardened steel balls, and a polymer resin retainer support smooth, low-friction motion with reduced operating noise. Double seals are delivered at no extra cost.

• Open-shelled linear ball bearing pillow block with a 5/8" bore
• Precision Plus® self-aligning linear ball bearing
• Floating ball raceway elements accommodate minor shaft/housing misalignment
• Open-shell design for rail-supported round shafts and profiled linear rails
• Grease zerk fitting for lubrication
• Double seals included as standard for contaminant protection
• Heat-treated alloy steel bearing components for durability
• Recirculating hardened steel balls for low-friction linear motion
• Polymer resin retainer helps reduce operating noise
• Temperature range: -4°F to 176°F (-20°C to 80°C)
• Series sizes available from 1/4" to 2" and 8mm to 50mm
• Interchangeable with industry-standard and corresponding Simplicity® sizes
