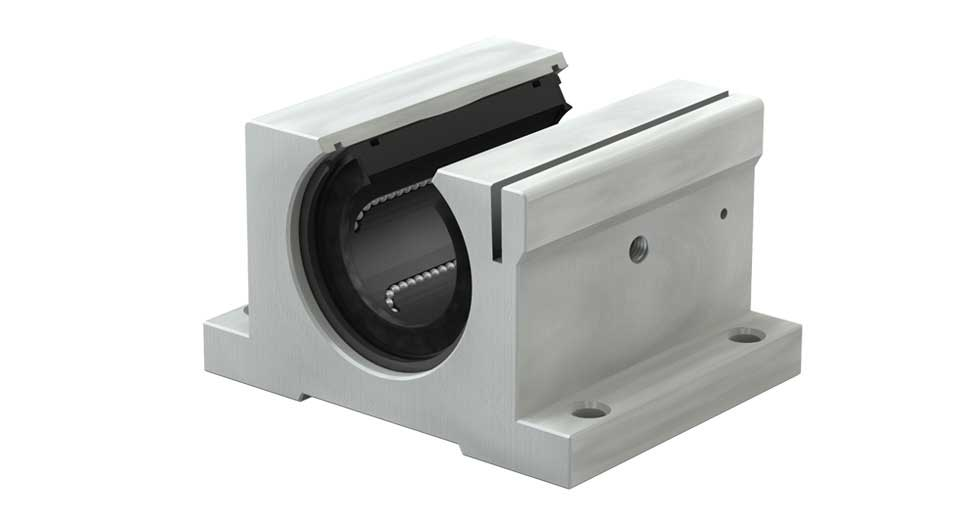

Linear Ball Bearing Pillow Block IPPSN24G 1.50″ Open - Self Aligning Precision Plus
Linear ball bearing pillow block with 1.5" bore, open-shelled with a self-aligning bearing inside an aluminum alloy housing. The Precision Plus bearing uses floating hardened-steel raceway inserts that shift slightly inside the bearing to accommodate minor shaft and housing misalignment. The open shell allows use on supported round shafts or profiled rails, while a grease zerk fitting provides lubrication access. Heat-treated alloy steel, recirculating hardened steel balls, and a resin retainer cage support smooth, low-friction, low-noise motion. Double seals are standard.
- Standard-size open linear ball bearing pillow block
- Self-aligning open bearing for supported shafts or profiled rails
- Crowned bearing shell accommodates minor misalignment
- Grease zerk fitting for lubrication
- Heat-treated alloy steel shell with hardened recirculating balls
- Resin retainer cage helps reduce noise
- Double seals included standard
- Industry-standard dimensions for interchangeability
- Interchangeable with corresponding Simplicity® plain linear bearing sizes
- Temperature range: -4°F to 176°F (-20°C to 80°C)
- Available from 1/4" to 2" inch sizes and 8mm to 50mm metric sizes
