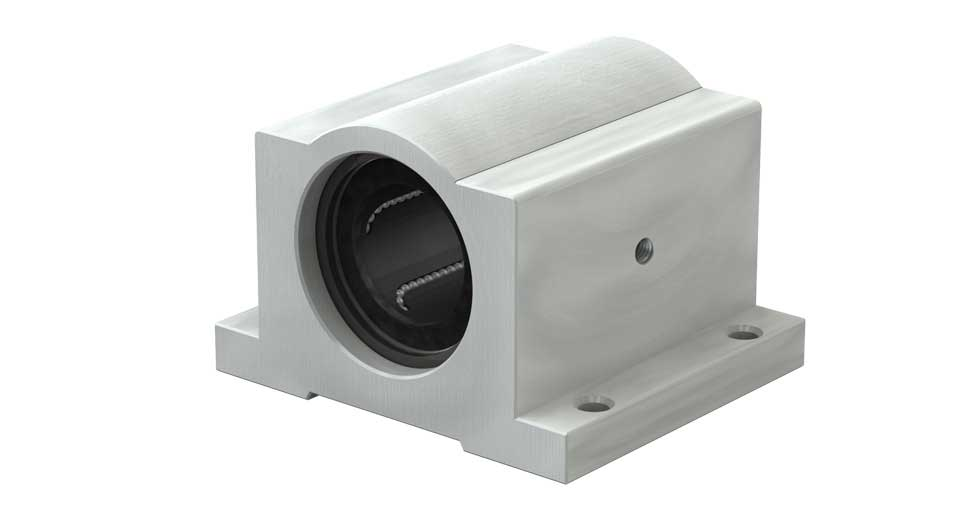

Linear Ball Bearing Pillow Block IPPS10G 5/8″ Closed - Self Aligning Precision Plus

Linear ball bearing pillow block with a 5/8" standard-size, closed-shelled Precision Plus® self-aligning bearing mounted inside an aluminum alloy housing. The self-aligning design uses floating internal raceway elements that can shift slightly to accommodate minor shaft and housing misalignment while maintaining smooth rolling contact. The closed-shell design is intended for end-supported round shafts. Linear ball bearings are well suited to cantilevered and overhung-load applications because they can tolerate offset drive forces without the same 2:1 binding limitation that applies to plain linear bearings. A grease zerk fitting provides convenient lubrication access. Heat-treated alloy steel bearing components, recirculating hardened steel balls, and a resin retainer polymer cage support smooth, low-friction motion with reduced operating noise. Double seals are delivered at no extra cost.

• Linear ball bearing pillow block with a 5/8" standard-size, closed-shelled bearing
• Precision Plus® self-aligning linear ball bearing
• Floating ball raceway accommodates minor shaft/housing misalignment
• Closed-shell design for end-supported round shafts
• Well suited to cantilevered and overhung-load applications
• Handles offset drive forces without the same 2:1 binding limit as plain bearings
• Grease zerk fitting for lubrication
• Double seals included as standard for contaminant protection
• Heat-treated alloy steel bearing components for durability
• Recirculating hardened steel balls for low-friction linear motion
• Resin retainer polymer cage helps reduce operating noise
• Temperature range: -4°F to 176°F (-20°C to 80°C)
• Series sizes available from 1/4" to 2" and 8mm to 50mm
• Interchangeable with industry-standard and corresponding Simplicity® sizes
