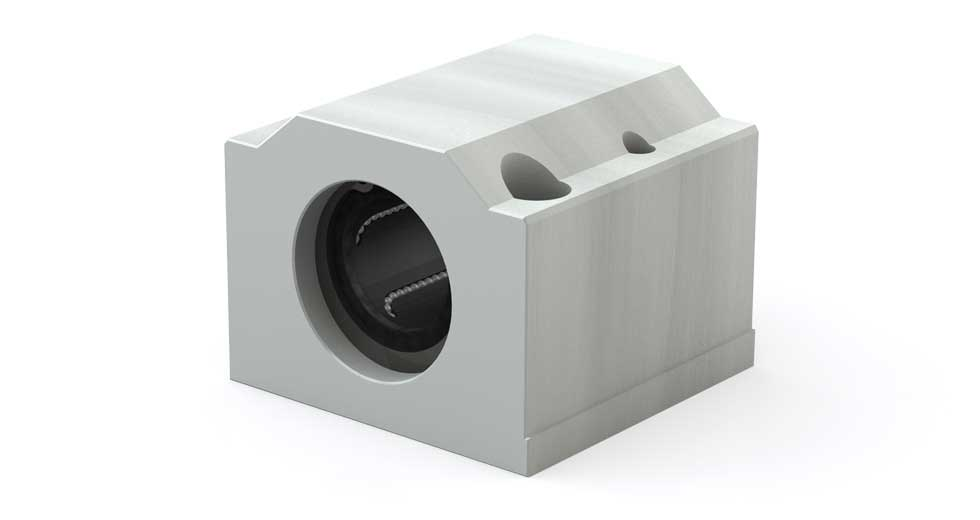

Linear Ball Bearing Pillow Block EPPM30G 30mm Closed
Linear ball bearing pillow block with a 30mm standard-size, closed-shelled bearing mounted inside an aluminum alloy housing. Designed for end-supported round shafts, the bearing uses a heat-treated alloy steel shell, recirculating hardened steel balls, and a resin retainer for durable, low-friction motion with reduced operating noise. Linear ball bearings are well suited to cantilevered and overhang-load applications because they can tolerate offset drive forces without the same 2:1 binding limitation that applies to plain linear bearings. Double seals are delivered at no extra cost.
- Linear ball bearing pillow block
- 30mm standard-size, closed-shelled bearing
- Designed for end-supported round shafts
- Well suited to cantilevered and overhung-load applications
- Handles offset drive forces without the 2:1 binding limit of plain bearings
- Low coefficient of friction for smooth, high-speed linear motion
- Heat-treated alloy steel bearing shell for durability
- Resin retainer helps reduce operating noise
- Double seals included as standard for contaminant protection
- Temperature range: -4°F to 176°F (-20°C to 80°C)
- Series sizes available from 1/4" to 2" and 8mm to 50mm
- Interchangeable w/ industry-standard sizes and corresponding Simplicity® bearings
