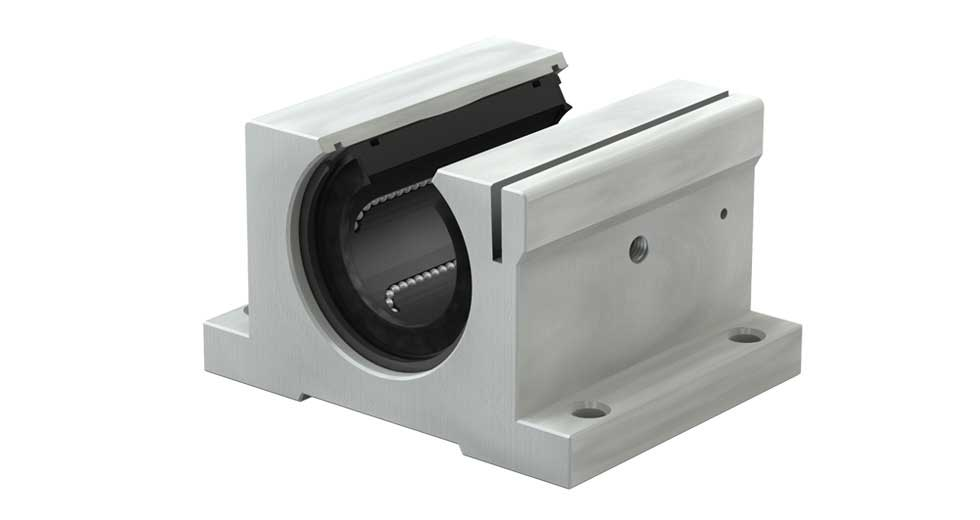

Linear Ball Bearing Pillow Block IPPSN16G 1.0″ Open - Self Aligning Precision Plus
Linear ball bearing pillow block with a 1" standard-size, open-shelled Precision Plus® self-aligning bearing mounted inside an aluminum alloy housing. The self-aligning design uses floating internal raceway elements that can shift slightly to accommodate minor shaft and housing misalignment while maintaining smooth rolling contact. The open-shell design allows use with rail-supported round linear shafts and profiled linear rails. A grease zerk fitting provides convenient lubrication access. Heat-treated alloy steel bearing components, recirculating hardened steel balls, and a polymer resin retainer support smooth, low-friction motion with reduced operating noise. Linear ball bearings are well suited to cantilevered and overhung-load applications because they can tolerate offset drive forces without the same 2:1 binding limitation that applies to plain linear bearings. Double seals are delivered at no extra cost.
- Linear ball bearing pillow block with a 1" standard-size, open-shelled bearing
- Precision Plus® self-aligning linear ball bearing
- Floating ball raceway accommodates minor shaft/housing misalignment
- Open-shell design for rail-supported round shafts and profiled linear rails
- Well suited to cantilevered and overhung-load applications
- Handles offset drive forces without the same 2:1 binding limit as plain bearings
- Grease zerk fitting for lubrication
- Double seals included as standard for contaminant protection
- Heat-treated alloy steel bearing components for durability
- Recirculating hardened steel balls for low-friction linear motion
- Polymer resin retainer helps reduce operating noise
- Temperature range: -4°F to 176°F (-20°C to 80°C)
- Series sizes available from 1/4" to 2" and 8mm to 50mm
- Interchangeable with industry-standard and corresponding Simplicity® sizes
