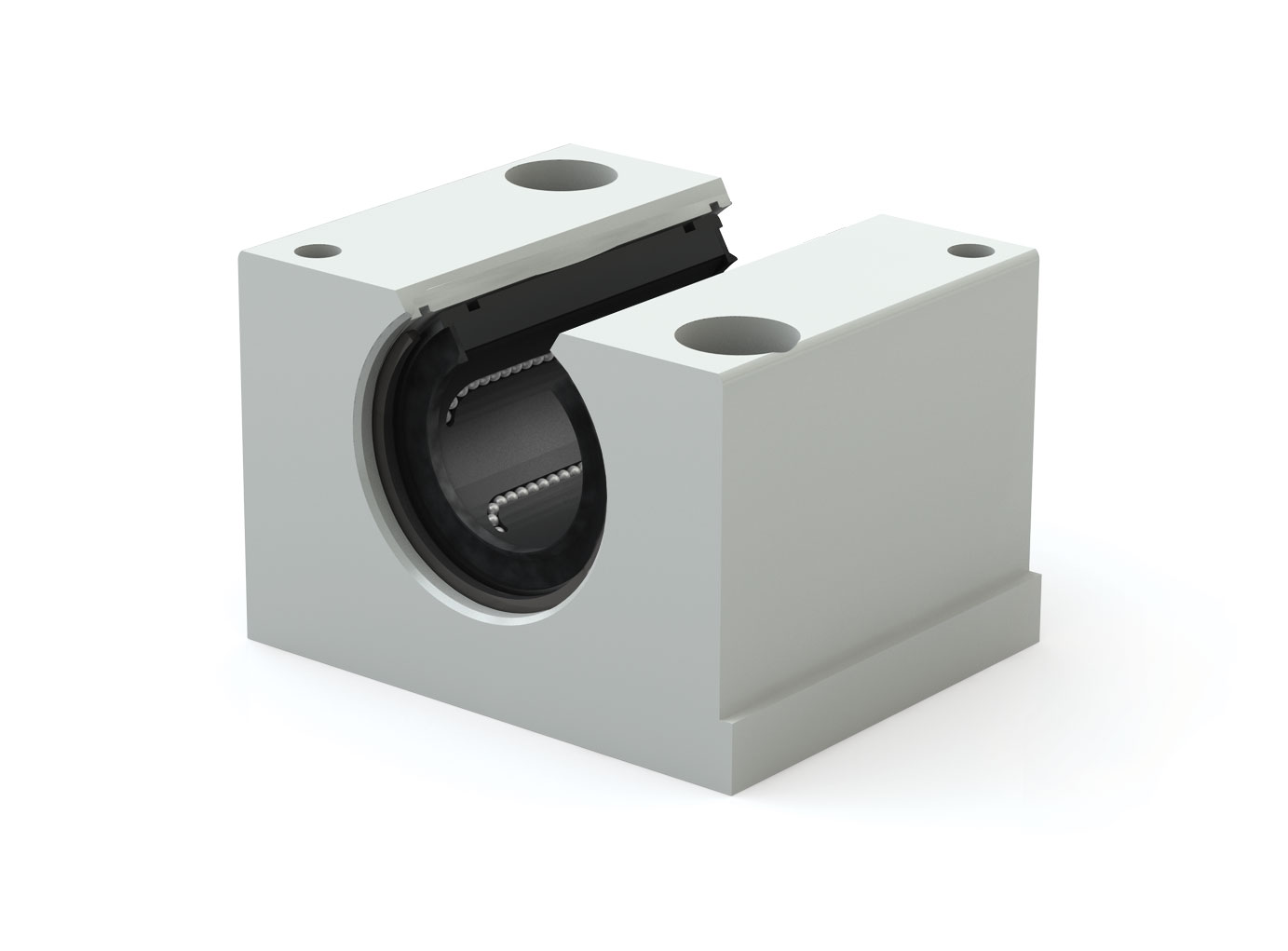

Linear Ball Bearing Pillow Block EPPMN12G 12mm Open
Linear ball bearing pillow block, open-shelled, with a 12mm ID standard-size bearing mounted inside an aluminum alloy housing. The open design allows use with rail-supported round shafts and profiled linear rails. A heat-treated alloy steel bearing shell, recirculating hardened steel balls, and a resin retainer provide durable, low-friction motion with reduced operating noise. Linear ball bearings are well suited to cantilevered and overhung-load applications because they can tolerate offset drive forces without the same 2:1 binding limitation that applies to plain linear bearings. Double seals are delivered at no extra cost.
- Linear ball bearing pillow block with an inserted 12mm ID standard-size bearing
- Open-shelled design for rail-supported round shafts and profiled linear rails
- Well suited to cantilevered and overhung-load applications/li>
- Handles offset drive forces without the same 2:1 binding limit as plain bearings
- Low coefficient of friction for smooth, high-speed linear motion
- Heat-treated alloy steel bearing shell for durability
- Resin retainer helps reduce operating noise
- Double seals included as standard for contaminant protection
- Temperature range: -4°F to 176°F (-20°C to 80°C)
- Interchangeable w/ industry-standard sizes and corresponding Simplicity® bearings
