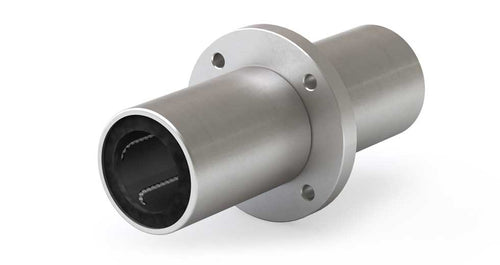

Round Flanged Linear Ball Bearings - Double Sized, Center Mount

Double-sized center flanged linear ball bearings combine the compact mounting advantages of a round flange with the higher load capacity of a twin bearing format. The round flange rotates easily into position, fits into tighter spaces without corner interference, and distributes mounting stress evenly around the circular flange. The center-mount helps balance support across the bearing body, making it useful for layouts where loads may act from either side of the mounting plate. PBC Linear® twin center flanged linear ball bearings feature a heat-treated alloy steel shell, steel balls, quiet polymer cage, double seals, and low-friction recirculating ball motion. Available in ISO Metric and JIS Metric sizing with ID sizes from 8 mm to 50 mm and 1" and 2" sizes, they support multi-directional loading and can outperform plain bearings in cantilevered applications where overhung loads and offset drive forces may trigger the restrictive 2:1 binding rule for plain bearings.

• Twin round flanged linear ball bearing with centrally mounted round flange
• Round flange rotates easily into position without corner alignment
• Compact circular flange fits into tighter spaces with less component interference
• Even stress distribution around the circular mounting surface
• Center-mounted flange helps balance support across the bearing body
• Useful for layouts where loads may act from either side of the mounting plate
• Double-size design is equivalent to two standard linear ball bearings mounted back to back
• Higher load support than standard-size linear ball bearing formats
• Available in Inch, ISO Metric and JIS Metric sizing options
• ID sizes range from 8 mm to 50 mm and 1" to 2"
• Static load capacities up to 15,900 N or 3,500 lb
• Dynamic load capacities up to 6,000 N or 1,300 lb
• Static moment capacities up to 399 Nm or 290 ft-lb
• Size interchangeable with industry standards and the Simplicity^® series
• Supports multi-directional loading
• Low coefficient of friction for smooth, high-speed linear motion
• Heat-treated alloy steel shell provides durability
• Steel balls provide recirculating rolling contact
• Quiet polymer cage and resin retainer help reduce operating noise
• Double seals provide added protection and durability
• Temperature range: -4°F to +176°F or -20°C to +80°C
• Can outperform plain bearings in cantilevered applications affected by the restrictive 2:1 binding rule for plain bearings
