Thin Wall Linear Ball Bearing
Ways to Order
Thin-walled linear ball bearing, 20 mm ID, 28 mm OD and 30 mm length, with a closed design for compact linear motion systems where radial space is limited. Recirculating balls run within a slim heat-treated alloy steel shell, while a polymer resin retainer guides the balls and helps reduce operating..
$20.77
Thin-walled linear ball bearing, 16mm ID, 24mm OD and 30mm length, with a closed design for compact linear motion systems where radial space is limited. Recirculating balls run within a slim heat-treated alloy steel shell, while a polymer resin retainer guides the balls and helps reduce operating noise and friction...
$14.76
Thin-walled linear ball bearing with a 6mm bore, 12mm OD and 22mm length, designed for compact applications requiring minimal radial space. This ISO metric bearing uses a closed shell to protect the internal recirculating ball system from contamination. Its low-friction ball design is ideal for cantilevered loads because it is..
$11.50
Thin-walled linear ball bearing, 50mm ID, 62mm OD and 70mm length, with a closed design for compact linear motion systems where radial space is limited. Recirculating balls run within a slim heat-treated alloy steel shell, while a polymer resin retainer guides the balls and helps reduce operating noise and friction...
$45.06
Thin-walled linear ball bearing, 14mm ID, 21mm OD and 28mm length, with a closed design for compact linear motion systems where radial space is limited. Recirculating balls run within a slim heat-treated alloy steel shell, while a polymer resin retainer guides the balls and helps reduce operating noise and friction...
$15.11
Thin-walled linear ball bearing, 10mm ID, 17mm OD and 26mm length, with a closed design for compact linear motion systems where radial space is limited. Recirculating balls run within a slim heat-treated alloy steel shell, while a polymer resin retainer guides the balls and helps reduce operating noise and friction...
$13.10
Thin-walled linear ball bearing with an 8mm bore, 15mm OD and 24mm length, designed for compact linear motion applications where radial space is limited. The closed shell protects the internal recirculating ball system from contamination. Its low-friction ball design is well suited for cantilevered loads because it is not subject..
$11.69
Thin-walled linear ball bearing, 30mm ID, 40mm OD and 50mm length, with a closed design for compact linear motion systems where radial space is limited. Recirculating balls run within a slim heat-treated alloy steel shell, while a polymer resin retainer guides the balls and helps reduce operating noise and friction...
$41.94
Thin-walled linear ball bearing, 40mm ID, 52mm OD and 60mm length, with a closed design for compact linear motion systems where radial space is limited. Recirculating balls run within a slim heat-treated alloy steel shell, while a polymer resin retainer guides the balls and helps reduce operating noise and friction...
$51.05
Thin-walled linear ball bearing, 25mm ID, 35mm OD and 40mm length, with a closed design for compact linear motion systems where radial space is limited. Recirculating balls run within a slim heat-treated alloy steel shell, while a polymer resin retainer guides the balls and helps reduce operating noise and friction...
$45.12
Thin-walled linear ball bearing, 12mm ID, 19mm OD and 28mm length, with a closed design for compact linear motion systems where radial space is limited. Recirculating balls run within a slim heat-treated alloy steel shell, while a polymer resin retainer guides the balls and helps reduce operating noise and friction...
$14.35

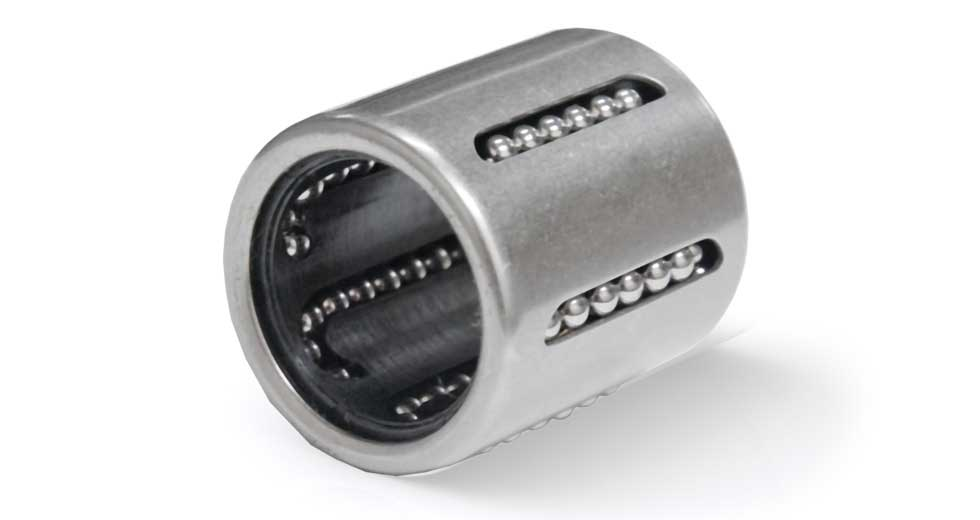

Thin-wall linear ball bearings are compact recirculating ball bushings designed for low-friction travel on hardened round shafts where radial space is limited. PBC Linear KHP Series bearings use a slim, heat-treated alloy steel shell with a polymer resin retainer that guides the recirculating balls and helps reduce operating noise. Available exclusively in a closed ISO metric configuration, the KHP design conserves space and weight while providing rolling-element motion for compact housings and assemblies. ID sizes include 6, 8, 10, 12, 14, 16, 20, 25, 30, 40, and 50 mm, with load ratings reaching 5,500 N (1,200 lb) dynamic and 6,300 N (1,400 lb) static on the KHP50. Use with Simplicity 60 Plus™ carbon steel or compatible hardened 440 stainless steel shafting; KHP bearings are not intended for 316 stainless steel or ceramic-coated aluminum shafts. Applications include compact automation, packaging machinery, medical and laboratory equipment, and light industrial motion systems.
- Closed ISO metric thin-wall ball bushing design
- Compact construction conserves radial space and weight
- Available in ID sizes from 6 mm to 50 mm
- Heat-treated alloy steel shell
- Polymer resin retainer guides the recirculating balls and helps reduce operating noise
- Dynamic load capacities up to 5,500 N (1,200 lb)
- Static load capacities up to 6,300 N (1,400 lb)
- Maximum load ratings apply to the KHP50
- Closed configuration only — no open or adjustable KHP versions
- Use with Simplicity 60 Plus™ or other compatible hardened steel shafting
- Compatible with hardened 440 stainless steel shafting
- Not intended for 316 stainless steel or ceramic-coated aluminum shafting
Frequently Asked Questions
What is a thin-wall linear ball bearing?
A thin-wall linear ball bearing is a compact recirculating ball bushing with a reduced outer diameter compared with a standard linear ball bearing. The thinner profile conserves radial space while providing low-friction travel on a hardened round shaft.
When should I use a thin-wall linear ball bearing?
A thin-wall design is useful when a machine needs low-friction recirculating ball motion but has limited radial space around the shaft. Typical applications include compact automation, packaging, medical, laboratory, and light industrial equipment.
Are KHP bearings available in open or adjustable versions?
No. The PBC Linear KHP Series consists of closed ISO metric bushings and does not include open or adjustable configurations.
What shaft should I use with a KHP ball bushing?
KHP ball bushings should run on hardened round shafting designed for rolling-element contact, such as Simplicity 60 Plus™ carbon steel or compatible hardened 440 stainless steel shafting. They are not intended for unhardened 316 stainless steel or ceramic-coated aluminum shafts.
What is the difference between a linear ball bearing and a linear ball bushing?
The terms are commonly used for the same type of component: a cylindrical bearing with recirculating balls that travels along a round shaft. Ball bushing emphasizes its cylindrical form, while linear ball bearing describes its function.
