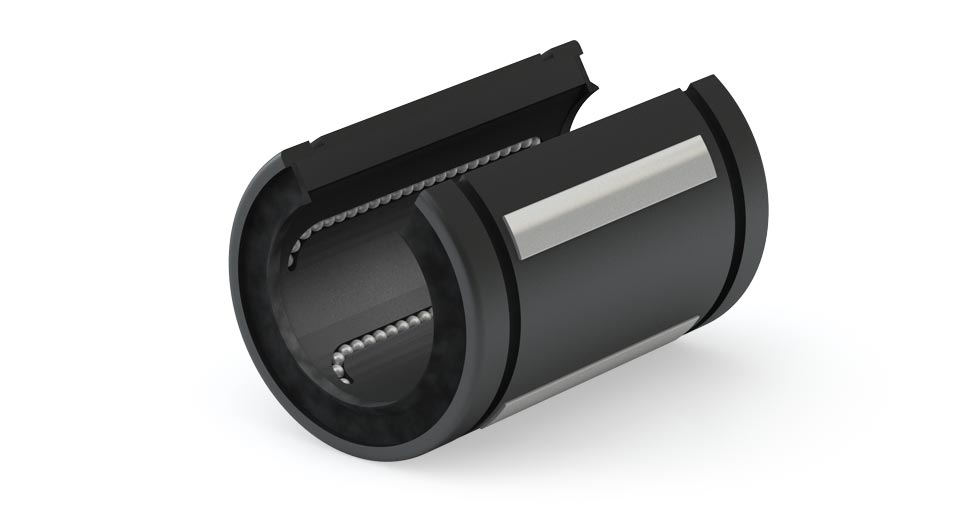

Linear Ball Bearing IPS16-OP 1.00" Self Aligning Open

Open Linear Ball Bearing, Self-Aligning, with a 1" ID and a low coefficient of friction. Constructed with a heat-treated alloy steel shell, the resin retainer effectively reduces noise during operation, while double seals are included as standard at no additional cost.

  • Temperature Range: -4/+176°F (-20/+80°C)
  • Variant ID Sizes: from 1/4" to 2” Inch Series
  • Interchangeable: Size interchangeable with industry standards and our Simplicity® plain linear bearing series

3D Models

TypeFileFormatLink
3dIPS16-OP.htmlhtmlView
cadIPS16-OP.x_tSolidWorks >=2006Download
$84.35
Configure Custom Features
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
0.36 lbs1.56 in2.25 in1.48 in
Linear Bearing Selection Criteria
Linear Bearing Selection Criteria

3D Models

html
3dView
SolidWorks >=2006
cadDownload

Catalogs & Datasheets

Simplicity Linear Bearings Chemical Chart
datasheetOpen Link
Simplicity Linear Plain Bearings
datasheetOpen Link
Linear Ball Bearings Interchange Chart
datasheetOpen Link
Shafting: Bearings: and Pillow Blocks Compatibility Chart
datasheetOpen Link
