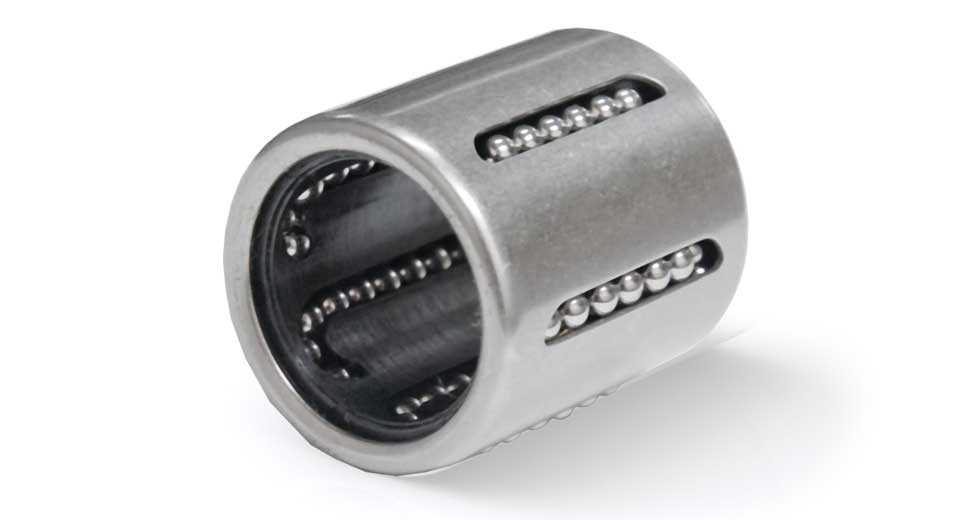

Thin Wall Linear Ball Bearing KHP16 16mm ISO Metric
Thin-walled linear ball bearing, 16mm ID, 24mm OD and 30mm length, with a closed design for compact linear motion systems where radial space is limited. Recirculating balls run within a slim heat-treated alloy steel shell, while a polymer resin retainer guides the balls and helps reduce operating noise and friction. The ISO metric bearing has a dynamic load capacity of 800 N. Use with Simplicity 60 Plus™ carbon steel or compatible hardened 440 stainless steel round shafting. It is not available in open or adjustable configurations and is not intended for 316 stainless steel or ceramic-coated aluminum shafts.
- Closed thin-wall linear ball bushing
- 16mm ID × 24mm OD × 30mm length
- Dynamic load capacity: 800 N
- Heat-treated alloy steel shell with polymer resin retainer
- Recirculating ball design for low-friction linear travel
- Slim profile conserves radial space in compact housings
- Use with Simplicity 60 Plus™ or compatible hardened 440 stainless steel shafting
- Closed configuration only — not available open or adjustable
- Not intended for 316 stainless steel or ceramic-coated aluminum shafting
