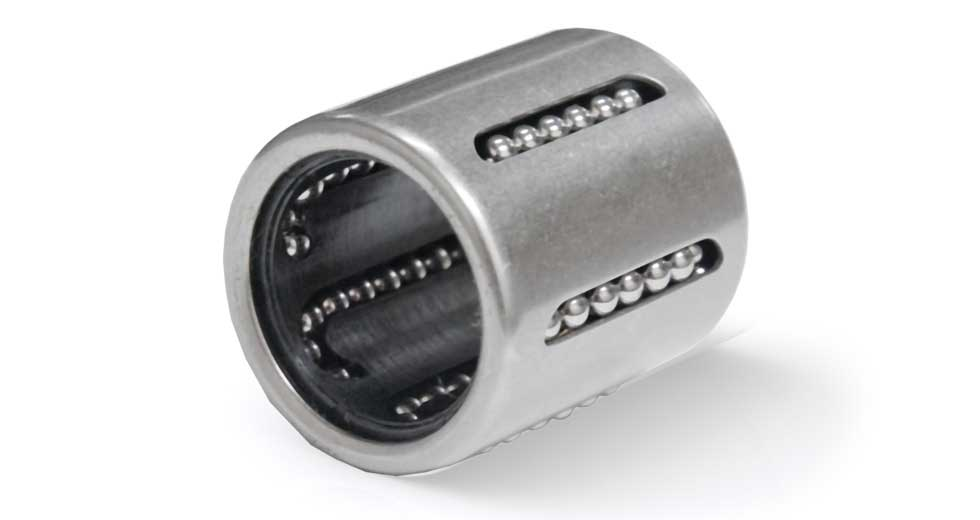

Thin Wall Linear Ball Bearing KHP50 50mm ISO Metric
Thin-walled linear ball bearing, 50mm ID, 62mm OD and 70mm length, with a closed design for compact linear motion systems where radial space is limited. Recirculating balls run within a slim heat-treated alloy steel shell, while a polymer resin retainer guides the balls and helps reduce operating noise and friction. The low-friction ball design can reduce the tendency to bind in cantilevered applications compared with sliding plain bushings. The ISO metric bearing has a dynamic load capacity of 5,500 N. Use with Simplicity 60 Plus™ carbon steel or compatible hardened 440 stainless steel round shafting. It is not intended for 316 stainless steel or ceramic-coated aluminum shafts.
- Closed thin-wall linear ball bushing
- 50mm ID × 62mm OD × 70mm length
- Dynamic load capacity: 5,500 N
- Low-friction ball design can reduce binding in cantilevered applications
- Heat-treated alloy steel shell with polymer resin retainer
- Recirculating ball design for low-friction linear travel
- Slim profile conserves radial space in compact housings
- Use with Simplicity 60 Plus™ or compatible hardened 440 stainless steel shafting
- Closed configuration only — not available open or adjustable
- Not intended for 316 stainless steel or ceramic-coated aluminum shafting
3D Models
| Type | File | Format | Link |
|---|---|---|---|
| cad | KHP50.x_t | SolidWorks >=2006 | Download |
