Hevi-Rail® Roller Axial Bearings

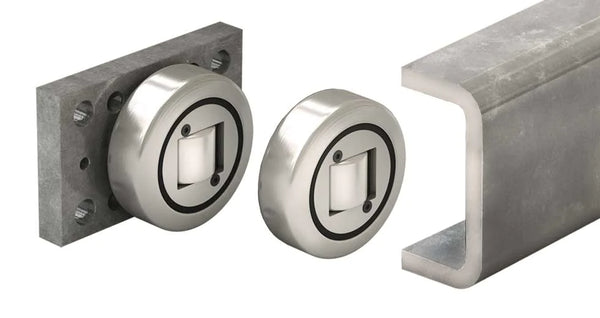

Hevi-Rail-053 is available with a variety of interchangeable components: U-Channels and Flange Plates. Flange Plates can be ordered as pre-welded. Rails and Bearings must be ordered as individual items below.

MAX System Static Load: Radial = 5.23 kN, Axial = 1.68 kN

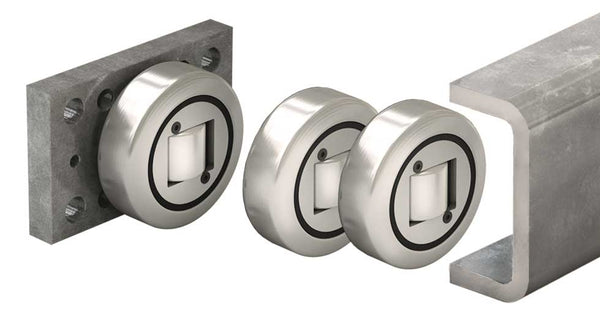

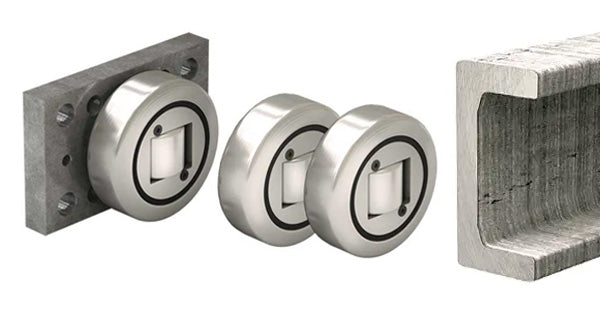

Hevi-Rail-054 is available as a fixed or adjustable axial bearing. It also comes with various interchangeable components, including U-Channels and Flange Plates, which can be pre-welded upon request. Rails and bearings need to be ordered separately from the items listed below.

MAX System Static Load: Radial = 10.30 kN, Axial = 3.20 kN

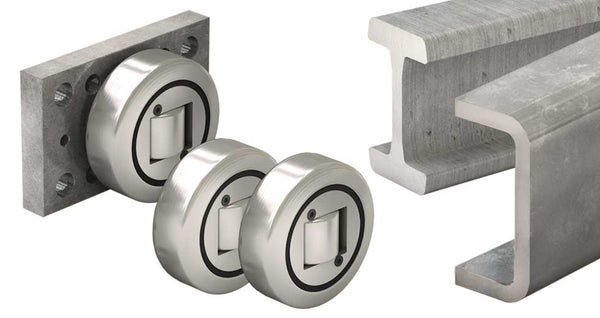

Hevi-Rail-055 is offered as either a fixed or adjustable axial bearing. It includes various interchangeable components, such as U-Channels, I-Channels and Flange Plates, which can be pre-welded upon request. Rails and bearings must be ordered separately from the items listed below.

MAX System Static Load: Radial = 12.40 kN, Axial = 3.87 kN

Hevi-Rail-056 is available in fixed or adjustable axial bearing options. It includes various interchangeable components, such as U-Channels and Flange Plates, which can be pre-welded upon request. Rails and bearings should be ordered separately from the items listed below.

MAX System Static Load: Radial = 12.90 kN, Axial = 4 kN

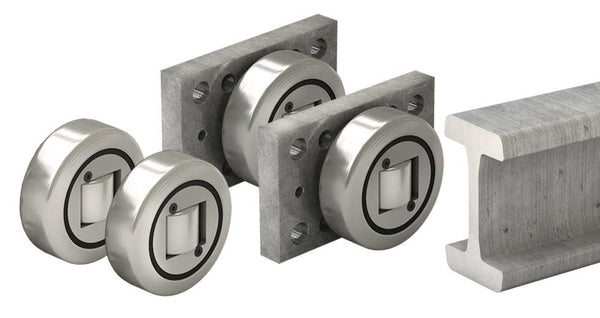

Hevi-Rail-057 is offered in both fixed and adjustable axial bearing options. It includes interchangeable components like I-Channels and Flange Plates, which can be pre-welded upon request. Rails and bearings must be ordered separately from the items listed below.

MAX System Static Load: Radial = 12.90 kN, Axial = 4 kN

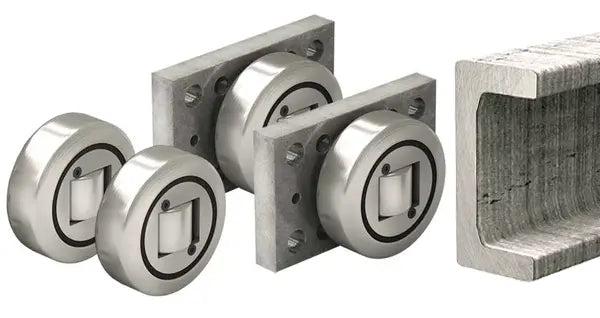

Hevi-Rail-058 is available in both fixed and adjustable axial bearing options. It features interchangeable components such as U-Channels, I-Channels and Flange Plates, which can be pre-welded upon request. Rails and bearings should be ordered separately from the items listed below.

MAX System Static Load: Radial = 22.40 kN, Axial = 7 kN

Hevi-Rail-059 is available in fixed and adjustable axial bearing configurations with optional I-Channels. Rails and bearings must be ordered separately from the items listed below.

MAX System Static Load: Radial = 22 kN, Axial = 7 kN

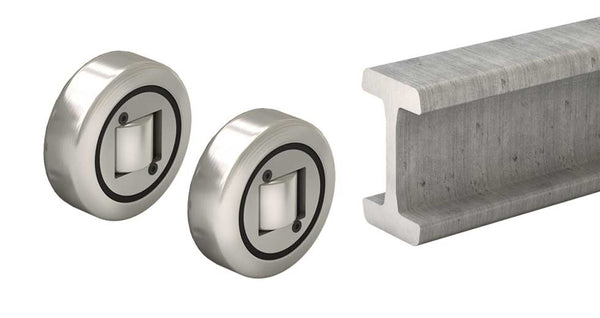

Hevi-Rail-060 is offered in both fixed and adjustable axial bearing configurations, with optional I-Channels. Rails and bearings need to be ordered separately from the items listed below.

MAX System Static Load: Radial = 23.80 kN, Axial = 7.44 kN

Hevi-Rail-061 is offered in both fixed and adjustable axial bearing configurations, with optional U-Channels and Flange Plates, which can be welded upon request. Rails and bearings need to be ordered separately from the items listed below.

MAX System Static Load: Radial = 23.80 kN, Axial = 7.44 kN

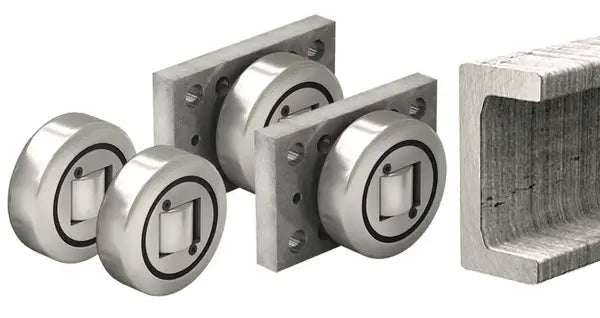

Hevi-Rail-062 is offered as either a fixed or adjustable axial bearing. It includes various interchangeable components, such as U-Channels and Flange Plates, which can be pre-welded upon request. Rails and bearings must be ordered separately from the items listed below.

MAX System Static Load: Radial = 33.90 kN, Axial = 10.60 kN

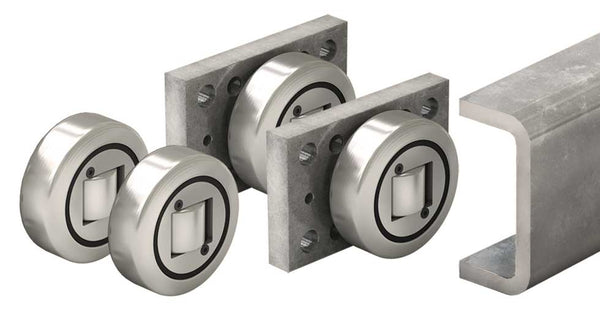

Hevi-Rail-063 is available in both fixed and adjustable axial bearing options. It includes various interchangeable components, such as U-Channels and Flange Plates, which can be pre-welded upon request. Rails and bearings should be ordered separately from the items listed below.

MAX System Static Load: Radial = 59.20 kN, Axial = 18.50 kN
