Heavy Duty Linear Rail HVR-S-1500 - Steel U-Channel 1500m...

Heavy Duty Linear Rail HVR-S-1500 - Steel U-Channel 1500mm for Hevi-Rail Linear Guide Roller HVB-053

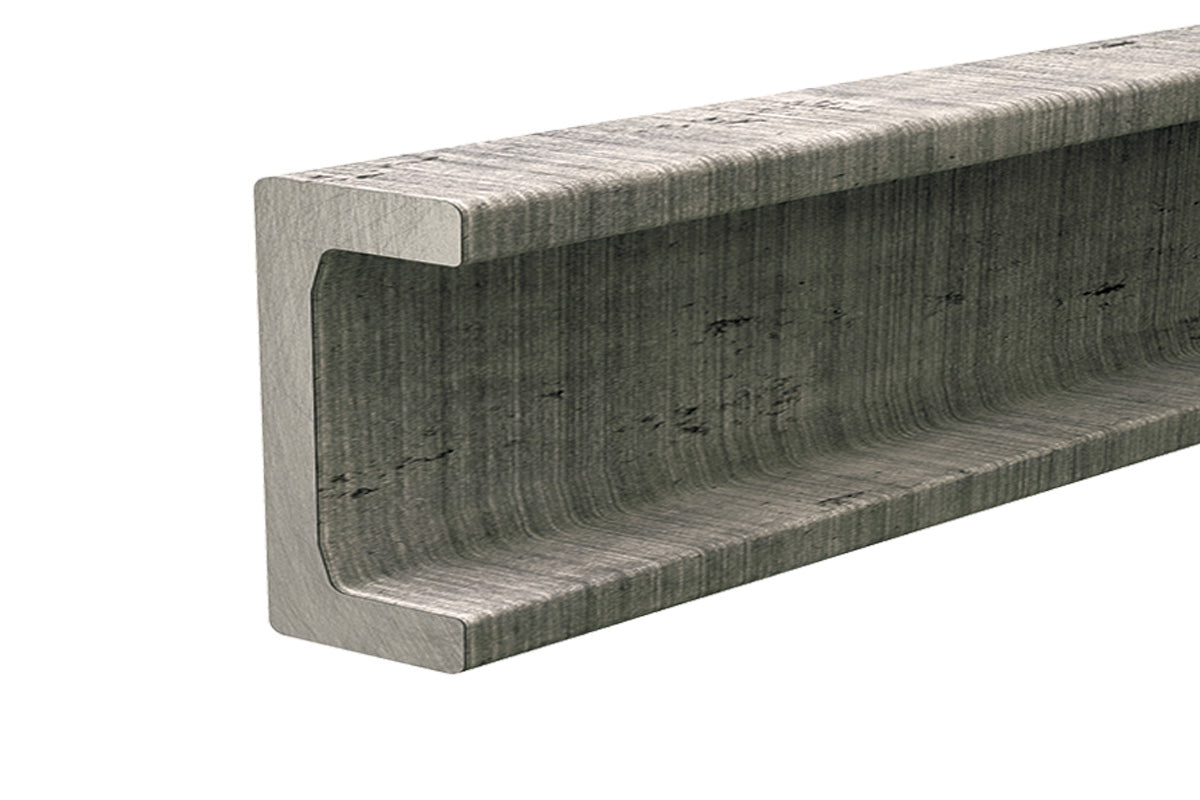

U-Channel Heavy Duty Linear Rail made of steel and 1500mm long, for roller bearings HVB-053 and HVBEA-453 (eccentric adjustable) of the Hevi-Rail linear guide system. The material composition of the rail is 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for durability and even force dispersion over a lifetime of continuous use.

  • Linear Rail only
  • Compatible with wheel part number HVB-053
  • 65mm rail width
  • U-Channel Rail
  • Hevi-Rail linear guides offer easily interchangeable components

PDF View Catalog

3D Models

TypeFileFormatLink
3dHVR-S-1500.htmlhtmlView
cadHVR-S-1500.stepSTEP AP214Download
$141.25
Configure Custom Features
Ask about this product
Dimensions
Videos
Resources

Product Dimensions

weightwidthlengthheight
17.72 lbs0 in59.06 in0 in
