Hardened Crown Roller Bearing for Linear Guides PAC3016 Diameter: 1 5/8" - Inch Series Threading
$22.10
Hardened Crown Roller Bearing for PAC2245 and PAC2247 Linear Rails. The inch threaded rollers have a diameter of 1.625 inches and are fitted with polyamide 6/6 seals to glide smoothly within a Cooper B-Line Series rail. They feature a 9/16" hex head for straightforward mounting. This inch thread is 5/16-18..
$22.10
Steel linear guide carriage for 30mm wide Redi-Rail RR30 linear rails with 3 double row, sealed, carbon steel roller bearings that can be adjusted for pre-load from a hole in the side. Carriage only 3 Double Row Roller Bearings made of Carbon Steel Adjustable Preloaded Rollers Compatible with rail part..
$131.72
Fixed heavy duty linear roller bearing with a 52.5mm OD and an HVPS-1 welded horizontal flange plate, which is easy to mount. This is part of the Hevi-Rail linear guide system, designed to handle substantial axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-S U-Type, these linear bearings..
$215.25
Linear Rail Guide Carriage CR45MCA Commercial Rail Slider, Width: 45mm with 3 Steel Roller Bearings
$114.89
Linear Guide Carriage of 45mm width and 120mm length, matching linear rail part number CR45. The body is made of anodized aluminum while the 3 roller bearings are made of sealed 52100 chrome steel, hardened and ground, lubricated for life, and sealed against contamination. Carriage Only - matching rail part..
$114.89

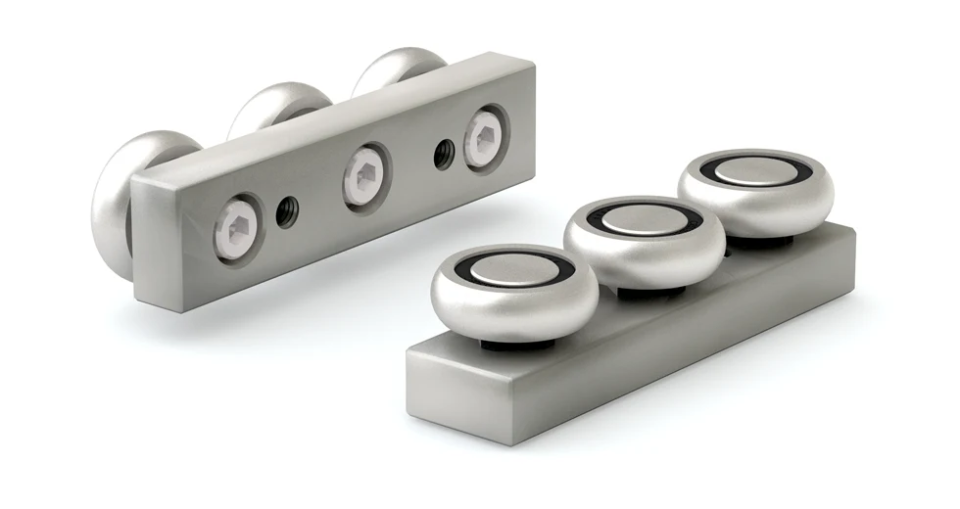

Linear Rail Guide Carriage CR20MCA Commercial Rail Slider, Width: 20mm with 3 Steel Roller Bearings
$91.63
Linear Guide Carriage of 20mm width and 60mm length, matching linear rail part number CR20. The body is made of anodized aluminum while the 3 roller bearings are made of sealed 52100 chrome steel, hardened and ground, lubricated for life, and sealed against contamination. Carriage Only - matching rail part..
$91.63
Linear Rail Guide Carriage CR30MCA Commerical Rail Slider, Width 30mm with 3 Steel Roller Bearings
$102.76
Linear Guide Carriage of 30mm width and 80mm length, matching linear rail part number CR30. The body is made of anodized aluminum while the 3 roller bearings are made of sealed 52100 chrome steel, hardened and ground, lubricated for life, and sealed against contamination. Carriage Only - matching rail part..
$102.76
Fixed Heavy Duty Roller Bearing with a 62mm OD and an HVP0-1 welded horizontal flange plate, which is easy to mount. This is part of the Hevi-Rail linear guide system, designed to handle substantial axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-0 U-Type and HVRI-07 I-channel, these..
$219.88
Steel linear guide carriage for 34mm wide Redi-Rail RR14 linear rails with 3 double row, sealed, carbon steel roller bearings that can be adjusted for pre-load from a hole in the side. Carriage only 3 Double Row Roller Bearings made of Carbon Steel Adjustable Preloaded Rollers Compatible with rail part..
$98.55
Fixed Heavy Duty Linear Roller Bearing with a 62mm diameter, part of the Hevi-Rail Linear Guide system, designed to handle substantial axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-0 U-Type. The roller bearing is crafted from durable case-hardened S450J2 MOD. carbon steel, offering long-lasting heavy-duty performance, while..
$116.06
Eccentric Adjustable Roller Bearing HVBEA-455-HVP1 w/ Flange Plate for Hevi-Rail Linear Guide HVR-1
$245.44
Eccentric Adjustable Heavy Duty Roller Bearing with a 70.1mm OD and an HVP1-1 welded horizontal flange plate that's easy to mount. This is part of the Hevi-Rail linear guide system, designed to handle substantial axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-1 U-Type or HVRI-07 I-Type, these..
$245.44
Steel linear guide carriage for 1.92 inch wide Redi-Rail RR18 linear rails with 3 double row, sealed, carbon steel roller bearings that can be adjusted for pre-load from a hole in the side. Carriage only Steel Material - 3 Roller Bearings made of Carbon Steel Compatible with linear rail part..
$134.26
Heavy Duty Linear Rail HVR-0-2500 - Steel U-Channel 2500mm for Hevi-Rail Linear Guide Roller HVB-054
$357.20
U-Channel Heavy Duty Linear Rail made of steel and 2500mm long, for roller bearings HVB-054 and HVBEA-454 (eccentric adjustable) of the Hevi-Rail linear guide system. The rail specifically consists of 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for even force..
$357.20
Heavy Duty Linear Rail HVR-S-2500 - Steel U-Channel 2500mm for Hevi-Rail Linear Guide Roller HVB-053
$300.13
U-Channel Heavy Duty Linear Rail made of steel and 2500mm long, for roller bearings HVB-053 and HVBEA-453 (eccentric adjustable) of the Hevi-Rail linear guide system. The rail specifically consists of 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210). Hevi-Rail guides feature interchangeable components for durability and..
$300.13
Unpainted steel linear rail of 72" length for hardened crown roller linear guides. These uncoated rails are available in lengths 12", 24", 48" and 72". PAC2247 rails with black powder coating are also available. For a complete functional system, pair with these components sold separately: Hardened crown roller bearings: PAC3016..
$113.92
Fixed Heavy-Duty Roller Bearing HVB-056-HVP2 w/ Flange Plate for Hevi-Rail Linear Guide HVR-2
$252.32
Fixed Heavy Duty Roller Bearing with a 77.7mm OD and an HVP2-1 welded horizontal flange plate. This is part of the Hevi-Rail linear guide system, designed to handle substantial axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-2 U-Type, these linear bearings are crafted from durable case hardened..
$252.32
Steel linear guide carriage for 45mm wide Redi-Rail RR45 linear rails with 3 double row, sealed, carbon steel roller bearings that can be adjusted for pre-load from a hole in the side. Carriage only 3 Double Row Roller Bearings made of Carbon Steel Adjustable Preloaded Rollers Compatible with gothic arch..
$148.63
Steel V-Wheel, 60mm outer diameter (Size 4) and permanently sealed and lubricated. V-Guide wheels are precision-ground, dual-row angular contact roller bearings with hardened outer surfaces, offering low-friction guidance for linear motion applications. They can be used with internal or external 90-degree rails, as well as round shafts. Size 4 =..
$62.16
Fixed heavy-duty roller bearing with 70.1mm outer diameter from the Hevi-Rail linear guide system, built to withstand extreme axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-1 U-Type and HVRI-07 I-Type, these linear roller bearings are crafted from durable case hardened S450J2 MOD carbon steel, offering long-lasting heavy-duty..
$123.82
Individual end stop (buy two for a pair) for PBC Linear hardened crown roller linear guides, designed to securely cap the ends of Cooper B-Line compatible steel channel rails (PAC2245 / PAC2247 series, nominal 1-5/8" profile). The end stop prevents the hardened crown roller bearings (PAC3016 / PAC3016M) from traveling..
$4.97
Fixed Heavy Duty Roller Bearing with a 70.1mm OD and an HVP1-1 welded horizontal flange plate, which is easy to mount. This is part of the Hevi-Rail linear guide system, designed to handle substantial axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-1 U-Type or HVRI-07 I-Type, these..
$229.13

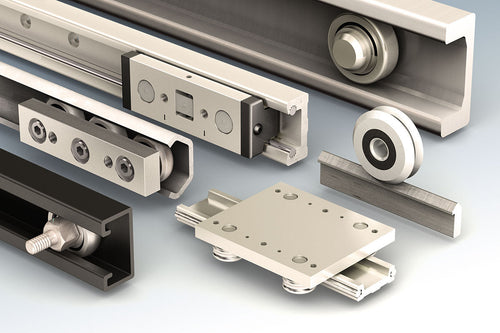

Cam roller linear guides combine hardened or machined linear rails with rolling-element carriages to create rugged, high-speed linear motion systems that excel with cantilevered loads, unlike plain bearing guides that must follow the 2:1 binding rule. Cam Roller Technology (CRT) uses durable guide rails and hardened cam roller bearings to deliver smooth, reliable motion in moderate- to heavy-load conditions, with strong tolerance for contamination, long travel, and repeated cycling. The CRT product line, made in the USA, includes Redi-Rail® Guides, Steel Rail®, Steel Rail Plus® systems, Integral-V™ V-wheel guides, V-Guide® V-wheel guides, Commercial Rail Guides®, and hardened crown roller guides for cost-effective linear motion. Hevi-Rail® extends the category into heavy-duty industrial linear guide systems for extreme loads, long travel lengths, shock, vibration, and harsh operating environments, using high-capacity steel cam rollers and axial bearings for exceptional load support. Individual cam followers, or stud-mounted cam rollers, are also available for replacement, repair, rebuilds and custom guide assemblies.
- Temperature Rating: -4°F to +176°F (-20°C to +80°C); Hevi-Rail: -22°F to +248°F
- Maximum Load: Up to 13,308 lb (59 kN)
- Maximum Speed: Up to 8 m/s (315 in/s)
