Redi-Rail Linear Guides - Linear Rails with Gothic Arch Raceways and Sliders

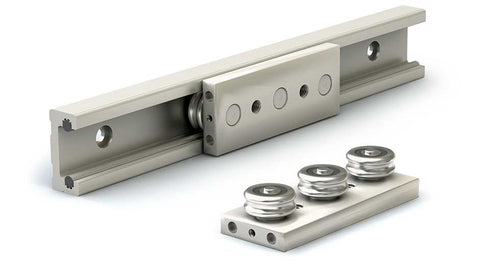

Linear Guides of the Redi-Rail Series feature carriages (sliders) equipped with sealed RC60 or stainless steel roller bearings that can be easily adjusted for pre-load. The sliders glide on precision linear rails with gothic arch raceways, constructed from hardened or stainless steel for lightweight, corrosion-resistant performance. Redi-Rail is ideal as an alternative for profile rail and great for high-speed, moderate-load automation tasks. Additional benefits include oil-impregnated wiper seals for self-lubrication and built-in wheel seals for protection in tough conditions. Available in both inch and metric sizes, with a patented side adjustment (metric only) for preload. Rails maintain parallelism within 0.050 mm and can extend up to 6,000 mm.
Redi-Rail Linear Guides - Linear Rails with Gothic Arch Raceways and Sliders
Redi-Rail Linear Guides - Linear Rails with Gothic Arch Raceways and Sliders
Linear Guides of the Redi-Rail Series feature carriages (sliders) equipped with sealed RC60 or stainless steel roller bearings that can be easily adjusted for pre-load. The sliders glide on precision linear rails with gothic arch raceways, constructed from hardened or stainless steel for lightweight, corrosion-resistant performance. Redi-Rail is ideal as an alternative for profile rail and great for high-speed, moderate-load automation tasks. Additional benefits include oil-impregnated wiper seals for self-lubrication and built-in wheel seals for protection in tough conditions. Available in both inch and metric sizes, with a patented side adjustment (metric only) for preload. Rails maintain parallelism within 0.050 mm and can extend up to 6,000 mm.
- Patented side adjustment feature (only in metric sizes) makes setting preload easy
- Standard oil-impregnated wiper seals self-lubricate shaft raceways.
- Wheels feature integral seals for protection in contaminated environments.
- Precision-machined rails ensure shaft raceways are parallel within 0.050 mm
- Available in 3-, 4-, and 5-roller carriage options
- Continuous rail lengths up to 6,000 mm (236 in)
