Flanged Plain Linear Bearings | Self- Lubricating

The Single Square (SFPM) Flange Mount Metric Linear Plain Bearing is the ISO Metric single length version. The flange is located at one end of the flange bearing.

• Available in sizes 8 mm ID to 80 mm ID
• Static Load Capacities up to 284,765 N (63,900 lb)

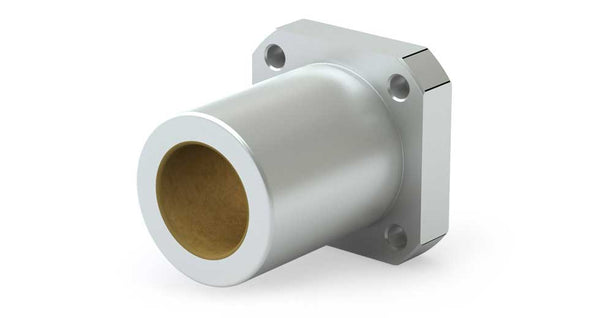

The Square and Compensated (SFPMC) Flange Mount Single Metric Linear Plain Bearing is the ISO Metric single length version that has a compensated running clearance. The compensated running clearance indicates there is additional clearance built into the inner diameter so the Linear Flange Bearing operates similar to a linear ball bearing making it ideally suited for parallel shaft applications.

• Available in sizes 8 mm ID to 80 mm ID
• Static Load Capacities up to 284,765 N (63,900 lb)

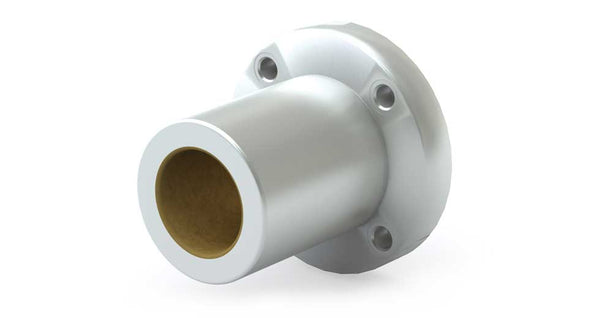

Round (SFPMR) Flange Mount Single Metric Linear Plain Bearings are the ISO Metric single length versions of this type of bearing. The round flange is located at one end of the bearing.

• Available in sizes 8 mm ID to 80 mm ID
• Static Load Capacities up to 284,765 N (63,900 lb)

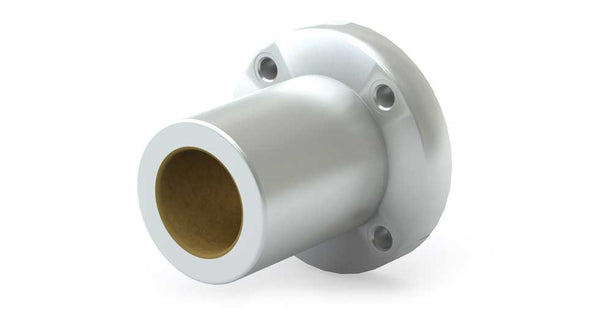

Round (SFPMR) Compensated Flange Mount Single Metric Linear Plain Bearings are the ISO Metric single length versions of this type of bearing. The flange is located at one end of the bearing and has a compensated running clearance. The compensated running clearance indicates there is additional clearance built into the inner diameter so the Linear Flange Bearing operates similar to a linear ball bearing making it ideally suited for parallel shaft applications.

• Available in sizes 8 mm ID to 80 mm ID
• Static Load Capacities up to 284,765 N (63,900 lb)

These Flange Mount Linear Bearings are ISO Metric double-length variants of this bearing type, with the flange positioned at the center of the flange bearing.

• Available in sizes 8 mm ID to 60 mm ID
• Static Load Capacities up to 188,980 N (42,200 lb)

This is the ISO Metric double-length, center-mounted version, featuring a square flange positioned at the center of the flange bearing with a compensated running clearance. The compensated running clearance means there is extra clearance in the inner diameter, allowing the Linear Flange Bearing to function like a linear ball bearing, making it perfect for parallel shaft applications.

• Available in sizes 8 mm ID to 60 mm ID
• Static Load Capacities up to 188,980 N (42,200 lb)

This is the ISO Metric double length, center mount version of this type of flange bearing which has the flange located at the center of the bearing.

• Available in sizes 8 mm ID to 60 mm ID
• Static Load Capacities up to 188,980 N (42,200 lb)

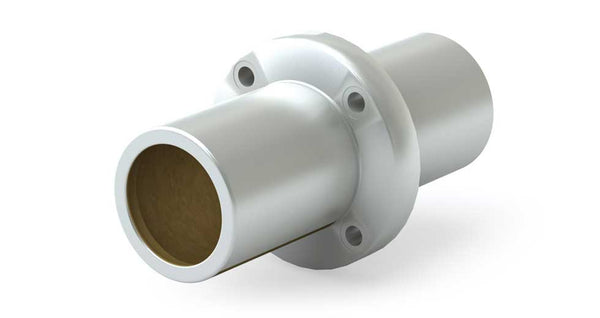

This flange bearing has a compensated running clearance and is the ISO Metric double length, center mount version with the round flange at the center. The compensated running clearance provides extra space in the inner diameter, enabling the Linear Flange Bearing to operate similarly to a linear ball bearing, making it ideal for parallel shaft applications.

• Available in sizes 8 mm ID to 60 mm ID
• Static Load Capacities up to 188,980 N (42,200 lb)

The ISO Metric Double Length Flange Linear Bearing with the flange located at one end of the linear flange bearing.

• Available in sizes 8 mm ID to 60 mm ID
• Static Load Capacities up to 188,980 N (42,200 lb)

This flange bearing has a compensated running clearance and a square flange located at one end of the linear flange bearing. This is the ISO Metric double length version of this type of bearing. The compensated running clearance provides extra space in the inner diameter, enabling the Linear Flange Bearing to operate similarly to a linear ball bearing, making it ideal for parallel shaft applications.

• Available in sizes 8 mm ID to 60 mm ID
• Static Load Capacities up to 188,000 N (42,200 lb)

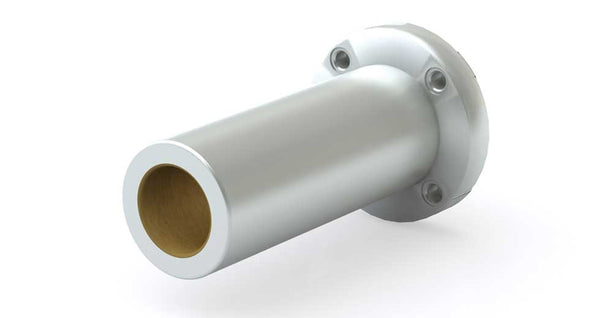

This ISO Metric Double-Length Flange Linear Bearing has a round flange at one end.

• Available in sizes 8 mm ID to 60 mm ID
• Static Load Capacities up to 188,980 N (42,200 lb)

This ISO Metric Double-Length Flange Linear Bearing has a compensated for running clearance and a round flange at one end of the linear flange bearing. The compensated running clearance means there is extra clearance in the inner diameter, allowing the Linear Flange Bearing to function like a linear ball bearing, making it perfect for parallel shaft applications.

• Available in sizes 8 mm ID to 60 mm ID
• Static Load Capacities up to 188,980 N (42,200 lb)

The double-length version of this type of flange linear bearing, the square flange, is at one end.

• Available in sizes 6 mm ID to 60 mm ID
• Static Load Capacities up to 188,980 N (42,200 lb)

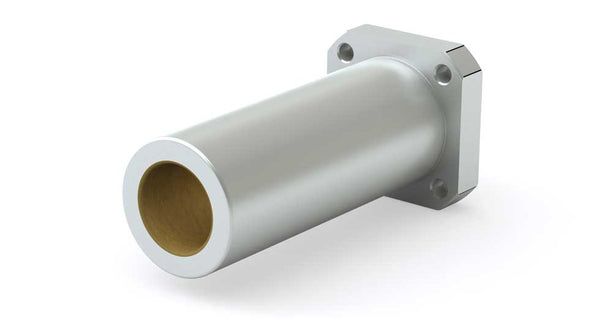

The double length version of this type of flange bearing with a compensated running clearance, the square flange is located at one end of the linear flange bearing. The compensated running clearance offers additional space in the inner diameter, allowing the Linear Flange Bearing to function like a linear ball bearing, which makes it well-suited for parallel shaft applications.

• Available in sizes 6 mm ID to 60 mm ID
• Static Load Capacities up to 188,980 N (42,200 lb)

The double length version of this type of flange linear bearing has a round flange located at one end of the bearing.

• Available in sizes 6 mm ID to 60 mm ID
• Static Load Capacities up to 188,000 N (42,200 lb)

The double length JIS Metric flange linear bearing has a compensated running clearance and a round flange located at one of the bearing. The compensated running clearance offers additional space in the inner diameter, allowing the Linear Flange Bearing to function like a linear ball bearing, which makes it well-suited for parallel shaft applications.

• Available in sizes 6 mm ID to 60 mm ID
• Static Load Capacities up to 188,000 N (42,200 lb)

This Flange Mount Bearing is the JIS Metric single length version of this type of linear bearing. The square flange is located at one end of the bearing.

• Available in sizes 6 mm ID to 80 mm ID
• Static load capacities up to 241,620 N (54,000 lb)

This is the JIS Metric single length version of this type of the linear flange bearing. It has a compensated running clearance, and the flange is located at one end of the linear flange bearing. The compensated running clearance provides extra room in the inner diameter, enabling the Linear Flange Bearing to operate like a linear ball bearing, making it ideal for parallel shaft applications.

• Available in sizes 6 mm ID to 80 mm ID
• Static load capacities up to 241,620 N (54,000 lb)

This is the JIS Metric single length version of our flange linear bearing line. The round flange is located at one end of the linear flange bearing.

• Available in sizes 6 mm ID to 80 mm ID
• Static load capacities up to 241,620 N (54,000 lb)

This is the JIS Metric single length version of the linear flange bearing line. The circular flange is positioned at one end of the bearing and features compensated running clearance. The compensated running clearance provides extra room in the inner diameter, enabling the Linear Flange Bearing to operate like a linear ball bearing, making it ideal for parallel shaft applications.

• Available in sizes 6 mm ID to 80 mm ID
• Static load capacities up to 241,620 N (54,000 lb)

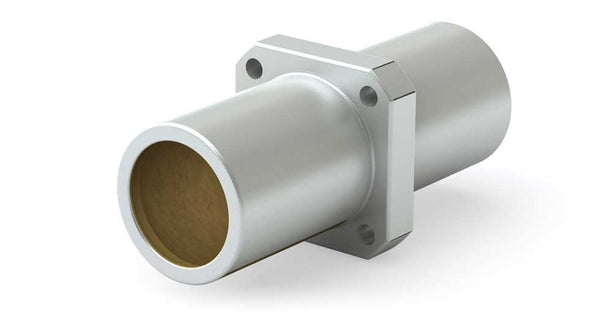

These Flange Mount JIS Metric Linear Bearings are the double length version of this type of linear bearing with a square flange at the center.

• Available in sizes 6 mm ID to 60 mm ID
• Static Load Capacities up to 188,000 N (42,200 lb)

This flange mount metric linear bearing features a compensated running clearance, double length and a square flange at the center. The compensated running clearance creates extra space in the inner diameter, allowing the Linear Flange Bearing to function like a linear ball bearing, making it perfect for parallel shaft applications.

• Available in sizes 6 mm ID to 60 mm ID
• Static Load Capacities up to 188,980 N (42,200 lb)
