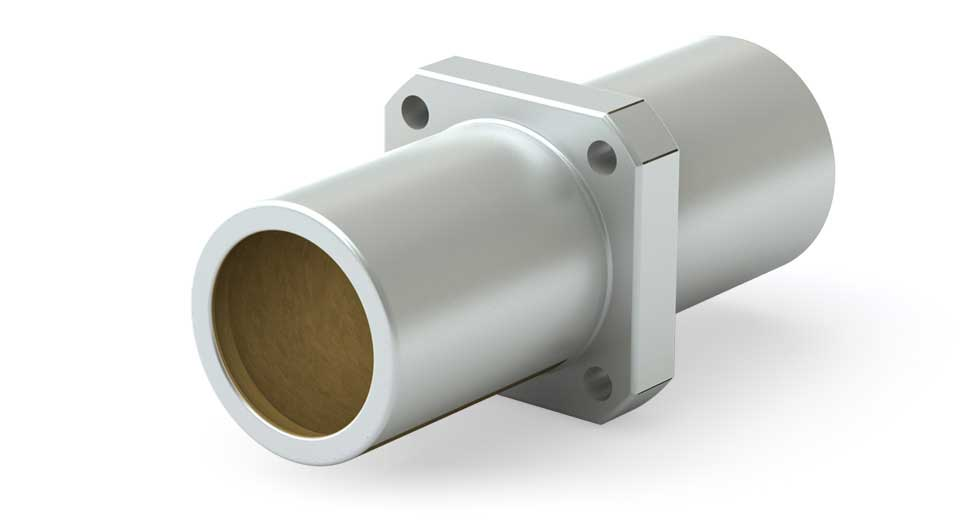

Plain Linear Bearing CFPJ12 12mm JIS Metric, Square Flange Center, Double Wide
JIS double plain linear bearing, 12mm ID, square center flange, precision running clearance. This Simplicity® bearing has a self-lubricating FrelonGOLD® liner bonded directly to the bore of a sturdy anodized aluminum body, with no separate insert, for maintenance-free, oil-free sliding in harsh environments such as extreme heat, dirt, welding splatter, and vibration, where ball bearings often fail. Its double-sized body equals two standard bearings back-to-back for added support, while the flange enables stable bolt-down mounting. JIS refers to Japanese Industrial Standards metric dimensions.
- Self-Lubricating Bearing Liner: FrelonGOLD® is standard
- Optional liners include Frelon® W (FDA compliant) Frelon® J
- Outer Shell: Anodized Aluminum Alloy
- Temperature Rating: -400°F/+400°F or -240°C/204°C
- Maximum Speed: Up to 8 m/s (315 in/s)
- Vibration Damping: Ensures smooth and quiet operation
