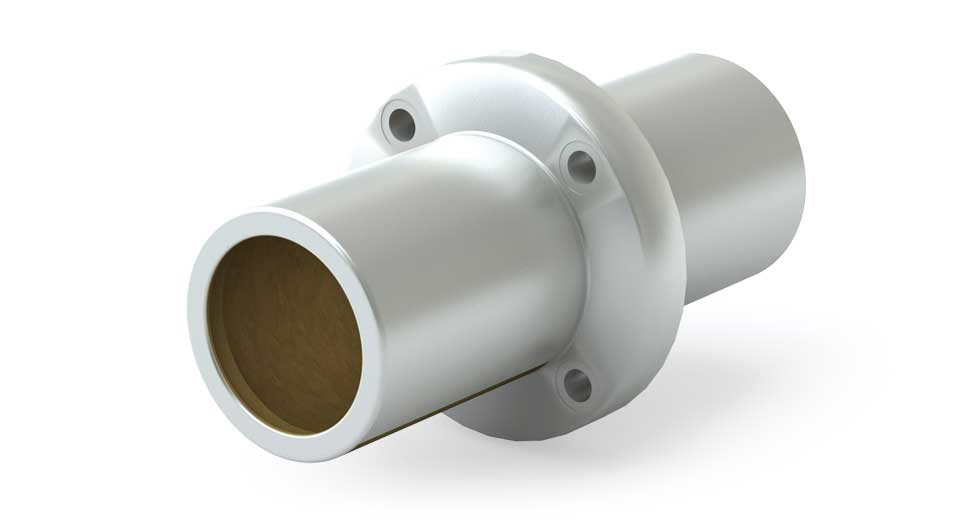

Plain Linear Bearing CFPMR20 20mm ID - Round Flange Center, Double Wide
Double plain linear bearing, 20mm ID, round center flange, precision running clearance. This Simplicity® bearing uses a self-lubricating FrelonGOLD® liner bonded directly to the bore of a sturdy aluminum body, without a separate bearing insert. The result is maintenance-free, oil-free sliding performance in extreme conditions such as heat, dirt, and vibration, where ball bearings often fail. The double size is equivalent to two standard-sized bearings back-to-back, providing a longer bearing surface for added support, while the flange allows stable bolt-down mounting. Precision clearance provides a tighter running fit than compensated clearance for applications that prioritize shaft fit and accuracy.
- ISO Metric - Closed - Round Flanged Center Mount
- Double sized as if two standard plain linear bearings were joined end to end
- Precision running clearance 0.0005" per side
- Self-Lubricating Liner: FrelonGOLD® performs well in harsh, dirty, shock-loading, or high-temperature environments where ball bearings often fail
- Optional liners: corrosive chemical resistant Frelon®J & FDA Compliant Frelon®W
- Temperature Rating: -400°F/+400°F or -240°C/204°C
- Vibration Damping: Ensures smooth and quiet operation
