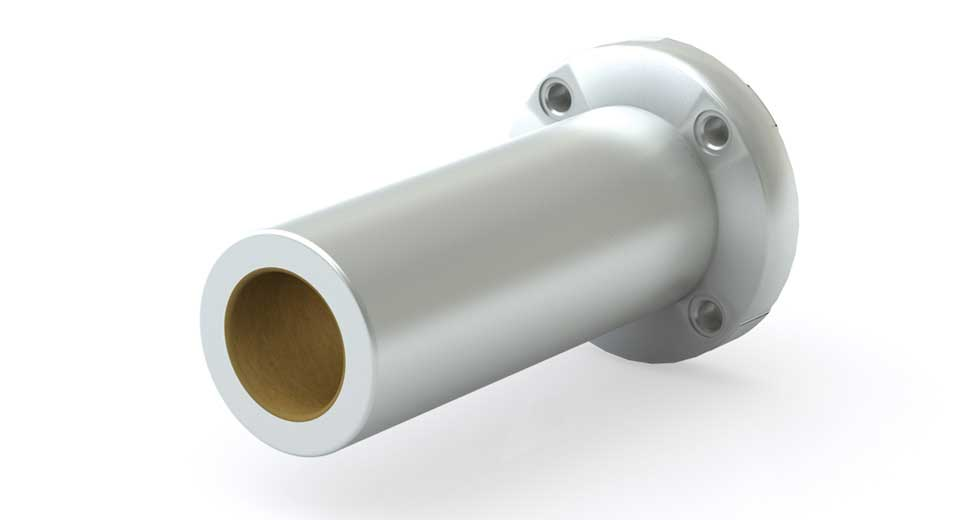

Double Plain Linear Bearing DFPMR25C 25mm ID Round Flange End, Compensated Clearance

Extended Plain Linear Bearing with a 25mm compensated ID consisting of a round flanged aluminum housing (end mount) with a self-lubricating FrelonGold® lining for maintenance-free linear, rotational or oscillating motion in harsh conditions like extreme heat, dirt, and vibration.

• Extended closed aluminum housing with self-lubricating FrelonGOLD® liner
• Round Flanged End Mount
• Compensated ID running clearance (0.0015" per side)

• Optional liners include corrosive chemical resistant Frelon®J or FDA compliant Frelon®W for food and drug handling machinery

• Temperature Rating: -400°F/+400°F or -240°C/204°C
• Operates in any orientation with linear, rotational & oscillating shaft motion
• Static Load Capacities up to 166,000 lb (740 kN)

• Variant ID sizes are 5mm to 80mm ISO Metric

• Maximum Speed: Up to 8 m/s (315 in/s)
• Shaft Lengths: Up to 12 feet (3.7 meters)

• Vibration Damping: Ensures smooth and quiet operation

• Interchangeable with linear ball bearings and some bronze bushings
