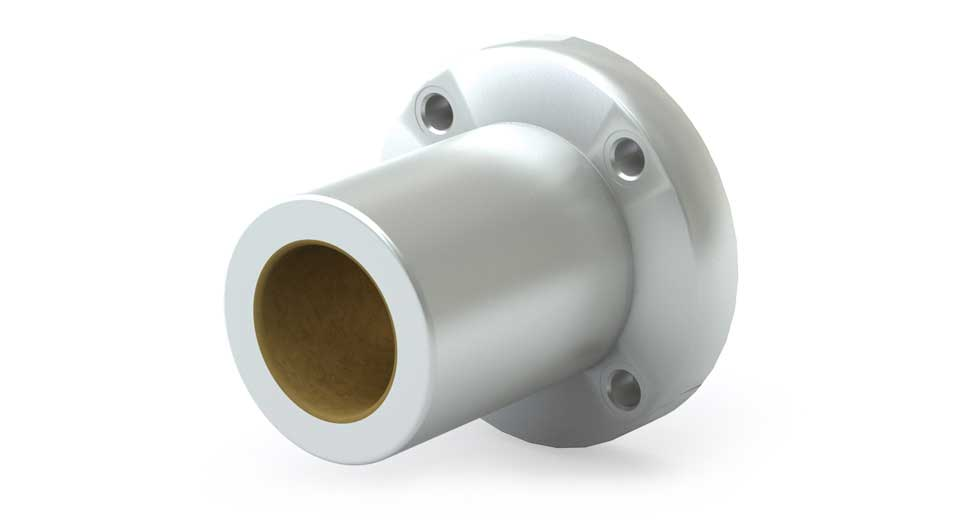

Plain Linear Bearing - Round Flange SFPMR40C 40mm Compensated ID
Round flanged plain linear bearing with a 40mm ID. A compensated running clearance of 0.0015" per side allows pairing with another bearing on a parallel shaft with imperfect alignment. The FrelonGOLD® liner bonded to the bore of the lightweight, durable flanged aluminum housing, ensures maintenance-free performance in harsh conditions such as dirt, vibration, and extreme temperatures. This Simplicity® bearing supports smooth linear, oscillating, and rotational movement with superior vibration damping for quiet, reliable operation.
- Compensated 0.0015” per side clearance aids alignment and speed
- Temperature range -240°C to 204°C (-400°F to +400°F) fits harsh conditions
- Supports linear and rotational movement for versatile applications
- Optional liners: Frelon® J for corrosive chemical environments or FDA-approved Frelon® W liners for food-grade applications
- Maximum Speed: Up to 8 m/s (315 in/s)
