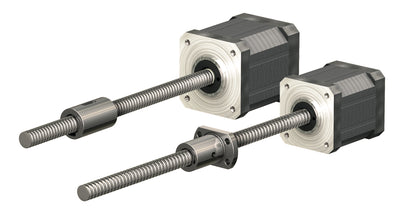

Miniature Ball Screw Linear Actuators - BS Series

Get rolling with our miniature metric ball screw motor series. The assemblage of screw, cylindrical-style nut, and NEMA 8 motor combine to create a high-performance linear motion actuator. Cylindrical-style nuts allow for a more compact assembly design than their flange counterpart. Cylindrical-style nuts mount into specially designed housings, while a keyway in the nut mates with the housing to keep the nut from rotating within the housing.

• 6 x 1(diameter x lead)
• NEMA 8 motor (16 mm) is compatible with 6 mm diameter screw size
• Utilizes a multi-liner ball return system
• Static axial load up to 135 N (30.3 lb.) due to motor mechanical limit
• Polymer wipers located at each end of the nut help prevent the ingress of debris and particulates
• Standard, no preload (Standard backlash clearance held to 0.05 mm max)
• Standard and special machined journals available (Fixed or Floating)
• Fixed and floating end blocks available
• Standard ball screw assemblies come assembled. Also available as unassembled.
• Ask about custom ball screw designs

Get rolling with our miniature metric ball screw motor series. The assemblage of screw, cylindrical-style nut, and NEMA 11 motor combine to create a high-performance linear motion actuator. Cylindrical-style nuts allow for a more compact assembly design than their flange counterpart. Cylindrical-style nuts mount into specially designed housings, while a keyway in the nut mates with the housing to keep the nut from rotating within the housing.

• 6 x 1 (diameter x lead)
• NEMA 11 motor (23) is compatible with 6 mm diameter screw size
• Utilizes a multi-liner ball return system
• Static load rating of 135 N (30.3 lb.) due to motor mechanical limit
• Polymer wipers located at each end of the nut help prevent the ingress of debris and particulates
• Standard, no preload (Standard backlash clearance held to 0.05 mm max)
• Standard and special machined journals available (Fixed or Floating)
• Fixed and floating end blocks available
• Standard ball screw assemblies come assembled. Also available as unassembled.
• Ask about custom ball screw designs

Get rolling with our miniature metric ball screw motor series. The assemblage of screw, cylindrical-style nut, and NEMA 14 motor combine to create a high-performance linear motion actuator. Cylindrical-style nuts allow for a more compact assembly design than their flange counterpart. Cylindrical-style nuts mount into specially designed housings, while a keyway in the nut mates with the housing to keep the nut from rotating within the housing.

• Five available sizes: 6 x 1, 8 x 1, 8 x 2, 8 x 2.5, 10 x 2 (diameter x lead)
• NEMA 14 motor (31) is compatible with 6, 8, and 10 mm diameter screw sizes
• Utilizes a multi-liner ball return system
• Static load rating of 320 N (72 lb.) due to motor mechanical limit
• Polymer wipers located at each end of the nut help prevent the ingress of debris and particulates
• Standard, no preload (Standard backlash clearance held to 0.05 mm max)
• Standard and special machined journals available (Fixed or Floating)
• Fixed and floating end blocks available
• Standard ball screw assemblies come assembled. Also available as unassembled.
• Ask about custom ball screw designs

Get rolling with our miniature metric ball screw motor series. The assemblage of screw, cylindrical-style nut, and NEMA 17 motor combine to create a high-performance linear motion actuator. Cylindrical-style nuts allow for a more compact assembly design than their flange counterpart. Cylindrical-style nuts mount into specially designed housings, while a keyway in the nut mates with the housing to keep the nut from rotating within the housing.

• Five available sizes: 6 x 1, 8 x 1, 8 x 2, 8 x 2.5, 10 x 2 (diameter x lead)
• NEMA 17 single stack motor (43 mm) is compatible with 6, 8, and 10 mm diameter screw sizes (Double stack NEMA 17 motor requires a 10 mm diameter screw)
• Utilizes a multi-liner ball return system
• Static axial load up to 320 N (72 lb.) due to motor mechanical limits
• Polymer wipers located at each end of the nut help prevent the ingress of debris and particulates
• Standard, no preload (Standard backlash clearance held to 0.05 mm max)
• Standard and special machined journals available (Fixed or Floating)
• Fixed and floating end blocks available
• Standard ball screw assemblies come assembled. Also available as unassembled.
• Ask about custom ball screw designs

Get rolling with our miniature metric ball screw motor series. The assemblage of screw, cylindrical-style nut, and NEMA 23 motor combine to create a high-performance linear motion actuator. Cylindrical-style nuts allow for a more compact assembly design than their flange counterpart. Cylindrical-style nuts mount into specially designed housings, while a keyway in the nut mates with the housing to keep the nut from rotating within the housing.

• 10 x 2 (diameter x lead)
• NEMA 23 motors (43 mm) are compatible with 10 mm diameter screw (Includes NEMA 23 single stack, double stack, and Power Plus)
• Utilizes a multi-liner ball return system
• Static axial load to 1050 N (236 lb.) due to motor mechanical limit
• Polymer wipers located at each end of the nut help prevent the ingress of debris and particulates
• Standard, no preload (Standard backlash clearance held to 0.05 mm max)
• Standard and special machined journals available (Fixed or Floating)
• Fixed and floating end blocks available
• Standard ball screw assemblies come assembled. Also available as unassembled.
• Ask about custom ball screw designs

Get rolling with our miniature metric ball screw motor series. The assemblage of screw, flange-style nut, and NEMA 8 motor combine to create a high-performance linear motion actuator. Flanged ball nuts are mounted to a plate or block using bolts or screws that are secured through the provided holes. Flange-style nuts can often be easier to remove and install in an assembly, provided the mounting screws are easily accessible.

• 6 x 1 (diameter x lead)
• NEMA 8 motor (16 mm) is compatible with 6 mm diameter screw size
• Utilizes a multi-liner ball return system
• Static axial load to 135 N (30.3 lb.) due to motor mechanical limit
• Polymer wipers located at each end of the nut help prevent the ingress of debris and particulates
• Standard, no preload (Standard backlash clearance held to 0.05 mm max)
• Standard and special machined journals available (Fixed or Floating)
• Fixed and floating end blocks available
• Standard ball screw assemblies come assembled. Also available as unassembled.
• Ask about custom ball screw designs

Get rolling with our miniature metric ball screw motor series. The assemblage of screw, flange-style nut, and NEMA 11 motor combine to create a high-performance linear motion actuator. Flanged ball nuts are mounted to a plate or block using bolts or screws that are secured through the provided holes. Flange-style nuts can often be easier to remove and install in an assembly, provided the mounting screws are easily accessible.

• 6 x 1 (diameter x lead)
• NEMA 11 motor (23) is compatible with 6 mm diameter screw size
• Utilizes a multi-liner ball return system
• Static axial load to 135 N (30.3 lb.) due to motor mechanical limit
• Polymer wipers located at each end of the nut help prevent the ingress of debris and particulates
• Standard, no preload (Standard backlash clearance held to 0.05 mm max)
• Standard and special machined journals available (Fixed or Floating)
• Fixed and floating end blocks available
• Standard ball screw assemblies come assembled. Also available as unassembled.
• Ask about custom ball screw designs

Get rolling with our miniature metric ball screw motor series. The assemblage of screw, flange-style nut, and NEMA 14 motor combine to create a high-performance linear motion actuator. Flanged ball nuts are mounted to a plate or block using bolts or screws that are secured through the provided holes. Flange-style nuts can often be easier to remove and install in an assembly, provided the mounting screws are easily accessible.

• Five available sizes: 6 x 1, 8 x 1, 8 x 2, 8 x 2.5, 10 x 2 (diameter x lead)
• NEMA 14 motor (31) is compatible with 6, 8, and 10 mm diameter screw sizes
• Utilizes a multi-liner ball return system
• Static axial load to 320 N (72 lb.) due to moter mechanical limit
• Polymer wipers located at each end of the nut help prevent the ingress of debris and particulates
• Standard, no preload (Standard backlash clearance held to 0.05 mm max)
• Standard and special machined journals available (Fixed or Floating)
• Fixed and floating end blocks available
• Standard ball screw assemblies come assembled. Also available as unassembled.
• Ask about custom ball screw designs

Get rolling with our miniature metric ball screw motor series. The assemblage of screw, flange-style nut, and NEMA 17 motor combine to create a high-performance linear motion actuator. Flanged ball nuts are mounted to a plate or block using bolts or screws that are secured through the provided holes. Flange-style nuts can often be easier to remove and install in an assembly, provided the mounting screws are easily accessible.

• Five available sizes: 6 x 1, 8 x 1, 8 x 2, 8 x 2.5, 10 x 2 (diameter x lead)
• NEMA 17 single stack motor (43 mm) is compatible with 6, 8, and 10 mm diameter screw sizes (Double stack NEMA 17 motor requires a 10 mm diameter screw)
• Utilizes a multi-liner ball return system
• Static axial load to 320 N (72 lb.) due to motor mechanical limit
• Polymer wipers located at each end of the nut help prevent the ingress of debris and particulates
• Standard, no preload (Standard backlash clearance held to 0.05 mm max)
• Standard and special machined journals available (Fixed or Floating)
• Fixed and floating end blocks available
• Standard ball screw assemblies come assembled. Also available as unassembled.
• Ask about custom ball screw designs

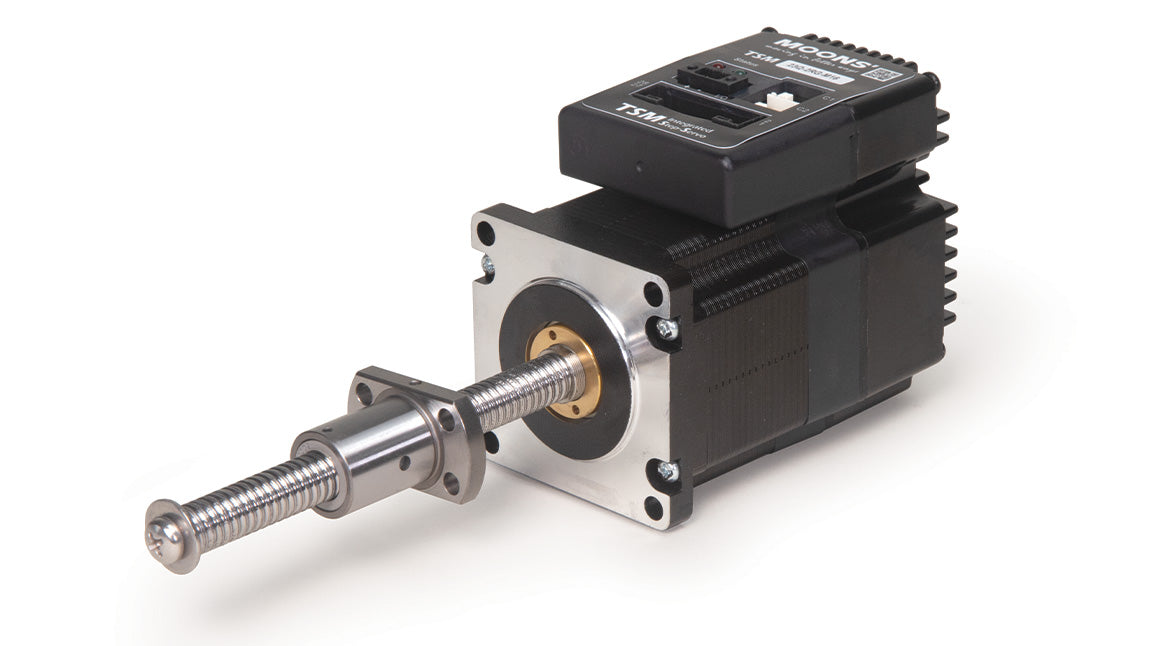

Get rolling with our miniature metric ball screw motor series. The assemblage of screw, flange-style nut, and NEMA 23 motor combine to create a high-performance linear motion actuator. Flanged ball nuts are mounted to a plate or block using bolts or screws that are secured through the provided holes. Flange-style nuts can often be easier to remove and install in an assembly, provided the mounting screws are easily accessible.

• 10 x 2 (diameter x lead)
• NEMA 23 motors (43 mm) are compatible with 10 mm diameter screw (Includes NEMA 23 single stack, double stack, and Power Plus)
• Utilizes a multi-liner ball return system
• Static axial load up to 1050 N (236 lb.) due to motor mechanical limit
• Polymer wipers located at each end of the nut help prevent the ingress of debris and particulates
• Standard, no preload (Standard backlash clearance held to 0.05 mm max)
• Standard and special machined journals available (Fixed or Floating)
• Fixed and floating end blocks available
• Standard ball screw assemblies come assembled. Also available as unassembled.
• Ask about custom ball screw designs
