Heavy Duty Telescopic Drawer Slides

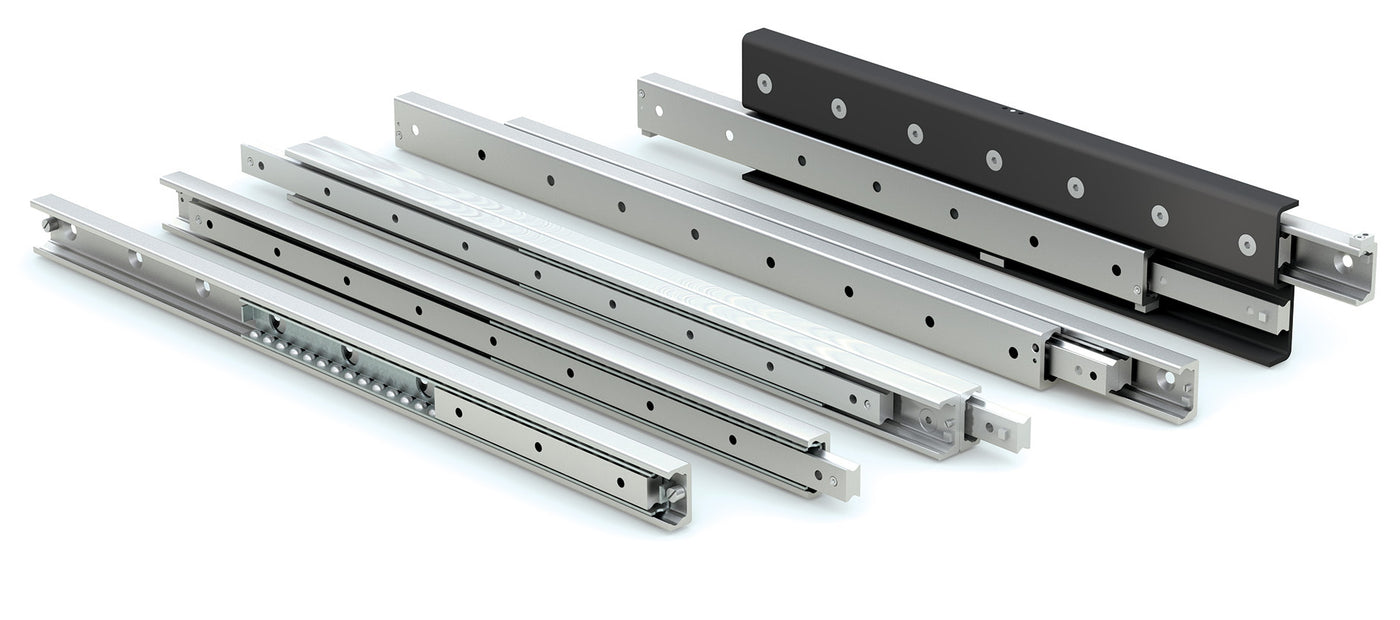

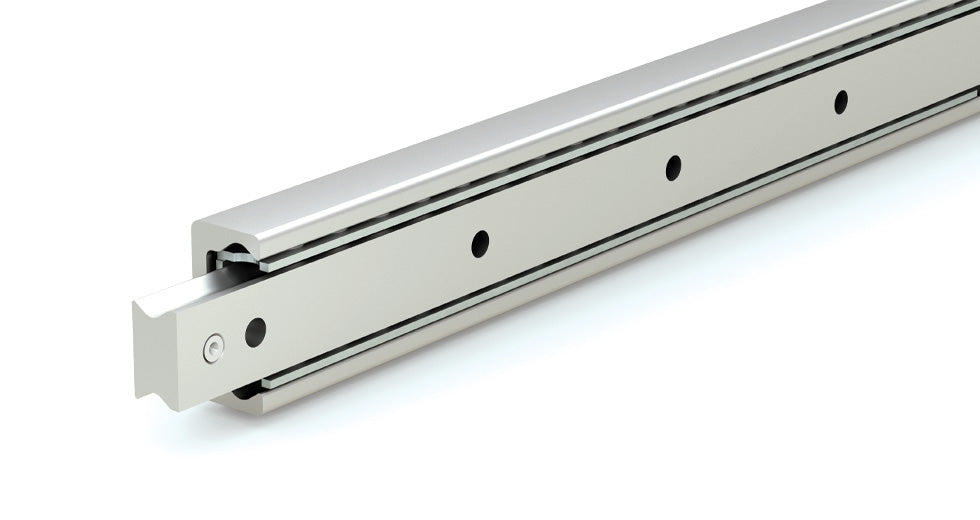

The SDP series uses an internal slider, ball cage, and external rail to provide smooth partial extension motion, typically up to half the rail length. Ideal for compact trays and equipment requiring controlled partial extension with high load capacity.

• Maximum Load (Fy): 24,230 N
• Rail Lengths: 130–1,970 mm
• Stroke: 74–1,013 mm

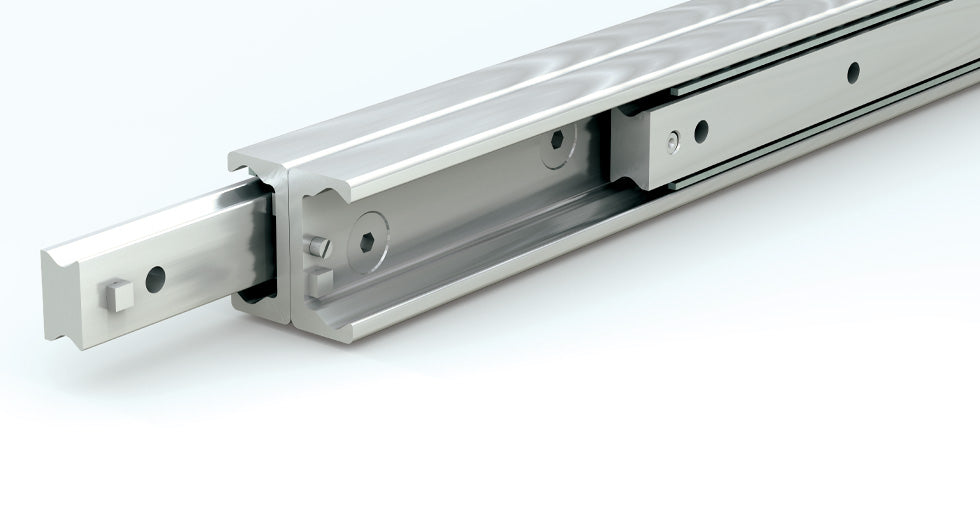

The SDB configuration bolts two SDP rails back-to-back, allowing the system to extend beyond the length of the internal slider. Slide moveable in single and double directions. Ideal for long-stroke extension applications where reach is the highest priority.

• Maximum Load (Fy): 3,092 N
• Rail Lengths: 130–1,970 mm
• Stroke: 148–2,026 mm

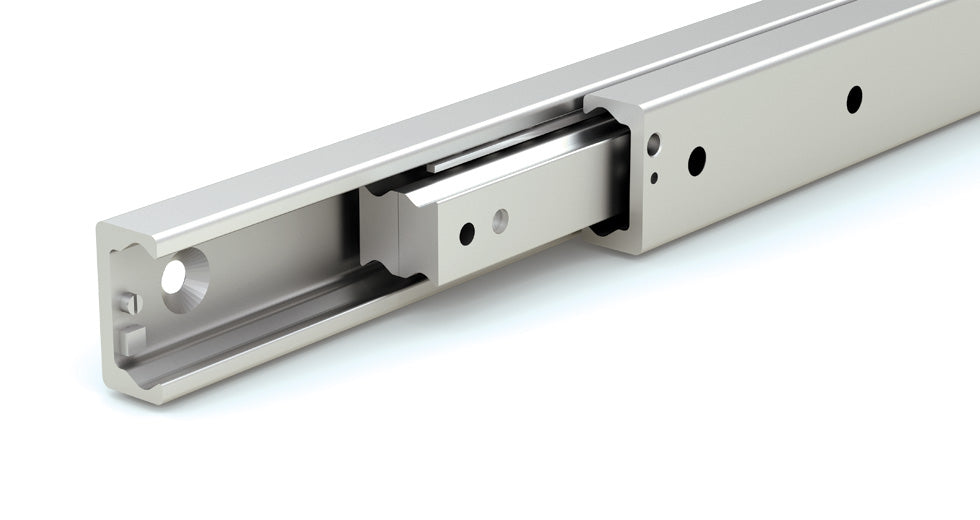

Two SDP rails mounted face-to-face create the SDF series,
featuring a dust-resistant design that helps protect the steel ball bearings
from contamination. Slide moveable in single and double directions. Ideal for
use in dusty environments or exposed motion paths.

• Maximum Load (Fy): 1,909 N
• Rail Lengths: 130–1,970 mm
• Stroke: 148–2,026 mm

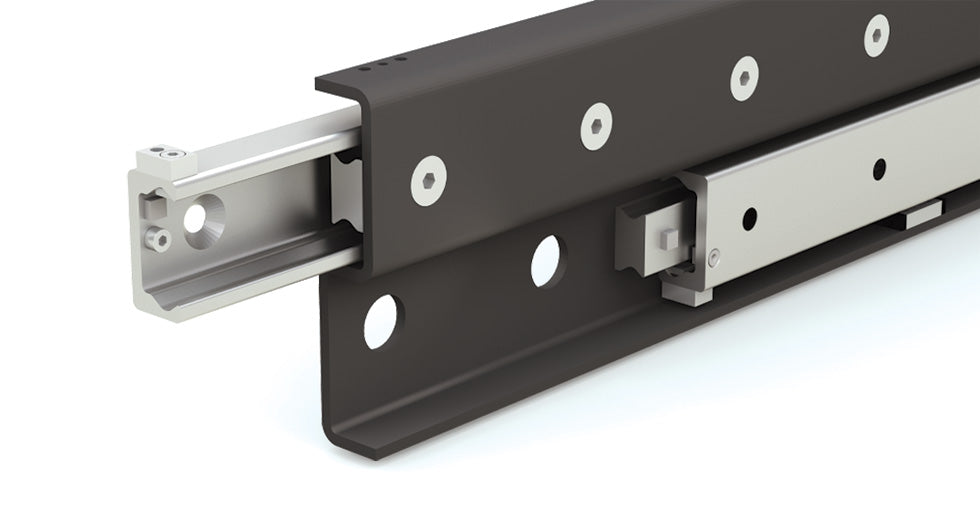

The SDS series mounts two SDP rails side-by-side in a thin s-beamconfiguration, providing guided motion where installation space is limited. Slidemoveable in single and double directions. Ideal for use in space-constraineddesigns that require stable, guided extension.

• Maximum Load (Fy): 5,578 N
• Rail Lengths: 290–1,570 mm
• Stroke: 296–1,520 mm

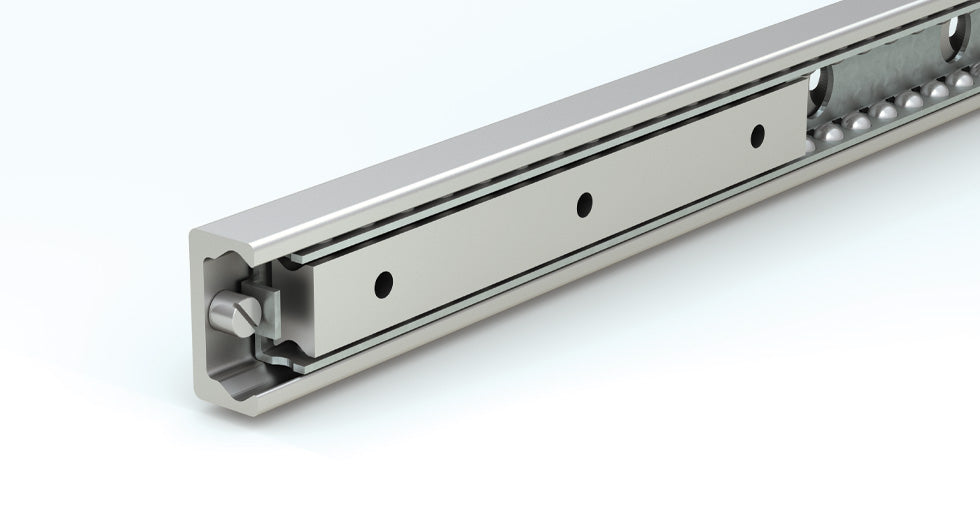

The SDC design uses an SDP rail with mechanical end stops at each end. The internal slider remains within the external rail, and multiple internal sliders can be used on a single rail. This is not a drawer slide. Ideal for extremely high load applications and multi-slider systems.

• Maximum Load (Fy): 65,272 N
• Rail Lengths: 130–1,970 mm
• Stroke: 30–1,310 mm
