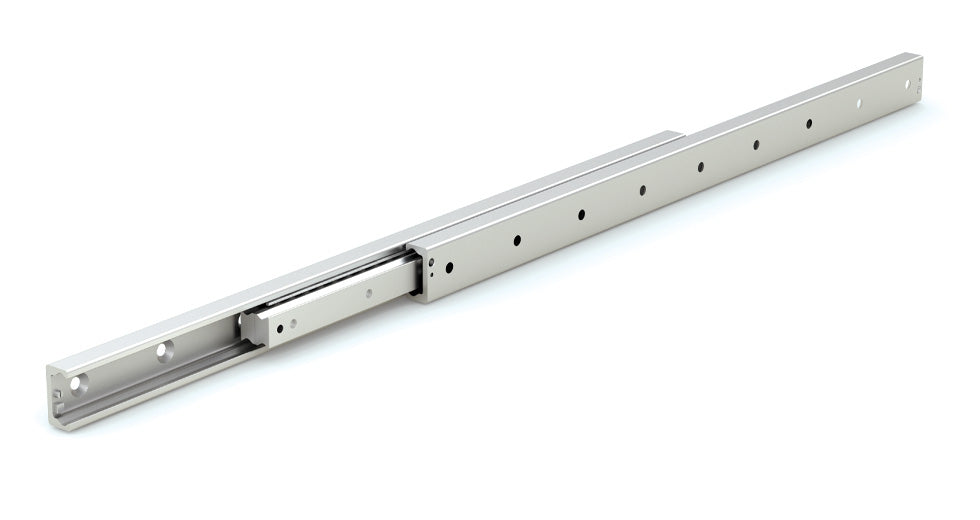

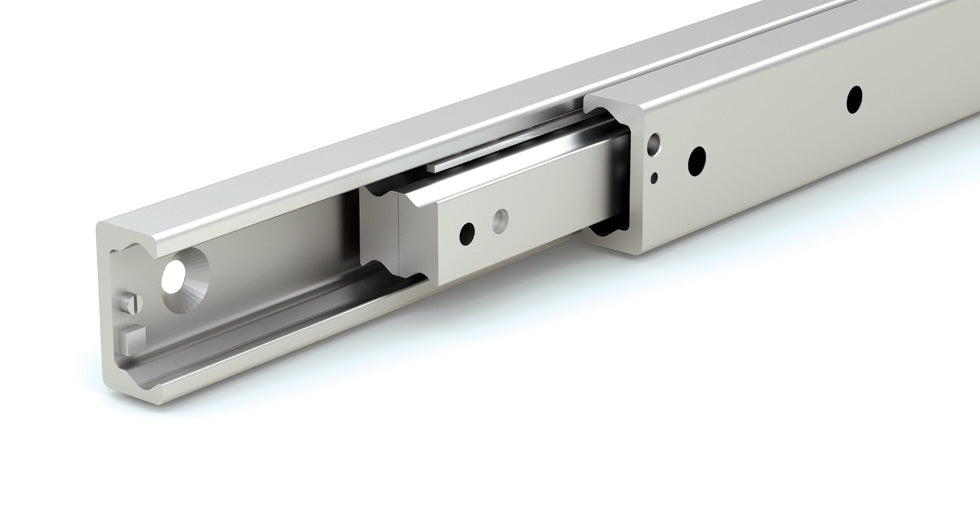

Industrial Drawer Slide - Steel SDF28S-0130 Full Extension, Dust Resistant Size: 28mm Stroke: 148mm
The 28mm size SDF Face-Mounted Drawer Slide is engineered for applications that require full length travel with max strokes up to 148mm in a dust-resistant design. The SDF Drawer Slide can be configured with an internal rail that moves in both directions.
- Nominal Size: 28 mm
- Rail Length: 130 mm
- Max Stroke: 148 mm
- Max Static Load (Fy): 240 N
- Slide Direction: Single – use the configurator to select double direction
- Material: Hardened Steel (56.5–60.5 HRC)
- Finish: Zinc Plated
