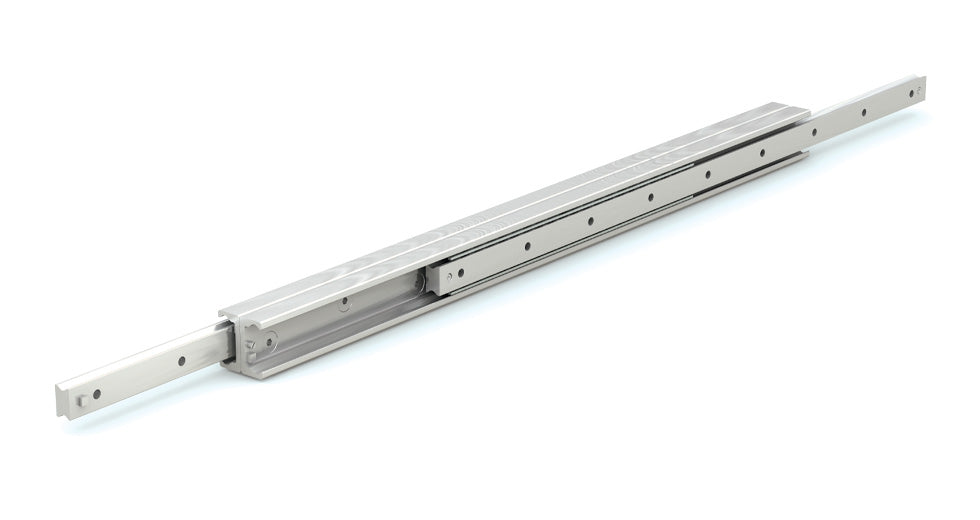

Rear Mount Full Extension Drawer Slide SDB43S-0210MV Width: 43mm Stroke: 246mm

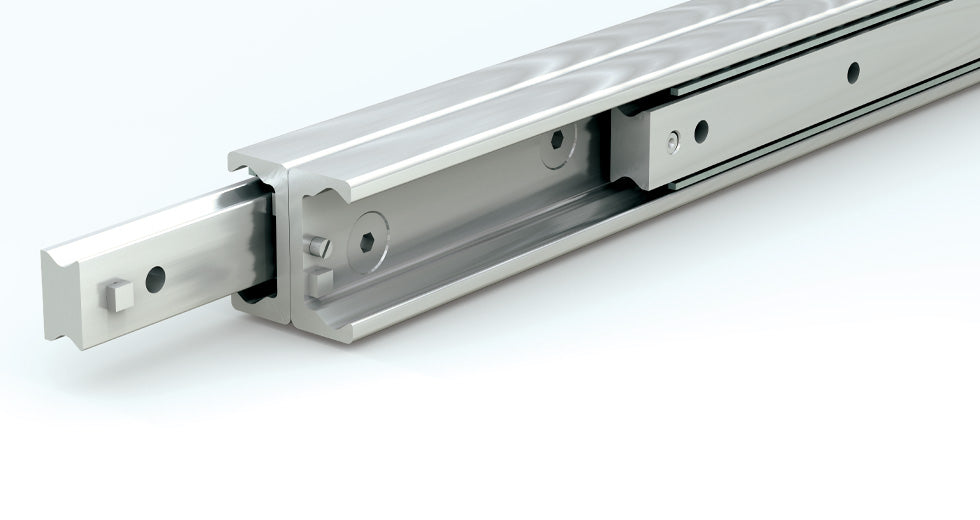

Rear Mount Full Extension Steel Drawer Slide with a 43mm width and 246mm maximum stroke for heavy-duty, load-supported extension beyond the mounting structure. Built from hardened, zinc-plated steel with precision ball guidance, the SDB Back Mount Series delivers smooth motion, corrosion resistance, and reliable support throughout full-extension travel. The internal rail can also be configured to move in both directions, adding flexibility for trays, digital panels, storage bins, and service modules that need to slide out for easier access, facilitating inspection, maintenance, operator control, loading, and other space-constrained access tasks.
- Nominal Size: 43 mm
- Rail Length: 210 mm
- Max Stroke: 246 mm
- Max Static Load (Fy): 606 N
- Mounting Hole Type: MV – other hole types available on the configurator
- Slide Direction: Single – use the configurator to select double direction
- Material: Hardened Steel (56.5–60.5 HRC)
- Finish: Zinc Plated
