Compact Linear Actuators
| MAX Horiz Payload | 1,202 lb (5,350 N) |
| MAX Stroke | 1,000 mm (39 in) |
| MAX Speed | 1.25 m/s (4 ft/s) |
10 Products
Ball Screw Linear Actuators
| MAX Horizontal Payload | 2.144 kN (482 lb) |
| MAX Stroke | 1650 mm (65 inches) |
| MAX Rotational Speed | Up to 5,000* RPM |
| * For faster options, contact factory |
77 Products
Lead Screw and Belt Driven Linear Slide Actuators - SIMO UG Series
| MAX Horiz Payload | 360 lb (1,600 N) |
| MAX Stroke | 1,400 mm (55 in) |
| MAX Speed | 5.5 m/s (18 ft/s) |
17 Products
Ball Screw Linear Actuators with V-Roller Guides
| MAX Horiz Payload | 285 lb (1,268 N) |
| MAX Stroke | 2,710 mm (107 in) |
| MAX Speed | 0.8 m/s (2.62 ft/s) |
3 Products
Lead Screw Linear Actuators – Captive, External & Non-Captive
| MAX Horizontal Payload | 1.16 kN (260 lb) |
| MAX Stroke | 1650 mm (65 inches) |
| MAX Rotational Speed | Up to 2,500* RPM |
| * For faster options, contact factory |
51 Products
Belt-Driven Linear Actuators with Ball Bearing Guides - MT Series
| Max Horiz Payload | 20,200 N (4,541 lb) |
| Max stroke | 6,700mm (263.78 in) |
24 Products
Ball Screw Linear Actuators with Profile Rail Guides | MUK Series
| MAX Horiz Payload | 2,517 lb (11,200 N) |
| MAX Stoke | 2,710 mm (107 mm) |
| MAX Speed | 0.8 m/s (2.6 ft/s) |
3 Products
Plain Linear Bearing Slide Actuators
| MAX Horiz Payload | 18,750 lb (83,400 N) |
| MAX Stroke | 3,454 mm (136 in) |
| MAX Speed | 0.457 m/s (1.5 ft/s) |
42 Products
Lead Screw Compact Linear Slide Actuator CSLSM10AGXR1ZF-2LT-0130-0 w/ NEMA 17 Mount - Length: 130mm
$776.78
| Drive End | Shaft |
|---|---|
| Motor Option | NEMA17 Motor Mount |
| Rail Length | 130mm |
| Number Of Carriages | 1 |
$776.78

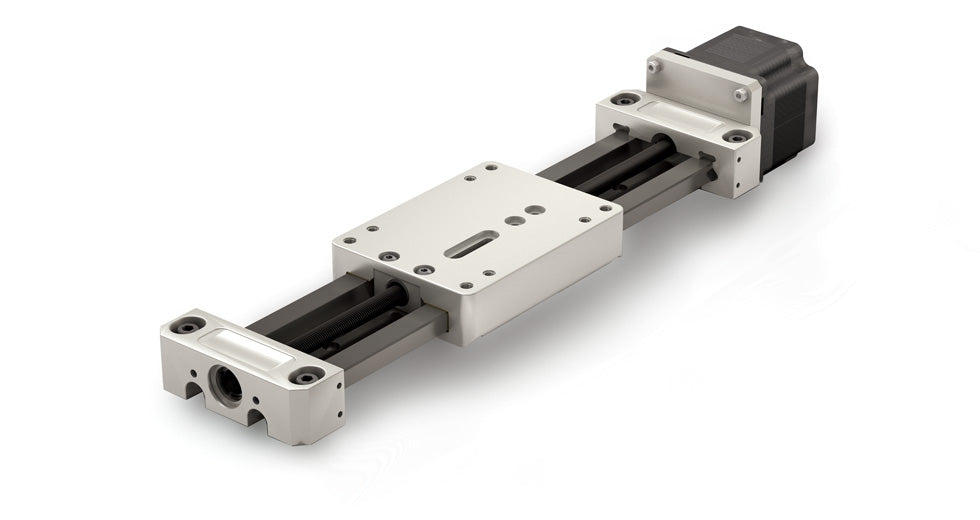

Lead Screw Linear Slide Actuator UGA040D-A10-0140-LS3A1-AG21-0 Length: 140mm w/ NEMA 17 Motor
$778.99
Lead screw linear actuator featuring a NEMA 17 motor with a hardened, ceramic-coated rail length of 140mm and an anodized aluminum carriage underlined with self-lubricating maintenance-free FrelonGold® to create a smooth Gliding Surface Technology™ (GST) effect that can easily withstand hot, dirty, or high vibration conditions. The lead screw has..
$778.99
Lead Screw Linear Actuator with a 12mm screw diameter, 5mm lead, and 500mm length, featuring a Round Anti-Backlash Nut and a NEMA 17 Motor, pairing a quality screw made of stainless steel with a PTFE coating to minimize friction and prevent flaking with an innovative Anti-Backlash Nut incorporating ConstantForce™ technology...
$261.90
Lead Screw Compact Linear Slide Actuator CSMR15D-000-0200-3A1-AGXR2-0 NEMA 17 Motor - Length: 200mm
$630.16
| Drive End | NEMA17 Single Stack |
|---|---|
| Motor Option | NEMA17 Single Stack |
| Rail Length | 200mm |
| Number Of Carriages | 1 |
$630.16
Lead Screw Linear Slide Actuator UGA040D-A10-0140-LS1ZF-AG21-0 Length: 140mm w/ NEMA 17 Motor Mount
$685.40
Lead screw linear actuator with a hardened, ceramic-coated rail length of 140mm, featuring a NEMA 17 motor mount and an anodized aluminum carriage underlined with self-lubricating maintenance-free FrelonGold® to create a smooth Gliding Surface Technology™ (GST) effect that can easily withstand hot, dirty, or high vibration conditions. The lead screw..
$685.40
| Drive End | NEMA17 Motor Mount |
|---|---|
| Motor Option | NEMA17 Motor Mount |
| Rail Length | 510mm |
| Number Of Carriages | 1 |
$737.48
Lead Screw Compact Linear Slide Actuator CSMR15D-000-0080-3A1-AGXR2-0 NEMA 17 Motor - Length: 80mm
$589.60
| Drive End | NEMA17 Single Stack |
|---|---|
| Motor Option | NEMA17 Single Stack |
| Rail Length | 80mm |
| Number Of Carriages | 1 |
$589.60
Lead Screw Linear Actuator 400mm long with a NEMA 17 Motor Single Stack (43mm), Round Anti-Backlash Nut, 12mm screw diameter, 5mm lead size, and the screw is made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking and reduce friction. The Round Constant Force™ Anti-Backlash nut..
$217.95
Lead Screw Linear Actuator 300mm long with a NEMA 17 Motor Single Stack (43mm), Round Anti-Backlash Nut, 12mm screw diameter, 1mm lead size, and the screw is made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking and reduce friction. The Round Constant Force™ Anti-Backlash nut..
$198.80
Lead Screw Linear Actuator LSR1005T-0400-TCF-140-NNN-N Triangle Anti-Backlash Nut, NEMA14 Motor
$236.39
Lead Screw Linear Actuator 400mm long with a NEMA 14 Motor, Triangle Anti-Backlash Nut, 10mm screw diameter, 5mm lead size, and the screw is made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking and reduce friction. The Triangle Constant Force™ Anti-Backlash nut uses a spring..
$236.39
Lead Screw Linear Actuator 300mm long with a NEMA 23 Motor, Triangle Anti-Backlash Nut, 10mm screw diameter, 1mm lead, and the screw is made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking and reduce friction. The Triangle Constant Force™ Anti-Backlash nut uses a spring to..
$217.23
Lead Screw Linear Actuator 200mm long with a NEMA 14 Motor, RoundAnti-Backlash Nut, 10mm screw diameter, 5mm lead, and the screw is made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking and reduce friction. The Triangle Constant Force™ Anti-Backlash nut uses a spring to maintain..
$198.07
Lead Screw Linear Actuator - LSR1010T-0300-NCF231-NNN-NNN - Length: 300mm, Non-Captive NEMA23 Motor
$219.09
Non-Captive Lead Screw Linear Actuator 300mm long with a NEMA 23 Motor, Non-Captive Round Anti-Backlash Nut, 10mm screw diameter, 10mm lead, and the screw is made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking and reduce friction. The Round Constant Force™ Anti-Backlash nut uses a..
$219.09
Lead Screw Linear Actuator - LSR1005T-0300-NCF231-NNN-NNN - Length: 300mm, NEMA23 Motor Non-Captive
$219.09
Non-Captive Lead Screw Linear Actuator 300mm long with a NEMA 23 Motor, Non-Captive Round Anti-Backlash Nut, 10mm screw diameter, 5mm lead, and the screw is made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking and reduce friction. The Round Constant Force™ Anti-Backlash nut uses a..
$219.09
Non-Captive Lead Screw Linear Actuator 300mm long with a NEMA 23 Motor, Non-Captive Round Anti-Backlash Nut, 10mm screw diameter, 1mm lead, and the screw is made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking and reduce friction. The Round Constant Force™ Anti-Backlash nut uses a..
$219.09
Lead Screw Actuator with a 6mm screw diameter, 300mm length, powered by a NEMA 11 motor. Features a 5mm lead, right-hand clockwise thread and a rectangle anti-backlash nut for smooth, play-free operation. A PTFE coating minimizes friction, prevents flaking and ensures durability. Length: 300mm Screw Diameter: 6mm Lead: 5mm Lead..
$234.92
Lead Screw Actuator with a 6mm screw diameter, 250mm length, powered by a NEMA 11 motor. Features a 5mm lead, right-hand clockwise thread and a rectangle anti-backlash nut for smooth, play-free operation. A PTFE coating minimizes friction, prevents flaking and ensures durability. Length: 250mm Screw Diameter: 6mm Lead: 5mm Thread..
$225.34
Lead Screw Actuator with a 6mm screw diameter, 100mm length, powered by NEMA 11 motor. Features a 1mm lead, right-hand clockwise thread and a rectangle anti-backlash nut for smooth, play-free operation. A PTFE coating minimizes friction, prevents flaking and ensures durability. Nut Type: Rectangle AntiBacklash Nut, Motor: Nema 11 Motor..
$196.60
Lead Screw Linear Actuator 250mm long with a NEMA 8 Motor, Rectangle Anti-Backlash Nut, 6mm screw diameter, 5mm lead, and the screw is made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking. The Rectangle Constant Force™ Anti-Backlash nut uses a spring to maintain uniform radial..
$241.65
Lead Screw Linear Actuator 200mm long with a NEMA 8 Motor, Rectangle Anti-Backlash Nut, 6mm screw diameter, 1mm lead, and the screw is made from precision-rolled 300 Series Stainless Steel and coated with PTFE to prevent flaking. The Rectangle Constant Force™ Anti-Backlash nut uses a spring to maintain uniform radial..
$232.07
A linear actuator is a mechanical device that combines a linear guide, drive mechanism, carriage-guidance system, and power source to produce controlled straight-line motion for moving or positioning a load. The drive mechanism—such as a ball screw, lead screw, belt, or fluid-powered piston—creates linear force, while the guidance system supports the carriage, controls its path, and resists side, moment, and cantilevered loads. Linear actuators are commonly classified as electric, mechanical, pneumatic, or hydraulic; electric and mechanical designs are often selected for controlled positioning, repeatability, clean operation, and integration with automated machinery.
PBC Linear designs guided belt-driven and screw-driven actuators powered by NEMA motors or hand cranks. Belt-driven actuators support long strokes and high speeds with low maintenance. Ball screw actuators provide high efficiency, load capacity, and positioning accuracy, while lead screw actuators offer quieter, more cost-effective motion with anti-backlash options for improved repeatability. Screw-driven configurations include external-nut actuators, where the screw rotates and a restrained nut travels along it; captive actuators, where the nut rotates and pushes a non-rotating screw in and out; and non-captive actuators, where the rotating nut travels along a screw that passes through the motor. Available configurations include multiple screw diameters, lead sizes, NEMA frame sizes, motor lengths, and actuator lengths to match specific force, speed, and travel requirements.
Carriage guidance is provided by either self-lubricating Gliding Surface Technology for low-maintenance operation in environments with dirt, heat, or vibration, or ball-bearing profile rails for greater moment capacity and cantilevered loads.
- Guided belt-driven, ball screw, and lead screw actuator options
- External-nut, captive, and non-captive screw configurations
- NEMA motor-driven and hand-crank models
- Multiple screw diameters, leads, motor lengths, and frame sizes
- Choose Self-lubricating Gliding Surface Technology for dirt, heat, and vibration or ball-bearing profile rail guidance for higher moment and cantilevered loads
- Load capacities up to 83,400N (18,750lb)
- Stroke lengths up to 6,000mm (236in)
- Miniature through heavy-duty actuator systems
Frequently Asked Questions
What is a linear actuator?
A linear actuator is a device that produces controlled straight-line motion by converting rotational or input force into linear movement. It is commonly used in automation, machinery, and positioning systems to move or position loads.
How does a linear actuator work?
A linear actuator works by converting motion from a motor, screw, or belt drive into linear movement. As the drive mechanism rotates or moves, it advances a carriage or rod along a guided path to produce controlled motion.
What are the main types of linear actuators?
The main types of linear actuators are electric, mechanical, pneumatic, and hydraulic. Electric and mechanical actuators are often preferred for their precision, cleanliness, and ease of integration, while pneumatic and hydraulic actuators are typically used for higher force applications.
What is the difference between a lead screw and a ball screw actuator?
Lead screw actuators use sliding contact between the screw and nut, making them quieter and more cost-effective, while ball screw actuators use rolling elements to reduce friction, providing higher efficiency, accuracy, and load capacity.
What is the difference between belt-driven and screw-driven actuators?
Belt-driven actuators are designed for long travel distances and higher speeds with lower cost and maintenance, while screw-driven actuators provide greater accuracy, stiffness, and load capacity for precise positioning applications.
When should a linear actuator be used instead of a cylinder?
Linear actuators are preferred when precise positioning, repeatability, and controlled motion are required, while pneumatic or hydraulic cylinders are typically used for simple extension and retraction with higher force but less control.
Do linear actuators require maintenance?
Maintenance depends on the design. Screw-driven actuators may require periodic lubrication, while some systems use self-lubricating materials or low-maintenance designs to reduce service requirements.
What factors should be considered when selecting a linear actuator?
Key factors include load capacity, speed, stroke length, required precision, environmental conditions, mounting configuration, and the type of drive mechanism used.
What provides guidance in a linear actuator?
Guidance in a linear actuator is provided by linear bearings or guide systems that support the carriage and maintain alignment. These may include sliding-contact guides for low maintenance or rolling-element guides for higher load and rigidity.
What are linear actuators used for?
Linear actuators are used in applications such as automation, material handling, packaging equipment, medical devices, and positioning systems where controlled linear motion is required.
