Ball Screw Assemblies Including Miniature Linear Actuators
Ways to Order
Miniature ball screw with a cylindrical nut, 6mm diameter, 1mm lead, and 150mm length. The cylindrical nut creates a more compact assembly than a flanged nut. A multi-liner ball-return system supports smooth motion, while polymer wipers help keep debris out. Static axial load capacity is up to 2.144kN (482lb). Standard..
$131.21
Miniature ball screw, 6mm diameter, 2mm lead, 150mm length, with a TRS cylindrical nut featuring right-facing external mounting threads. Unlike the smooth CNS nut with polymer wipers, the TRS nut mounts directly into a mating threaded component and has no wipers. The 2mm lead supports faster travel than 1mm with..
$143.33
Miniature Ball Screw Assembly with a Cylindrical Nut and a 500mm length, maximizing the travel distance. With a 10mm diameter and a 2mm lead, it's tailored for applications requiring extended reach without sacrificing precision or load capacity. Extended 500 mm length for maximum travel in the BSR series. 10 mm..
$165.52
Ball Screw Linear Actuator 8mmx2.5mmx250mm NEMA 17 Motor, Flanged Nut BSR08025TXR-0250-FRS-171-NNN-N
$293.98
Miniature linear ball screw actuator with a screw diameter of 8mm, a lead of 2.5mm and a length of 250mm. Includes a NEMA 17 single stack motor and a flanged nut, it’s tailored for applications where space is at a premium but precision cannot be compromised. The assembly is delivered..
$293.98
Miniature Ball Screw Assembly with an 8mm diameter Grade 10 Ball Screw. Combining speed with extended length, the 250mm version offers the benefits of a 2.5mm lead, suitable for applications requiring quick positioning over longer distances. Flanged nut to the right Extended travel capabilities with enhanced lead for rapid positioning. Durable..
$190.28
Miniature Ball Screw Assembly with a Cylindrical Nut boasting an 8mm screw diameter for enhanced rigidity and a 1mm lead for fine motion control, all within a 150mm length. Enhanced design features include polymer wipers and a multi-liner ball return system. 8 mm diameter provides increased strength for higher load..
$131.21
AVAILABLE SOON
Ground ball screw, offset flange nut, Grade 5, 6mm diameter, 6mm lead, 120mm length. Unlike a precision-rolled screw, whose helical thread is formed under pressure, this ball screw is finish-ground for tighter control of lead accuracy and repeatable positioning. The offset flange nut contains recirculating balls that travel through the..
AVAILABLE SOON
Ground ball screw, offset flange nut, Grade 5, 8mm diameter, 8mm lead, 160mm length. Unlike a precision-rolled screw, whose helical thread is formed under pressure, this ball screw is finish-ground for tighter control of lead accuracy and repeatable positioning. The offset flange nut contains recirculating balls that travel through the..
AVAILABLE SOON
Ground ball screw, offset flange nut, Grade 5, 6mm diameter, 6mm lead, 100mm length. Unlike a precision-rolled screw, whose helical thread is formed under pressure, this ball screw is finish-ground for tighter control of lead accuracy and repeatable positioning. The offset flange nut contains recirculating balls that travel through the..
AVAILABLE SOON
Ground ball screw, offset flange nut, Grade 5, 8mm diameter, 8mm lead, 120mm length. Unlike a precision-rolled screw, whose helical thread is formed under pressure, this ball screw is finish-ground for tighter control of lead accuracy and repeatable positioning. The offset flange nut contains recirculating balls that travel through the..
AVAILABLE SOON
Ground ball screw, square nut, Grade 3, 6mm diameter, 1mm lead, 90mm length. Unlike a precision-rolled screw, whose helical thread is formed under pressure, this ball screw is finish-ground for tighter lead accuracy and repeatable positioning. The square ball nut contains recirculating balls that travel through the shaft’s helical grooves..
AVAILABLE SOON
Ground ball screw, square nut, Grade 5, 8mm diameter, 1mm lead, 160mm length. Unlike a precision-rolled screw, whose helical thread is formed under pressure, this ball screw is finish-ground for tighter lead accuracy and repeatable positioning. The square ball nut contains recirculating balls that travel through the shaft’s helical grooves..
AVAILABLE SOON
Ground ball screw, square nut, Grade 3, 8mm diameter, 1mm lead, 120mm length. Unlike a precision-rolled screw, whose helical thread is formed under pressure, this ball screw is finish-ground for tighter lead accuracy and repeatable positioning. The square ball nut contains recirculating balls that travel through the shaft’s helical grooves..
AVAILABLE SOON
Ground ball screw, square nut, Grade 5, 8mm diameter, 1mm lead, 120mm length. Unlike a precision-rolled screw, whose helical thread is formed under pressure, this ball screw is finish-ground for tighter lead accuracy and repeatable positioning. The square ball nut contains recirculating balls that travel through the shaft’s helical grooves..
AVAILABLE SOON
Ground ball screw, flanged nut, Grade 3, 12mm diameter, 2mm lead, 180mm length. Unlike a precision-rolled ball screw, whose helical thread form is produced by rolling the steel under pressure, this ball screw is precision-ground to achieve tighter lead accuracy and more repeatable positioning. Grade 3 is the highest accuracy..
AVAILABLE SOON
Ground ball screw, square nut, Grade 5, 6mm diameter, 1mm lead, 120mm length. Unlike a precision-rolled screw, whose helical thread is formed under pressure, this ball screw is finish-ground for tighter lead accuracy and repeatable positioning. The square ball nut contains recirculating balls that travel through the shaft’s helical grooves..
AVAILABLE SOON
Ground ball screw, square nut, Grade 5, 6mm diameter, 1mm lead, 100mm length. Unlike a precision-rolled screw, whose helical thread is formed under pressure, this ball screw is finish-ground for tighter lead accuracy and repeatable positioning. The square ball nut contains recirculating balls that travel through the shaft’s helical grooves..
AVAILABLE SOON
Ground ball screw, flanged nut, Grade 3, 10mm diameter, 2mm lead, 150mm length. Unlike a precision-rolled ball screw, whose helical thread form is produced by rolling the steel under pressure, this ball screw is precision-ground to achieve tighter lead accuracy and more repeatable positioning. Grade 3 is the highest accuracy..
AVAILABLE SOON
Ground ball screw, flanged nut, Grade 3, 8mm diameter, 2mm lead, 120mm length. Unlike a precision-rolled ball screw, whose helical thread form is produced by rolling the steel under pressure, this ball screw is precision-ground to achieve tighter lead accuracy and more repeatable positioning. Grade 3 is the highest accuracy..
AVAILABLE SOON
Ground ball screw, flanged nut, Grade 3, 8mm diameter, 5mm lead, 120mm length. Unlike a precision-rolled ball screw, whose helical thread form is produced by rolling the steel under pressure, this ball screw is precision-ground to achieve tighter lead accuracy and more repeatable positioning. Grade 3 is the highest accuracy..

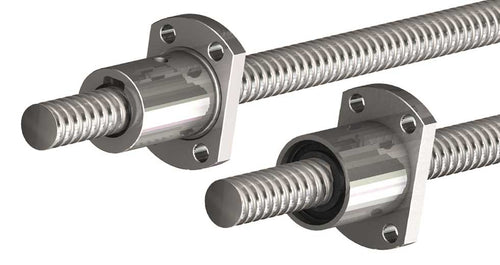

Miniature ball screw assemblies consist of a compact screw shaft and matching nut with precision helical grooves that recirculate ball bearings, converting rotary motion into smooth, low-friction linear motion. Designed for small-scale automation, positioning, and motion control applications, these assemblies are available with 1 mm, 2 mm, and 2.5 mm lead sizes and screw diameters of 6 mm, 8 mm, and 10 mm. The 1050 steel screw is precision rolled in the US for accuracy, consistency, and reliable travel, with flanged nut and cylindrical nut configurations available to support different mounting requirements. Compared with lead screws, miniature ball screws require less than one-third the torque, making rotary-to-linear motion transfer easier and more efficient in compact systems. They are compatible with NEMA 08, 11, 14, 17, and 23 motor frame sizes, giving designers flexible options for integrating precise linear motion into space-constrained assemblies.
