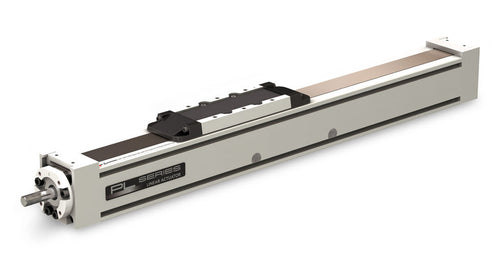

Ball Screw Linear Actuators with V-Roller Guides

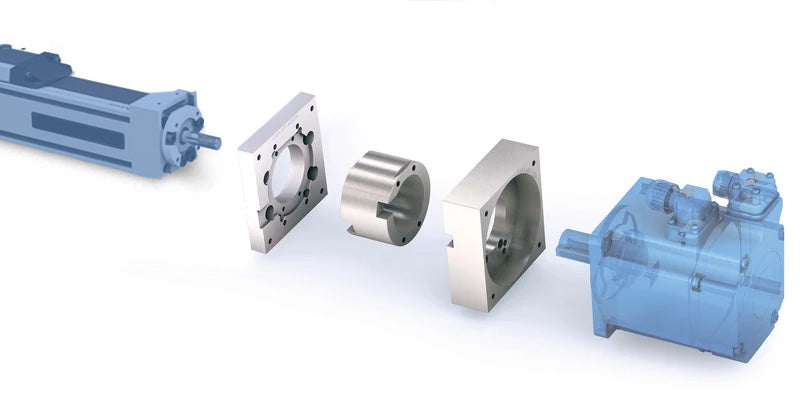

Ball screw driven linear actuators of the PLA Series feature pre-loaded ball bearing cam V-rollers on patent-pending Integral-V™ hardened steel v-groove raceways, encased in a robust 68 mm x 55 mm anodized aluminum housing that resists debris. Supporting a 220 lb (980 N) horizontal payload and up to 2,692 mm (106 in) stroke length, they excel in industrial automation and material handling. Major benefits include four T-slots for easy mounting and a magnetic stainless steel seal strip that effectively prevents contamination. Sensors and motor mounts can be ordered optionally via "Configure CAD and Quote" below each product.
