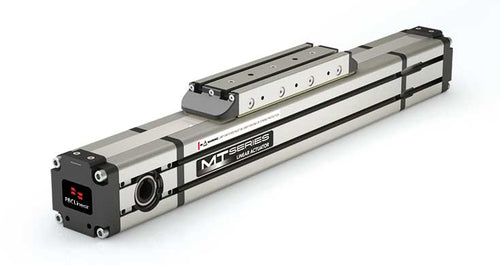

Belt Driven Linear Actuator with Profile Rail Guide - MTB Series
- Frame Sizes: 42, 55, 80 and 105 mm square
- Max Load (Fz): 1,560 / 1,850 / 4,500 / 7,500 N by size
- Max Stroke: 2,000 mm (42) and 6,000 mm (55, 80, 105)
- Min Stroke: 100 mm
- Max Speed: 3 m/s (118 in/s)
- Guidance: One profile rail with two runner blocks
Belt-driven linear actuators of the MTB Series include a recirculating ball profile rail guide with two runner blocks per carriage and an adjustable belt tension system, making them suitable for fast, long-travel applications with heavy loads. Unlike the MTS screw-driven actuator series, which is better suited for higher thrust and more precise positioning, the MTB Series is designed for speed, stroke length, and efficient belt-driven motion. Compared with covered or enclosed MTE-style configurations, MTB actuators provide an open, lightweight belt-driven platform for applications where easy access, long travel, and high-speed movement are priorities. Designed for high-speed positioning and repeatable motion, MTB actuators use a steel-reinforced belt drive inside a lightweight, corrosion-resistant aluminum profile to support smooth travel while helping reduce friction, noise, and vibration. The integrated profile rail guide uses recirculating ball runner blocks to provide rigid carriage support, smooth travel, and strong load capacity during high-speed, long-stroke motion. Adjustable belt tension helps maintain performance over time and supports consistent motion across extended travel lengths.
Available in carriage and rail cross sections from 60 mm x 42 mm to 133 mm x 105 mm, MTB belt-driven linear actuators support maximum horizontal payloads up to 7,500 N (1,686 lb) and stroke lengths up to 6,000 mm (236.22 in). Male and female shaft options are available in various diameters to support flexible drive integration, while the lightweight aluminum construction provides corrosion resistance and easier installation in automation, packaging, material handling, gantry systems, pick-and-place equipment, and other industrial motion systems.
- Car and rail cross section: min 60 mm x 42 mm - max 133 mm x 105 mm
- Maximum horizontal payload: 1,686 lb (7,500 N)
- Maximum stroke length: 6,000 mm (236.22 in)
- Belt-driven system with adjustable tension
- Lightweight and corrosion-resistant construction
More about Linear Actuators at PBC Linear

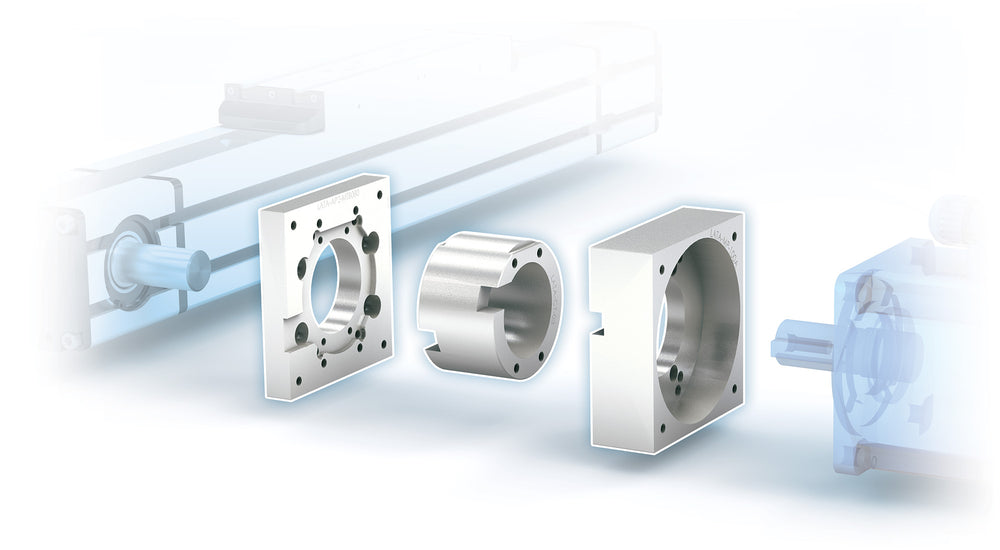

Motor Mount Kits
Filter
Products (12)
| Name | Frame Size mm | Body Length mm | Carriage Type | Drive Type | Max Horizontal Load (N) | Max Stroke (mm) | Shaft Dia. (mm) | Shaft Type | Price | Actions |
|---|---|---|---|---|---|---|---|---|---|---|
| MTB055D-6300-16L12 | 55 | 6300 | Profile Rail | Belt | 1850 | 6100 | 16 | Left Male | $9,342.32 | Shop |
| MTB042D-2250-12L12 | 42 | 2250 | Profile Rail | Belt | 1560 | 2070 | 12 | Left Male | $3,267.05 | Shop |
| MTB042D-1000-12L12 | 42 | 1000 | Profile Rail | Belt | 1560 | 820 | 12 | Left Male | $2,149.79 | Shop |
| MTB105D-2250-25L12 | 105 | 2250 | Profile Rail | Belt | 7500 | 1900 | 25 | Left Male | $7,677.06 | Shop |
| MTB105D-1250-25F12 | 105 | 1250 | Profile Rail | Belt | 7500 | 900 | 25 | Female Hollow | $5,283.49 | Shop |
| MTB105D-0850-25L12 | 105 | 850 | Profile Rail | Belt | 7500 | 500 | 25 | Left Male | $4,326.06 | Shop |
| MTB080D-6480-19L12 | 80 | 6480 | Profile Rail | Belt | 4500 | 6200 | 19 | Left Male | $8,996.22 | Shop |
| MTB080D-1000-19F12 | 80 | 1000 | Profile Rail | Belt | 4500 | 720 | 19 | Female Hollow | $3,566.05 | Shop |
| MTB055D-1000-12F12 | 55 | 1000 | Profile Rail | Belt | 1850 | 800 | 12 | Female Hollow | $2,628.16 | Shop |
| MTB080D-0316-19L12 | 80 | 316 | Profile Rail | Belt | 4500 | 36 | 19 | Left Male | $2,396.65 | Shop |
| MTB055D-0240-16L12 | 55 | 240 | Profile Rail | Belt | 1850 | 40 | 16 | Left Male | $1,665.37 | Shop |
| MTB042D-0204-12L12 | 42 | 204 | Profile Rail | Belt | 1560 | 24 | 12 | Left Male | $1,438.32 | Shop |
The MTB Series is a lightweight, steel reinforced belt driven system that is well suited for fast and long travel applications with heavy loads.
- Car and Rail Cross Section: minimum 60 mm X 42 mm - maximum 133 mm X 105 mm
- Maximum Horizontal Payload: 1,686 lb (7,500 N)
- Maximum Stroke Length: 6,000 mm (236.22 in)
- Strong yet lightweight and corrosion-resistant
- Low friction, noise and vibration
- Adjustable belt tension
- Multiple drive configurations available
MTB Series Actuators
Specifications
| Name | Carriage Type | Drive Type | MAX Horizontal Load (Fz) N | MAX Stroke (mm) |
|---|---|---|---|---|
| MTB042D-0204-12L12 | Profile Rail | Belt | 1,560 | 24 |
| MTB042D-1000-12L12 | Profile Rail | Belt | 1,560 | 820 |
| MTB042D-2250-12L12 | Profile Rail | Belt | 1,560 | 2,070 |
| MTB055D-0240-16L12 | Profile Rail | Belt | 1,850 | 40 |
| MTB055D-1000-12F12 | Profile Rail | Belt | 1,850 | 800 |
| MTB055D-6300-16L12 | Profile Rail | Belt | 1,850 | 6100 |
| MTB080D-0316-19L12 | Profile Rail | Belt | 4,500 | 36 |
| MTB080D-1000-19F12 | Profile Rail | Belt | 4,500 | 720 |
| MTB080D-6480-19L12 | Profile Rail | Belt | 4,500 | 6200 |
| MTB105D-0850-25L12 | Profile Rail | Belt | 7,500 | 500 |
| MTB105D-1250-25F12 | Profile Rail | Belt | 7,500 | 900 |
| MTB105D-2250-25L12 | Profile Rail | Belt | 7,500 | 1900 |

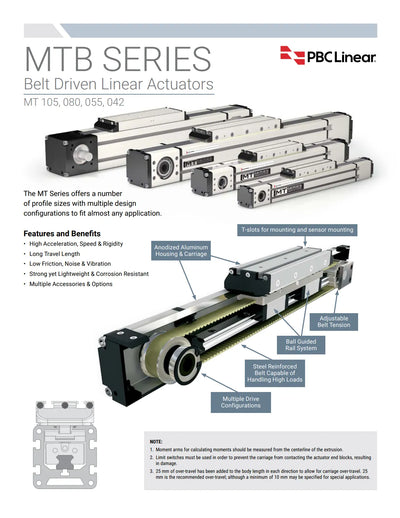

Key Features:
- Long travel lengths
- High acceleration, speeds, and rigidity
- Strong yet lightweight and corrosion-resistant
- Low friction, noise and vibration
- Anodized aluminum housing and carriage
- Steel reinforced belt capable of handling high loads
- Ball guided rail system
- Adjustable belt tension
- Multiple drive configurations


| MTB Series | ||||||
|---|---|---|---|---|---|---|
| Size | mm | 42 x 42 | 55 x 55 | 80 x 80 | 105 x 105 | |
| Base Weight | Kg | 1.60 | 4.80 | 6.00 | 12.50 | |
| MAX Load | Fx | N | 460 | 820 | 1,650 | 2,750 |
| Fy | N | 1,560 | 1,850 | 4,500 | 7,500 | |
| Fz | N | 1,560 | 1,850 | 4,500 | 7,500 | |
| MAX Moments | Mx | Nm | 20 | 25 | 80 | 120 |
| My | Nm | 55 | 120 | 450 | 700 | |
| Mz | Nm | 55 | 120 | 450 | 700 | |
| MAX Stroke Length | mm | 2,000 | 6,000 | 6,000 | 6,000 | |
| MIN Stroke Length | mm | 100 | 100 | 100 | 100 | |
| Add for 100 mm of Stroke | Kg | 0.25 | 0.37 | 0.90 | 1.50 | |
| MAX Speed | m/s | 3 | 3 | 3 | 3 | |
| Moment of Inertia | Ix | cm4 | 12 | 36 | 183 | 440 |
| Iy | cm4 | 15 | 45 | 226 | 535 | |
