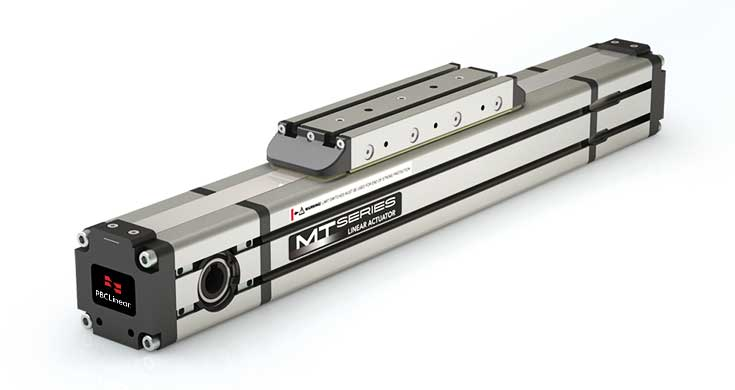

Belt Driven Linear Actuator MTB080D-6480-19L12 Length: 6480mm Cross Section: 80x80mm
- Max Speed: 3 m/s (118.11 in/s)
- Max Load (Fy / Fz): 4,500 N (1,011.64 lbf)
- Max Load (Fx): 1,650 N (370.93 lbf)
- Max Moment (My / Mz): 450 Nm (3,983 lbf-in)
- Repeatability: ±0.05 mm (±0.002 in)
- Frame Size: 80 x 80 mm (3.15 x 3.15 in)
- Guideway: Ball guided profile rail, 2 runner blocks per carriage
- Drive: Steel-reinforced belt, 19 mm left male input shaft
- Motor Mounts: NEMA and metric motor mount kits available
- Family stroke range 100 mm (3.94 in) to 6,000 mm (236.22 in)
Robust belt-driven linear actuator with a base size of 080 x 080 mm and a body length of 6480mm, making it suitable for larger systems. It has a left male shaft with a diameter of 19 mm, ensuring compatibility with various setups. The actuator supports a single carriage and utilizes a profile rail with two runner blocks per carriage for enhanced stability and precision in movement. This combination of features makes the MTB080D-6480-19L12 an excellent choice for demanding tasks requiring reliability and efficiency.
| Part Number | MTB080D-6480-19L12 |
|---|---|
| Series | MTB |
| Drive Type | Belt-Driven |
| Base Size | 080 X 080 |
| Drive Type | Belt-Driven |
| Shaft Diameter | 19 |
| Shaft Type | Left Male |
| Carriage Count | 1 |
| Guidance Type | Profile Rail with 2 runner blocks per carriage |
| Body Length | 6480mm |
Motor Mount Kits
Key Features:
- Long travel lengths
- High acceleration, speeds, and rigidity
- Strong yet lightweight and corrosion-resistant
- Low friction, noise and vibration
- Anodized aluminum housing and carriage
- Steel reinforced belt capable of handling high loads
- Ball guided rail system
- Adjustable belt tension
- Multiple drive configurations
| MTB Series | ||||||
|---|---|---|---|---|---|---|
| Size | mm | 42 x 42 | 55 x 55 | 80 x 80 | 105 x 105 | |
| Base Weight | Kg | 1.60 | 4.80 | 6.00 | 12.50 | |
| MAX Load | Fx | N | 460 | 820 | 1,650 | 2,750 |
| Fy | N | 1,560 | 1,850 | 4,500 | 7,500 | |
| Fz | N | 1,560 | 1,850 | 4,500 | 7,500 | |
| MAX Moments | Mx | Nm | 20 | 25 | 80 | 120 |
| My | Nm | 55 | 120 | 450 | 700 | |
| Mz | Nm | 55 | 120 | 450 | 700 | |
| MAX Stroke Length | mm | 2,000 | 6,000 | 6,000 | 6,000 | |
| MIN Stroke Length | mm | 100 | 100 | 100 | 100 | |
| Add for 100 mm of Stroke | Kg | 0.25 | 0.37 | 0.90 | 1.50 | |
| MAX Speed | m/s | 3 | 3 | 3 | 3 | |
| Moment of Inertia | Ix | cm4 | 12 | 36 | 183 | 440 |
| Iy | cm4 | 15 | 45 | 226 | 535 | |
Application Fit
- High-Speed Pick-and-Place
- Packaging Equipment
- Large-Format Printing
- Bottling Lines
- Mail and Parcel Sorting
- Medical Testing Equipment
Selection Notes: Four profile sizes, 42 to 105 mm, with multiple drive configurations · Steel-reinforced belt with adjustable tension; anodized aluminium housing and carriage · T-slots along the extrusion for mounting and for sensor mounting · Motor mount kits and couplers available for NEMA and metric motor sizes · Limit switches must be used to stop the carriage reaching the end blocks
