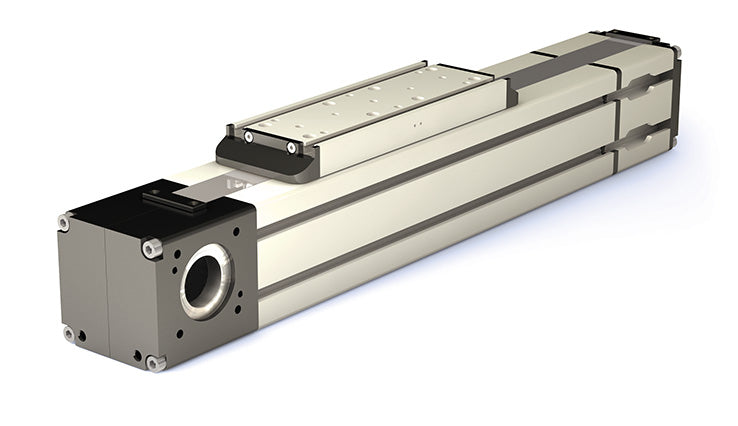

Belt Driven Linear Actuator MTB105D-2250-25L12 Length: 2250mm Cross Section: 105mmx105mm
- Max Speed: 3 m/s (118.11 in/s)
- Max Load (Fy / Fz): 7,500 N (1,686.07 lbf)
- Max Load (Fx): 2,750 N (618.22 lbf)
- Max Moment (My / Mz): 700 Nm (6,195.52 lbf-in)
- Repeatability: ±0.05 mm (±0.002 in)
- Frame Size: 105 x 105 mm (4.13 x 4.13 in)
- Guideway: Ball guided profile rail, 2 runner blocks per carriage
- Drive: Steel-reinforced belt, 25 mm left male input shaft
- Motor Mounts: NEMA and metric motor mount kits available
- Family stroke range 100 mm (3.94 in) to 6,000 mm (236.22 in)
Belt-driven linear actuator with a 2,250mm body length, 105mm x 105mm base profile, and one carriage guided by a single recirculating ball profile rail with two runner blocks for high-speed linear motion. This MTB Series actuator uses a steel-reinforced timing belt with adjustable tensioning and a 25mm left male drive shaft for motor or gearbox integration. Unlike MTE actuators, which use one internal and one external profile rail guide, and MTS actuators, which use two external profile rail guides, this MTB actuator uses a single profile rail guide for a more compact, efficient belt-driven platform. Its anodized aluminum construction helps reduce weight, noise, and vibration while resisting corrosion in demanding automation applications. The larger 105mm profile makes it a strong fit for packaging machinery, material handling, pick-and-place systems, gantries, food and beverage equipment, and general industrial automation where higher load capacity, speed, and reliable guided motion are required.
- 105mm x 105mm base profile
- High Acceleration, Speed and Rigidity up to 3 m/sec
- Long Travel Length
- Low Friction, Noise and Vibration
- Strong yet Lightweight and Corrosion Resistant
- Multiple Accessories and Options
- Anodized aluminum housing and carriage
- Steel reinforced belt capable of handling high loads
- Ball guided rail system
- Adjustable belt tension
- T-slots for mounting and sensor mounting
- Multiple drive configurations
Learn More About The MTB105 Series Belt Driven Linear Actuator
Motor Mount Kits
Key Features:
- Long travel lengths
- High acceleration, speeds, and rigidity
- Strong yet lightweight and corrosion-resistant
- Low friction, noise and vibration
- Anodized aluminum housing and carriage
- Steel reinforced belt capable of handling high loads
- Ball guided rail system
- Adjustable belt tension
- Multiple drive configurations

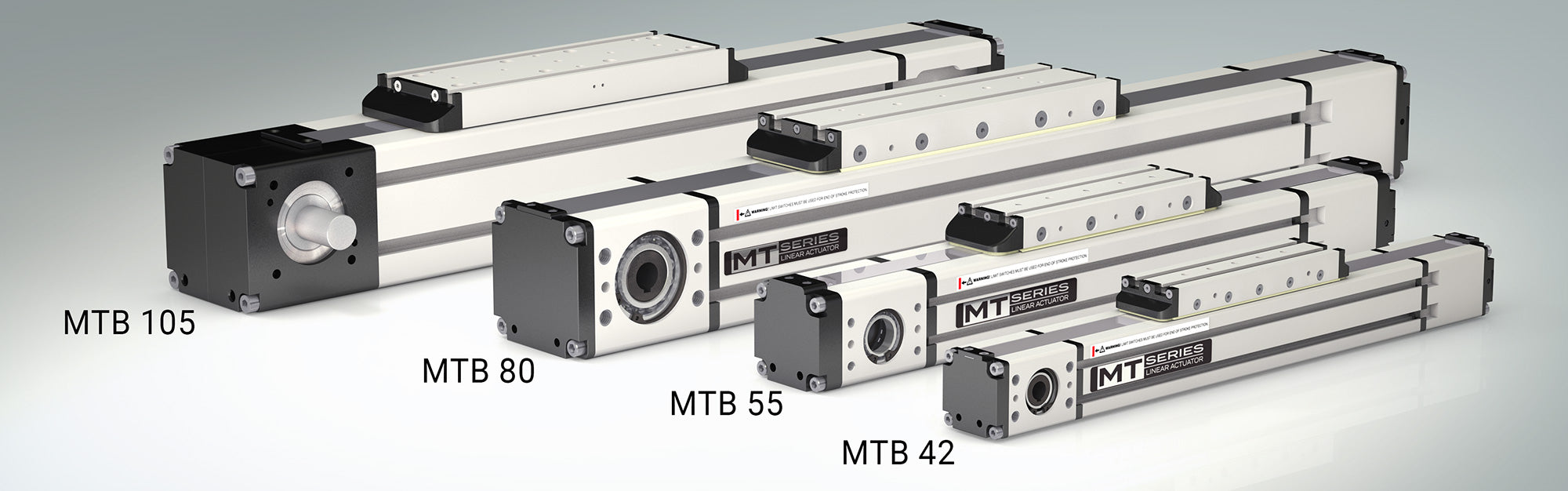

| MTB Series | ||||||
|---|---|---|---|---|---|---|
| Size | mm | 42 x 42 | 55 x 55 | 80 x 80 | 105 x 105 | |
| Base Weight | Kg | 1.60 | 4.80 | 6.00 | 12.50 | |
| MAX Load | Fx | N | 460 | 820 | 1,650 | 2,750 |
| Fy | N | 1,560 | 1,850 | 4,500 | 7,500 | |
| Fz | N | 1,560 | 1,850 | 4,500 | 7,500 | |
| MAX Moments | Mx | Nm | 20 | 25 | 80 | 120 |
| My | Nm | 55 | 120 | 450 | 700 | |
| Mz | Nm | 55 | 120 | 450 | 700 | |
| MAX Stroke Length | mm | 2,000 | 6,000 | 6,000 | 6,000 | |
| MIN Stroke Length | mm | 100 | 100 | 100 | 100 | |
| Add for 100 mm of Stroke | Kg | 0.25 | 0.37 | 0.90 | 1.50 | |
| MAX Speed | m/s | 3 | 3 | 3 | 3 | |
| Moment of Inertia | Ix | cm4 | 12 | 36 | 183 | 440 |
| Iy | cm4 | 15 | 45 | 226 | 535 | |
Application Fit
- High-Speed Pick-and-Place
- Packaging Equipment
- Large-Format Printing
- Bottling Lines
- Mail and Parcel Sorting
- Medical Testing Equipment
Selection Notes: Four profile sizes, 42 to 105 mm, with multiple drive configurations · Steel-reinforced belt with adjustable tension; anodized aluminium housing and carriage · T-slots along the extrusion for mounting and for sensor mounting · Motor mount kits and couplers available for NEMA and metric motor sizes · Limit switches must be used to stop the carriage reaching the end blocks
