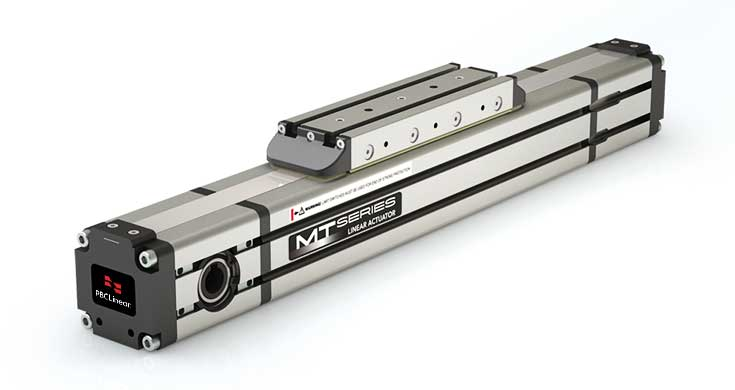

Belt Driven Linear Actuator MTB080D-1000-19F12 Length: 1000mm Cross Section: 80x80mm
- Max Speed: 3 m/s (118.11 in/s)
- Max Load (Fy / Fz): 4,500 N (1,011.64 lbf)
- Max Load (Fx): 1,650 N (370.93 lbf)
- Max Moment (My / Mz): 450 Nm (3,983 lbf-in)
- Repeatability: ±0.05 mm (±0.002 in)
- Frame Size: 80 x 80 mm (3.15 x 3.15 in)
- Guideway: Ball guided profile rail, 2 runner blocks per carriage
- Drive: Steel-reinforced belt, 19 mm female hollow input shaft
- Motor Mounts: NEMA and metric motor mount kits available
- Family stroke range 100 mm (3.94 in) to 6,000 mm (236.22 in)
Belt-driven linear actuator with a 1,000mm body length, 80mm x 80mm base profile, and one carriage guided by a single recirculating ball profile rail with two runner blocks for high-speed linear motion. This MTB Series actuator is engineered for medium to high payload applications and uses a steel-reinforced timing belt with adjustable tensioning and a 19mm female drive shaft for motor or gearbox integration. Unlike MTE actuators, which use one internal and one external profile rail guide, and MTS actuators, which use two external profile rail guides, this MTB actuator uses a single profile rail guide for a more compact, efficient belt-driven platform. Its anodized aluminum construction helps minimize friction, noise, and vibration, while a stainless steel strip seals along magnetic strips to help prevent contamination in harsh environments. Precision extrusions ensure flat and perpendicular surfaces for accurate installation, making this actuator a strong fit for packaging machinery, material handling, pick-and-place systems, Cartesian gantries, and general industrial automation where load capacity, speed, and reliable guided motion are required.
- 1,000mm body length with 80mm x 80mm base profile
- Belt-driven MTB Series actuator for high-speed linear motion
- One carriage guided by a single recirculating ball profile rail
- Two runner blocks per carriage for stable guided motion
- Steel-reinforced timing belt with adjustable tensioning
- 19mm female drive shaft for motor or gearbox integration
- Medium to high payload capability in a compact belt-driven platform
- Anodized aluminum construction helps reduce friction, noise, and vibration
- Stainless steel strip seals along magnetic strips to help block contamination
- Precision extrusions: flat perpendicular surfaces for accurate installation
- Suitable for packaging machinery, material handling, pick-and-place systems, Cartesian gantries, and general industrial automation
Motor Mount Kits
Key Features:
- Long travel lengths
- High acceleration, speeds, and rigidity
- Strong yet lightweight and corrosion-resistant
- Low friction, noise and vibration
- Anodized aluminum housing and carriage
- Steel reinforced belt capable of handling high loads
- Ball guided rail system
- Adjustable belt tension
- Multiple drive configurations
| MTB Series | ||||||
|---|---|---|---|---|---|---|
| Size | mm | 42 x 42 | 55 x 55 | 80 x 80 | 105 x 105 | |
| Base Weight | Kg | 1.60 | 4.80 | 6.00 | 12.50 | |
| MAX Load | Fx | N | 460 | 820 | 1,650 | 2,750 |
| Fy | N | 1,560 | 1,850 | 4,500 | 7,500 | |
| Fz | N | 1,560 | 1,850 | 4,500 | 7,500 | |
| MAX Moments | Mx | Nm | 20 | 25 | 80 | 120 |
| My | Nm | 55 | 120 | 450 | 700 | |
| Mz | Nm | 55 | 120 | 450 | 700 | |
| MAX Stroke Length | mm | 2,000 | 6,000 | 6,000 | 6,000 | |
| MIN Stroke Length | mm | 100 | 100 | 100 | 100 | |
| Add for 100 mm of Stroke | Kg | 0.25 | 0.37 | 0.90 | 1.50 | |
| MAX Speed | m/s | 3 | 3 | 3 | 3 | |
| Moment of Inertia | Ix | cm4 | 12 | 36 | 183 | 440 |
| Iy | cm4 | 15 | 45 | 226 | 535 | |
Application Fit
- High-Speed Pick-and-Place
- Packaging Equipment
- Large-Format Printing
- Bottling Lines
- Mail and Parcel Sorting
- Medical Testing Equipment
Selection Notes: Four profile sizes, 42 to 105 mm, with multiple drive configurations · Steel-reinforced belt with adjustable tension; anodized aluminium housing and carriage · T-slots along the extrusion for mounting and for sensor mounting · Motor mount kits and couplers available for NEMA and metric motor sizes · Limit switches must be used to stop the carriage reaching the end blocks
